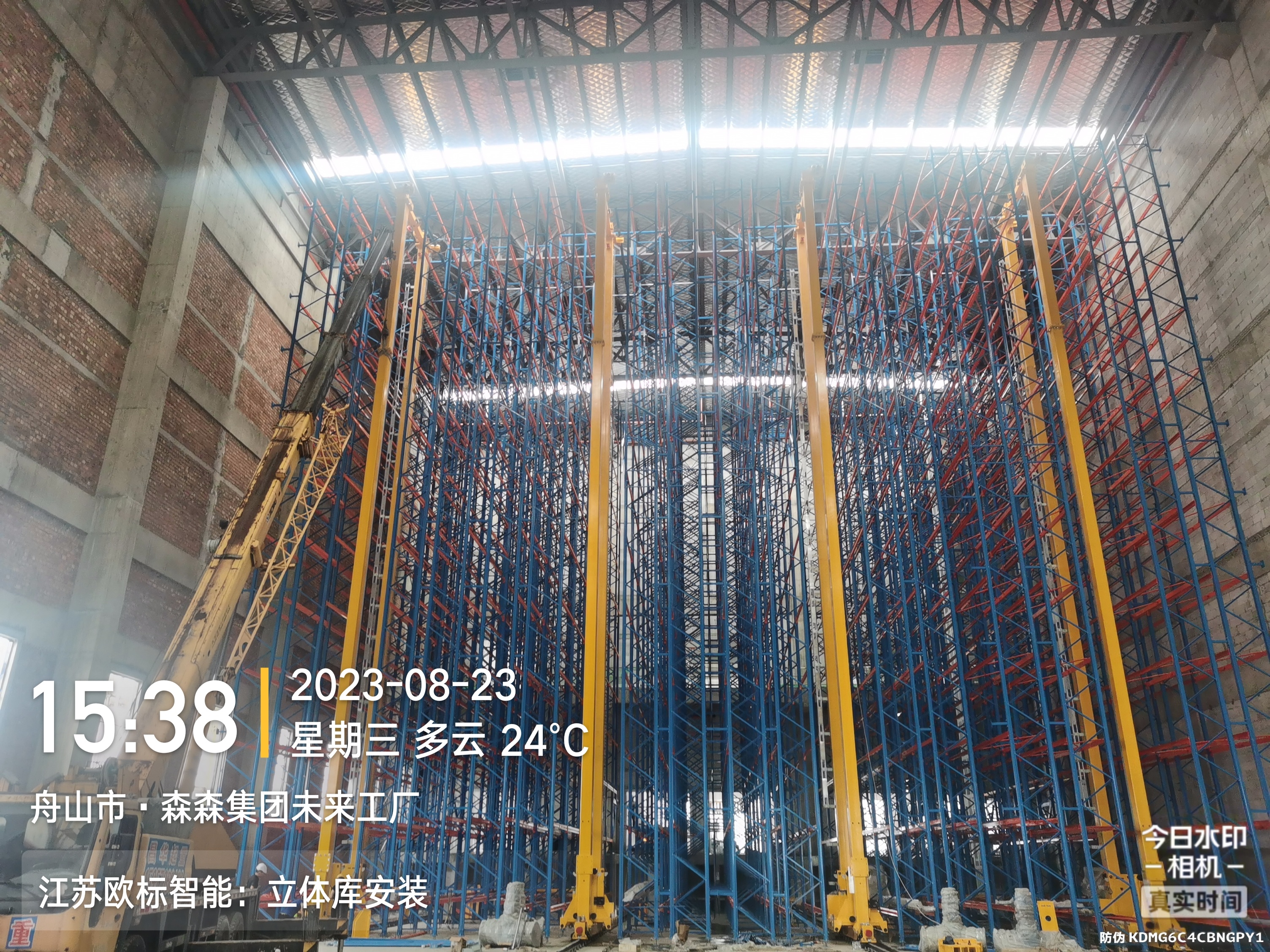

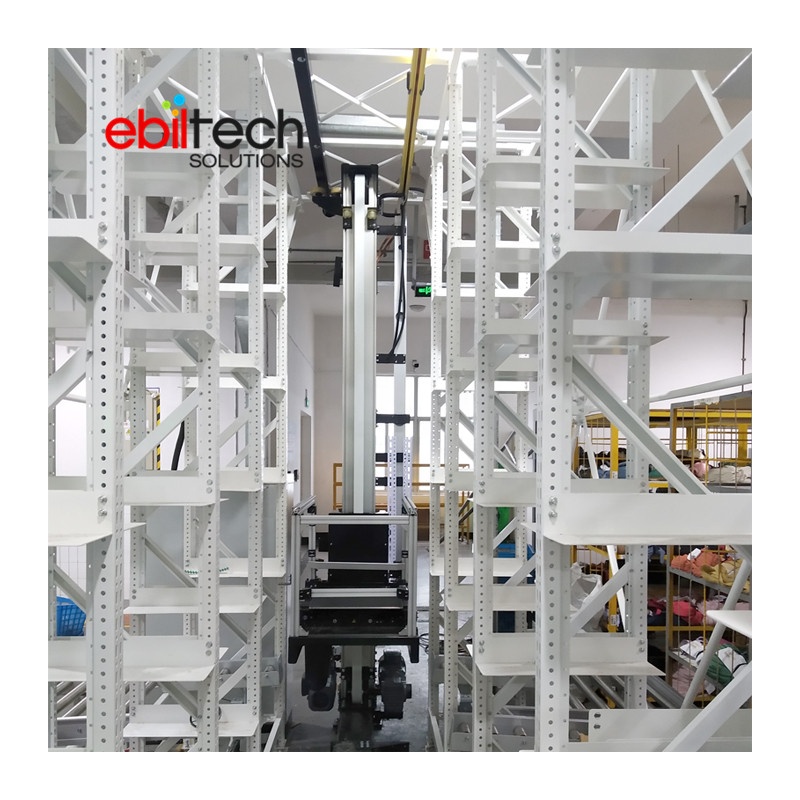

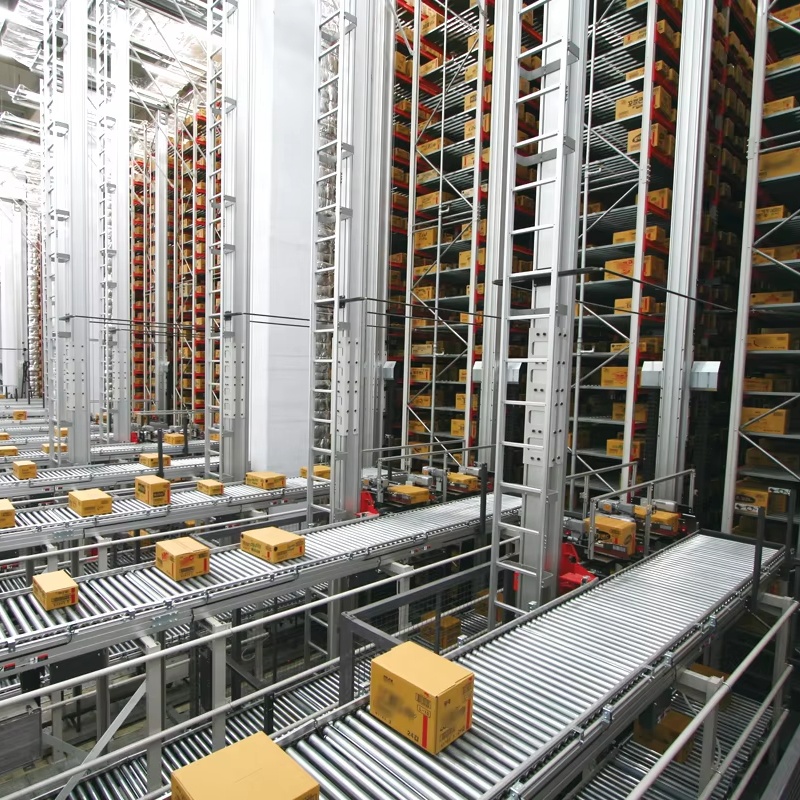

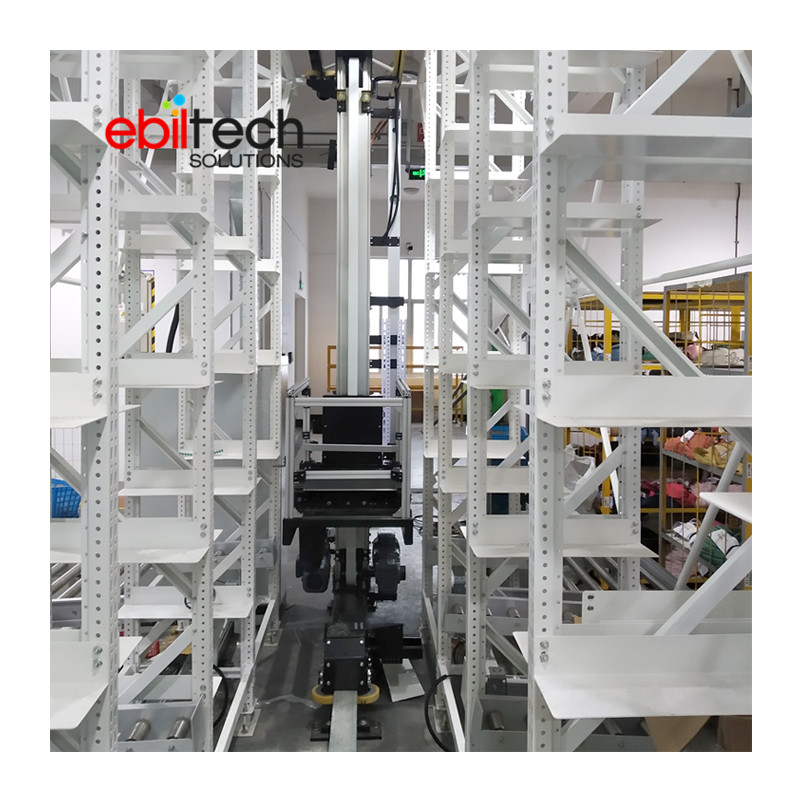

Automated Storage And Retrieval Racking System Miniload Asrs Storage
Product Description

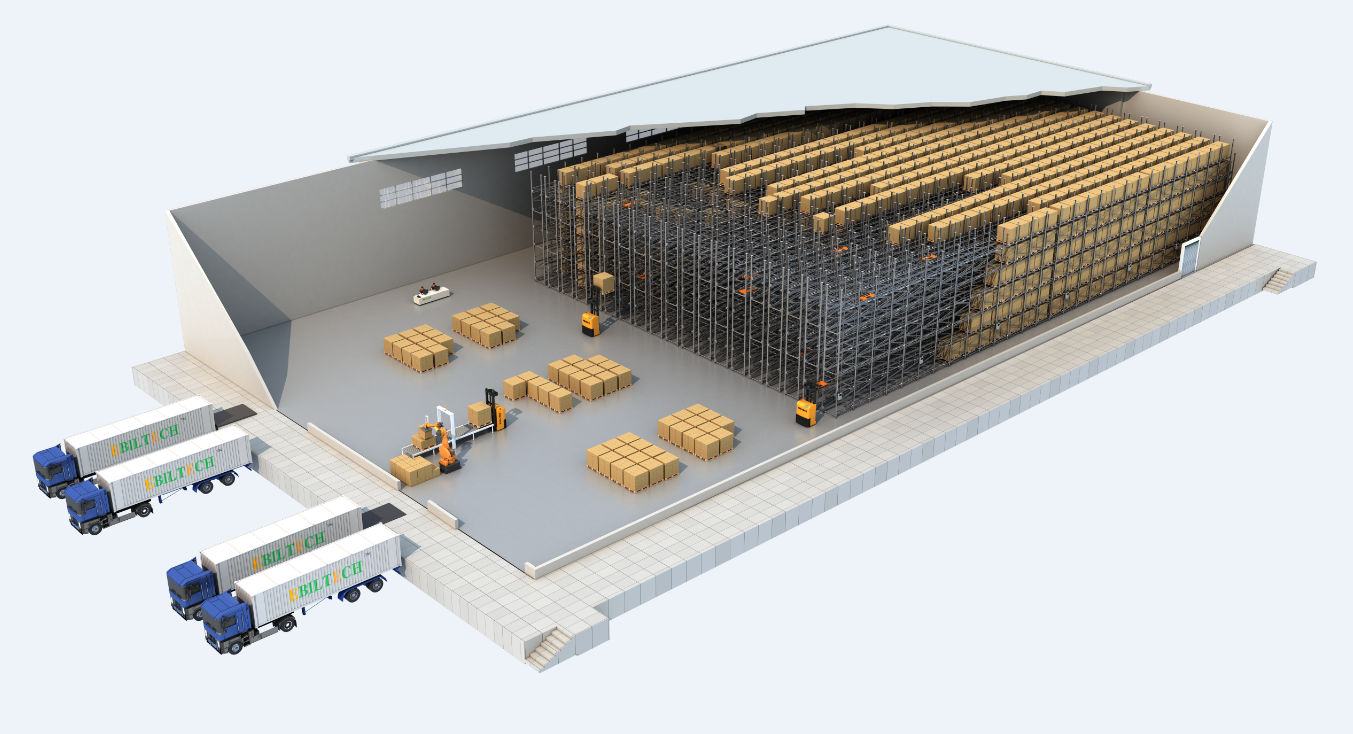

Radio Shuttle Racking Solution
- Increased volume ratio
- Higher warehouse-in/out efficiency than manual forklift
- Manual remote control, realizing semi-automatic warehouse in/out
- Out-of-stock mode: First in first out / First in last out
Specifications:
• Pallet size: L1200 x W1000 x H1150 mm | Weight: 1000kg/pallet
• Cargo space: 36 rows x 19 columns x 6 levels
• Total storage: 4,104 pallets
• Floor area of rack: 47m (L) x 23m (W) x 9m (H)
• Workshop floor area: 60m (L) x 26m (W) x 11m (H)
• Pallet size: L1200 x W1000 x H1150 mm | Weight: 1000kg/pallet
• Cargo space: 36 rows x 19 columns x 6 levels
• Total storage: 4,104 pallets
• Floor area of rack: 47m (L) x 23m (W) x 9m (H)
• Workshop floor area: 60m (L) x 26m (W) x 11m (H)

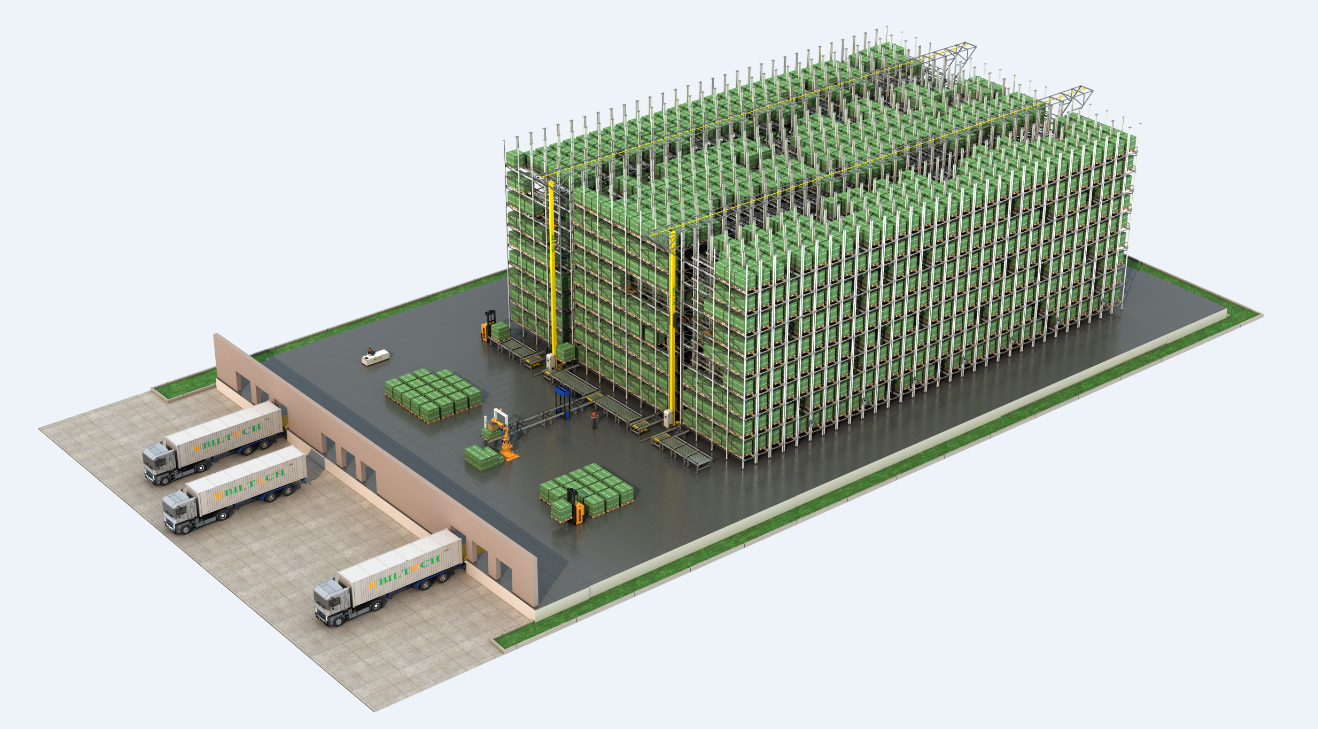

Stacker Crane + Pallet Runner System
Specifications:
• Pallet size: L1200 x W1200 x H1000 mm | Weight: 1000kg/pallet
• Cargo space: 22 rows x 31 columns x 9 levels
• Total storage: 6,138 pallets
• Floor area of rack: 43.5m (L) x 30m (W) x 13m (H)
• Workshop floor area: 58.5m (L) x 38m (W) x 14m (H)
• Pallet size: L1200 x W1200 x H1000 mm | Weight: 1000kg/pallet
• Cargo space: 22 rows x 31 columns x 9 levels
• Total storage: 6,138 pallets
• Floor area of rack: 43.5m (L) x 30m (W) x 13m (H)
• Workshop floor area: 58.5m (L) x 38m (W) x 14m (H)

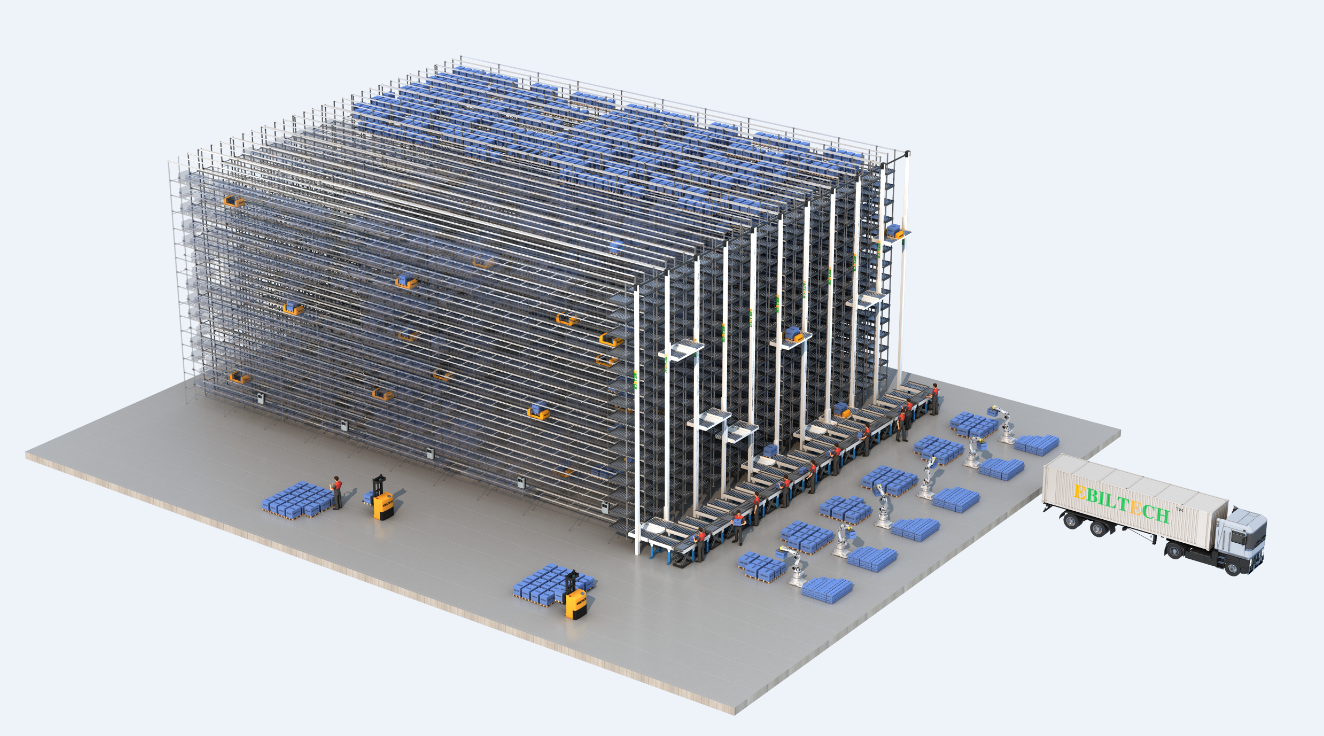

Multi Shuttle System Solution
Specifications:
• Box size: L600 x W400 x H280 mm | Weight: 35kg/box
• Cargo space: 29 rows x 19 columns x 15 levels
• Total storage: 16,530 boxes
• Floor area of rack: 30m (L) x 14m (W) x 10m (H)
• Workshop floor area: 40m (L) x 26m (W) x 12m (H)
• Box size: L600 x W400 x H280 mm | Weight: 35kg/box
• Cargo space: 29 rows x 19 columns x 15 levels
• Total storage: 16,530 boxes
• Floor area of rack: 30m (L) x 14m (W) x 10m (H)
• Workshop floor area: 40m (L) x 26m (W) x 12m (H)

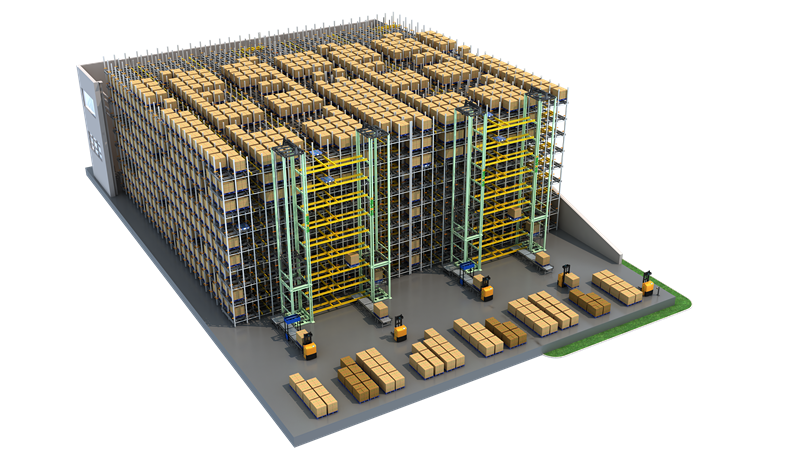

Four-way Shuttle System Solution
- Line side library of smart factory workshop
- Frozen / fresh food warehouse
- Logistics transition center
- Unmanned dark warehouse

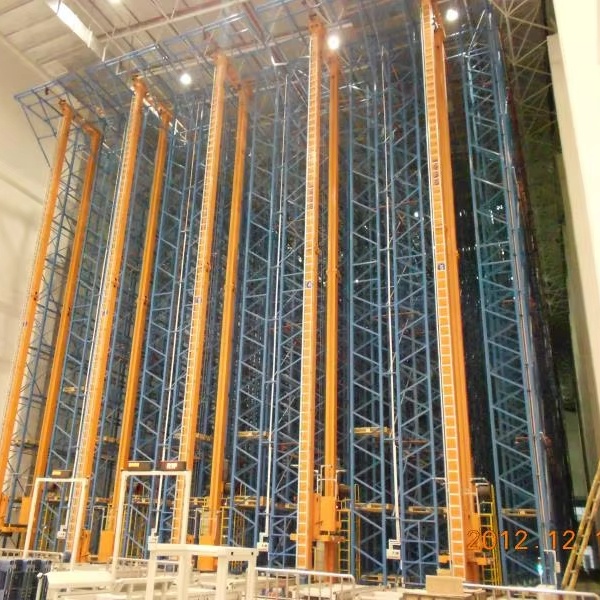

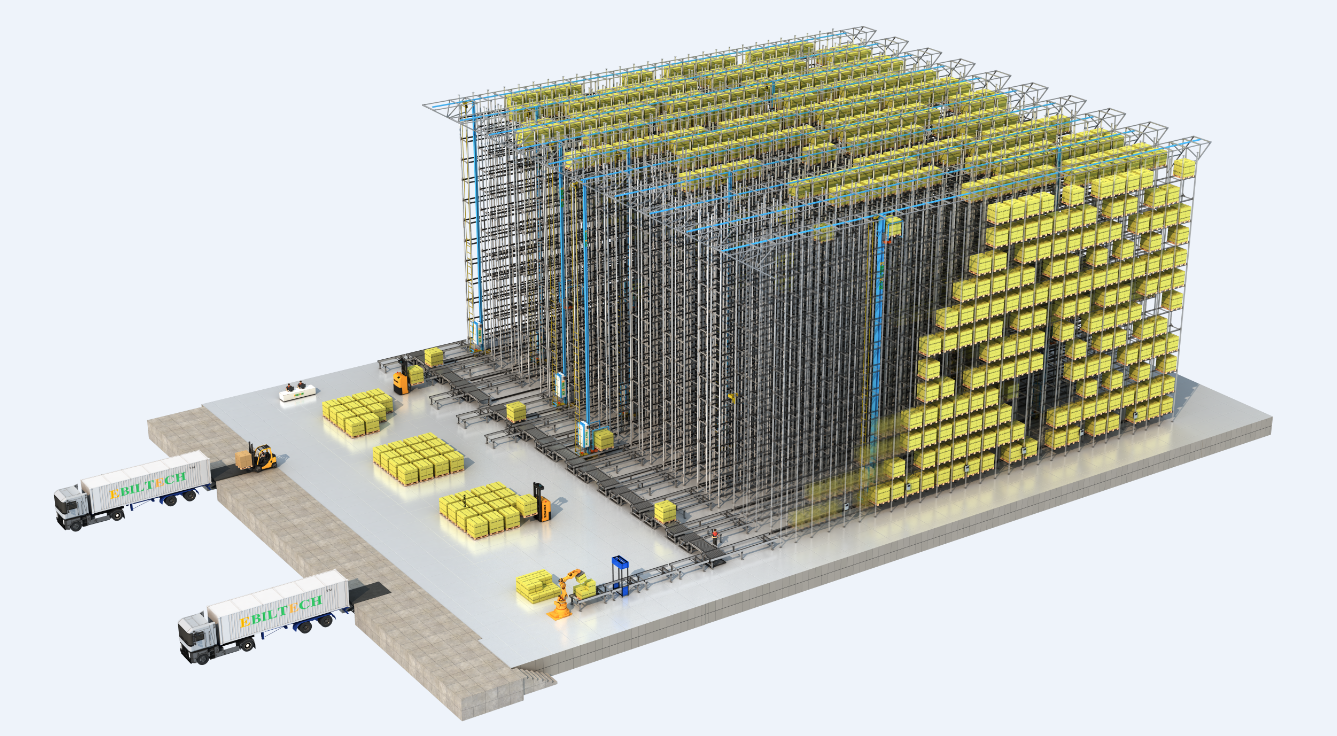

Stacker Crane System
Specifications:
• Pallet size: L1200 x W1200 x H1200 mm | Weight: 1000kg/pallet
• Cargo space: 27 rows x 20 columns x 12 levels
• Total storage: 6,480 pallets
• Floor area of rack: 43m (L) x 45m (W) x 19m (H)
• Workshop floor area: 65m (L) x 55m (W) x 20m (H)
• Pallet size: L1200 x W1200 x H1200 mm | Weight: 1000kg/pallet
• Cargo space: 27 rows x 20 columns x 12 levels
• Total storage: 6,480 pallets
• Floor area of rack: 43m (L) x 45m (W) x 19m (H)
• Workshop floor area: 65m (L) x 55m (W) x 20m (H)

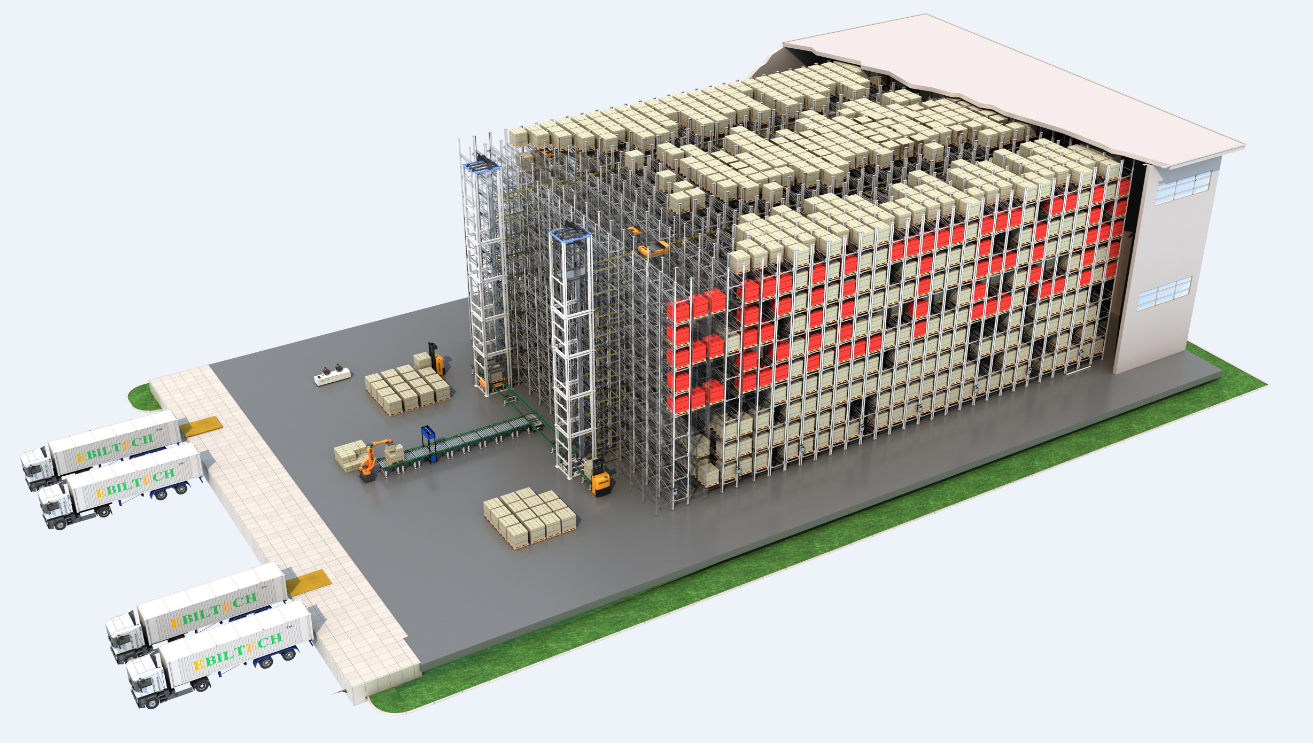

Primary-Secondary Shuttle Carrier Solution
Specifications:
• Pallet size: L1200 x W1200 x H1000 mm | Weight: 1000kg/pallet
• Cargo space: 22 rows x 31 columns x 9 levels
• Total storage: 6,138 pallets
• Floor area of rack: 43.5m (L) x 30m (W) x 13m (H)
• Workshop floor area: 58.5m (L) x 38m (W) x 14m (H)
• Pallet size: L1200 x W1200 x H1000 mm | Weight: 1000kg/pallet
• Cargo space: 22 rows x 31 columns x 9 levels
• Total storage: 6,138 pallets
• Floor area of rack: 43.5m (L) x 30m (W) x 13m (H)
• Workshop floor area: 58.5m (L) x 38m (W) x 14m (H)

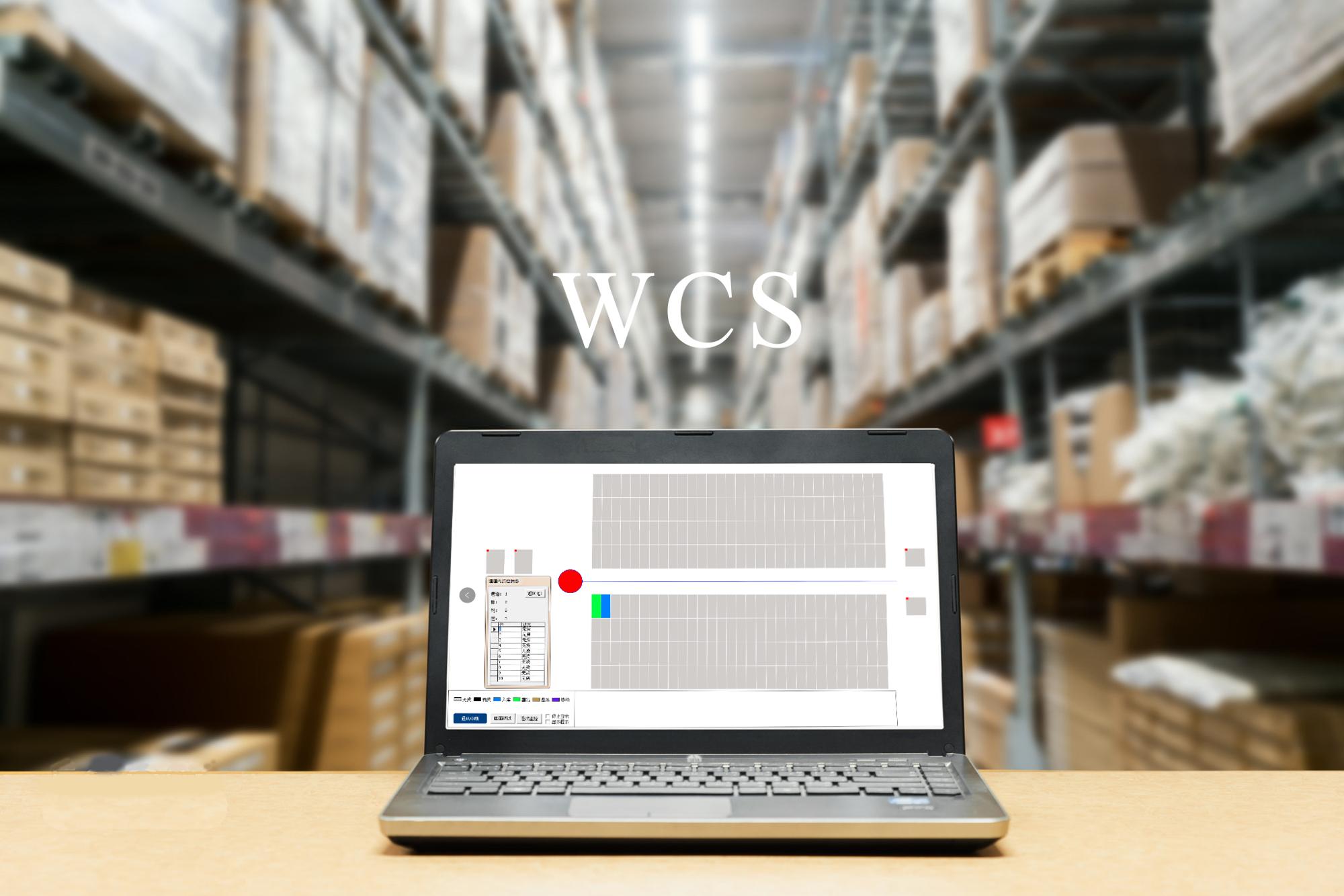

Warehouse Control System (WCS)
The Warehouse Control System (WCS) serves as a bridge between the Warehouse Management System (WMS) and a broad range of material handling equipment such as conveyor systems, automated storage and retrieval systems, carousels, sorters, palletizers and so on.
Acting as a "hub", the WCS is responsible for keeping everything running smoothly and maximizing the efficiency of material handling systems and subsystems.
Frequently Asked Questions
Q1: Are you a distributor or manufacturer?
We are a professional and leading manufacturer with nearly 20 years of experience. We produce and export high-quality pallet racking, Multi-shuttle systems, Radio shuttle racking, and ASRS, all of which enjoy a high reputation among our customers. Our annual production capacity is 100,000 tons of rack components and 1,000 units of shuttle cars.
Q2: What makes you different from competitors?
1) Expert R&D Team: We have more than 40 mechanical, electrical, and software engineers. EBILTECH attaches great importance to product innovation and R&D, holding over 60 national patents and independently developed WMS/WCS systems.
2) Excellent Service: We promise to respond with a quotation within 24 hours (sometimes within the hour). Direct export office hotline: 0086-25-52757208.
3) Quick Manufacturing: For normal orders, we guarantee production within 20-30 days according to formal contract agreements.
2) Excellent Service: We promise to respond with a quotation within 24 hours (sometimes within the hour). Direct export office hotline: 0086-25-52757208.
3) Quick Manufacturing: For normal orders, we guarantee production within 20-30 days according to formal contract agreements.

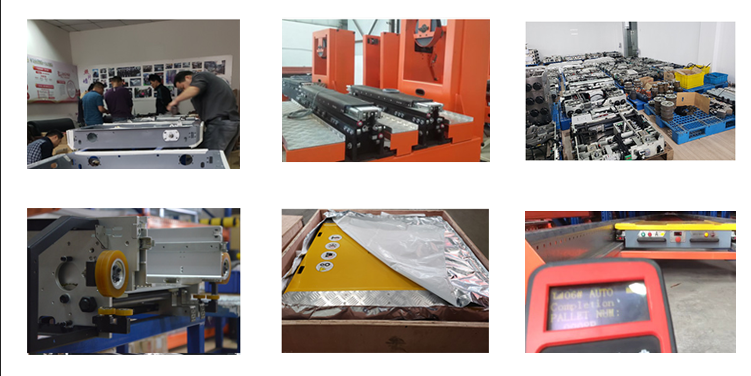

Q3: What installation and debugging services do you provide?
We have installation teams with rich overseas experience. For radio shuttle cars, we send engineers onsite for debugging and operational training. For racking systems, we can execute installation through our own team or assign engineers to guide your local team. We have successfully completed projects across Southeast Asia, America, and Europe.
Q4: What is the Minimum Order Quantity (MOQ)?
Normally the MOQ is one 20ft container. However, larger order quantities come with more competitive pricing.
Q5: What are your accepted payment terms?
We accept T/T (Telegraphic Transfer) and L/C (Letter of Credit).
