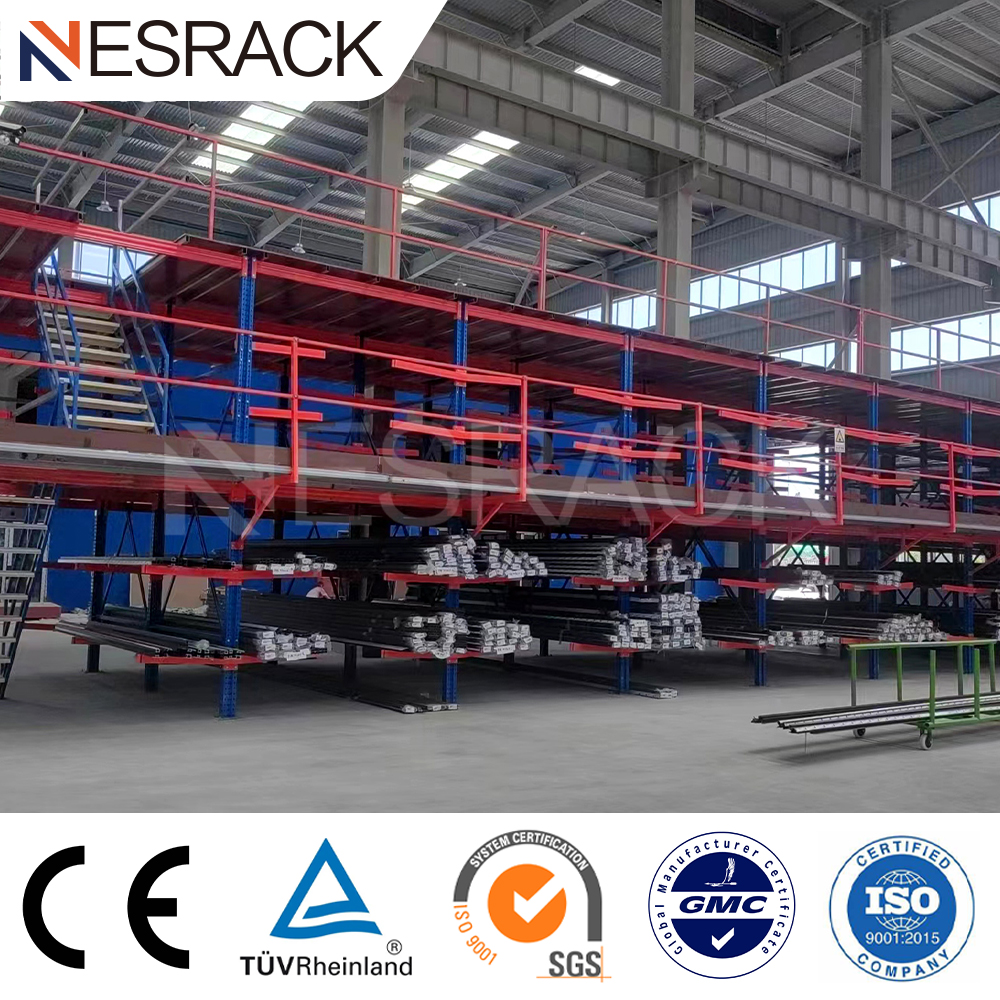

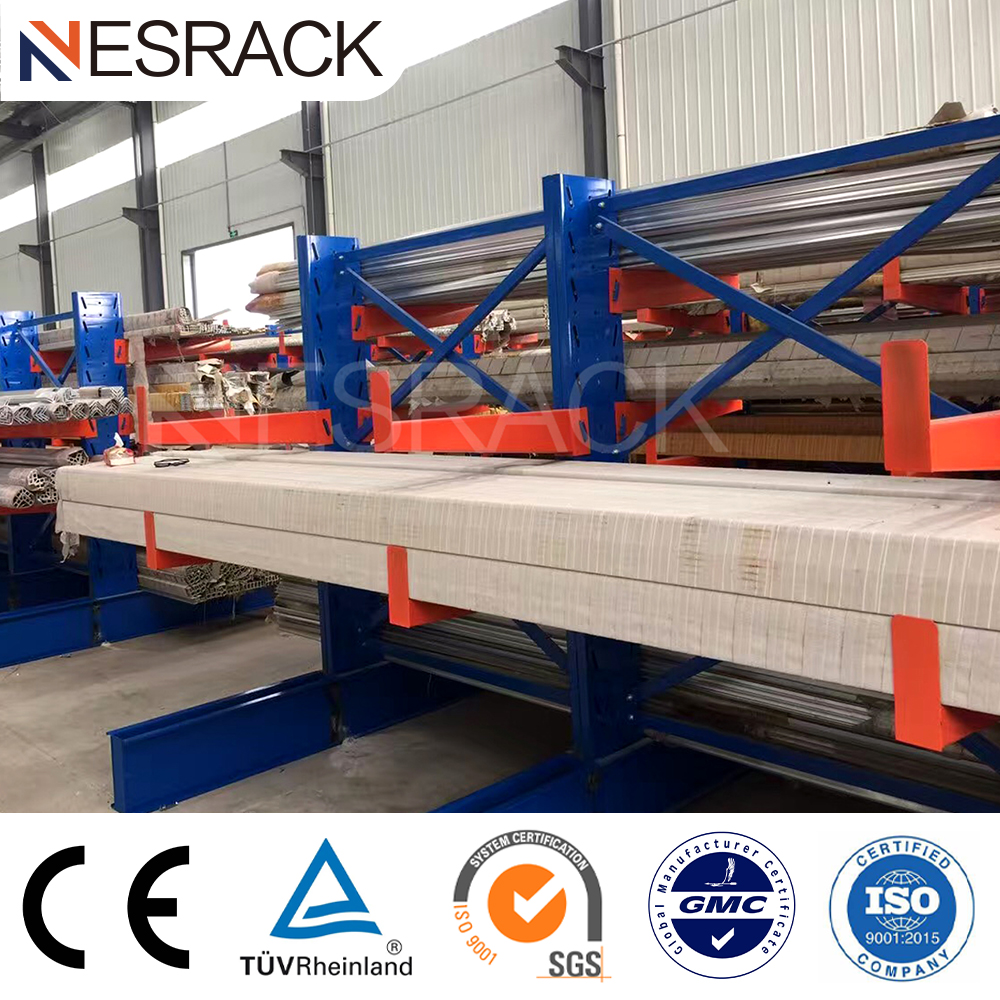

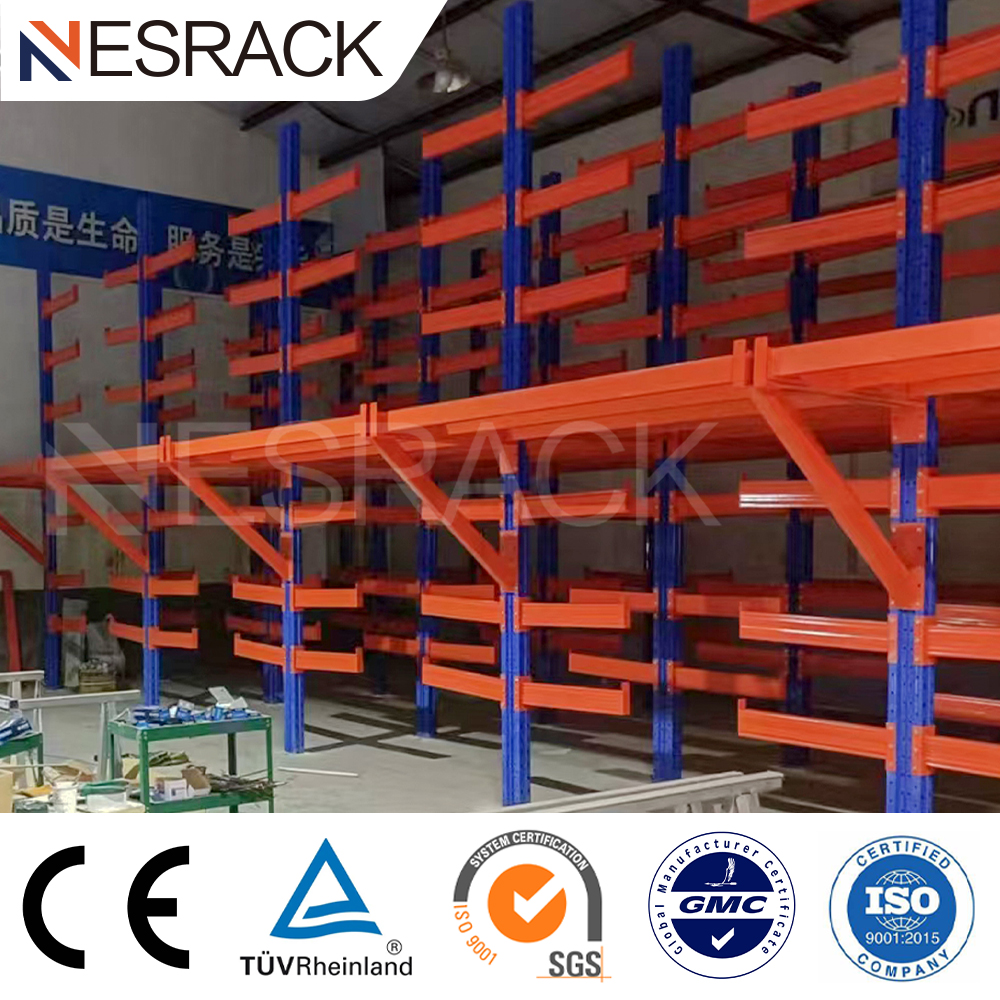

Heavy-Duty 6 Meter High Warehouse Cantilevered Stacking Racks and Shelves Raw Material Storage Rack
Product Description
Product Specifications
| Product Name | Heavy Duty Cantilever Racks | Brand Name | NESRACK |
| Place of Origin | Shandong, China | Usage | Warehouse Storage |
| Type | Selective Pallet Rack | Application | Goods Storage |
| Material | Steel | Color | Blue, Orange |
| Weight Capacity | 2000-5000kg / layer | Surface Treatment | Powder Coating |
| Height | Max 12,000 mm | Width | 60/80 cm or Customized |
| Feature | Corrosion Protection | Structure | Assembled |
| Certification | ISO9001 / CE | OEM & ODM | Supported |
| Size | Customer Size | Packing | Customized Standard Export |
Product Description
Heavy Duty Cantilever Rack Pallet Racking Industrial Warehouse Shelving

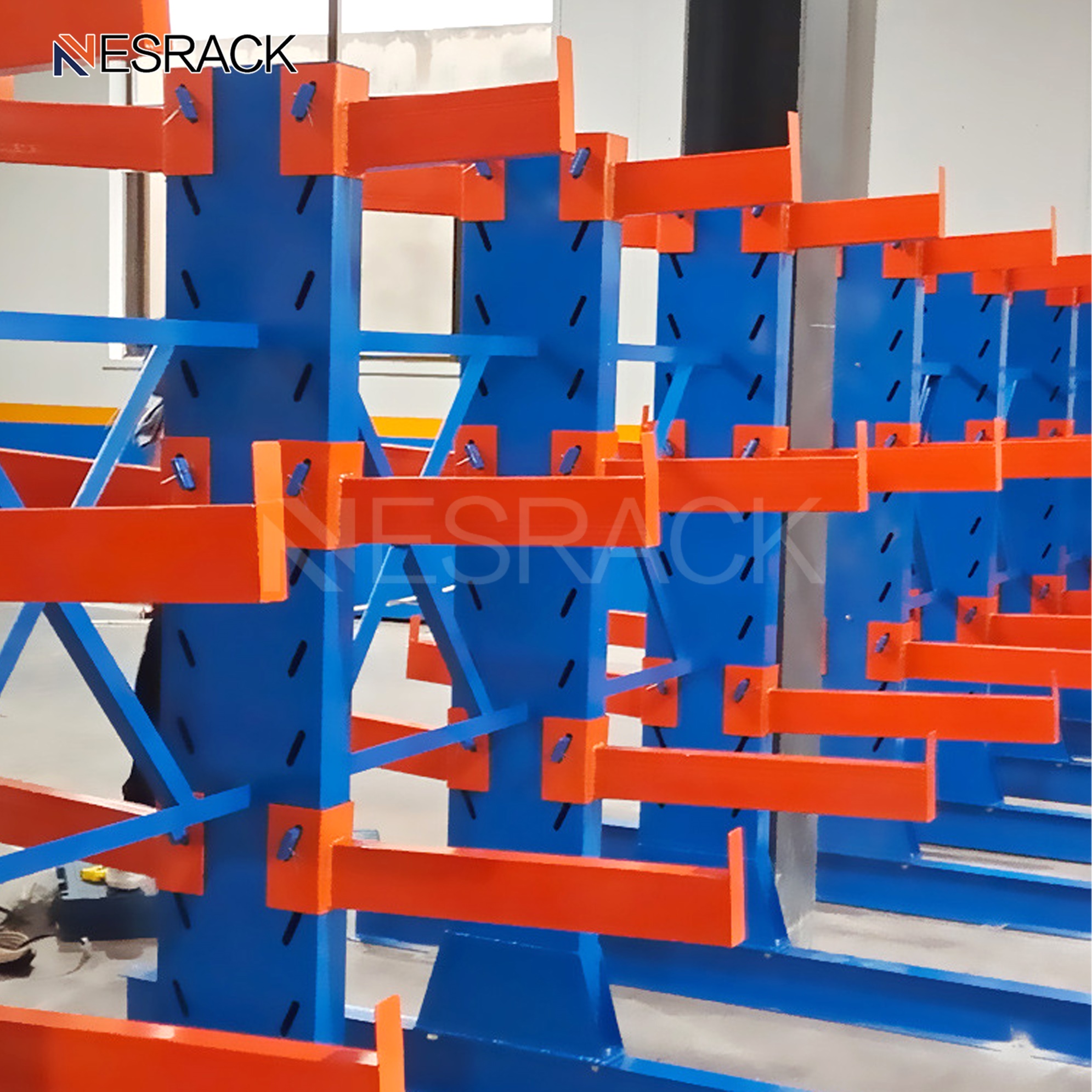

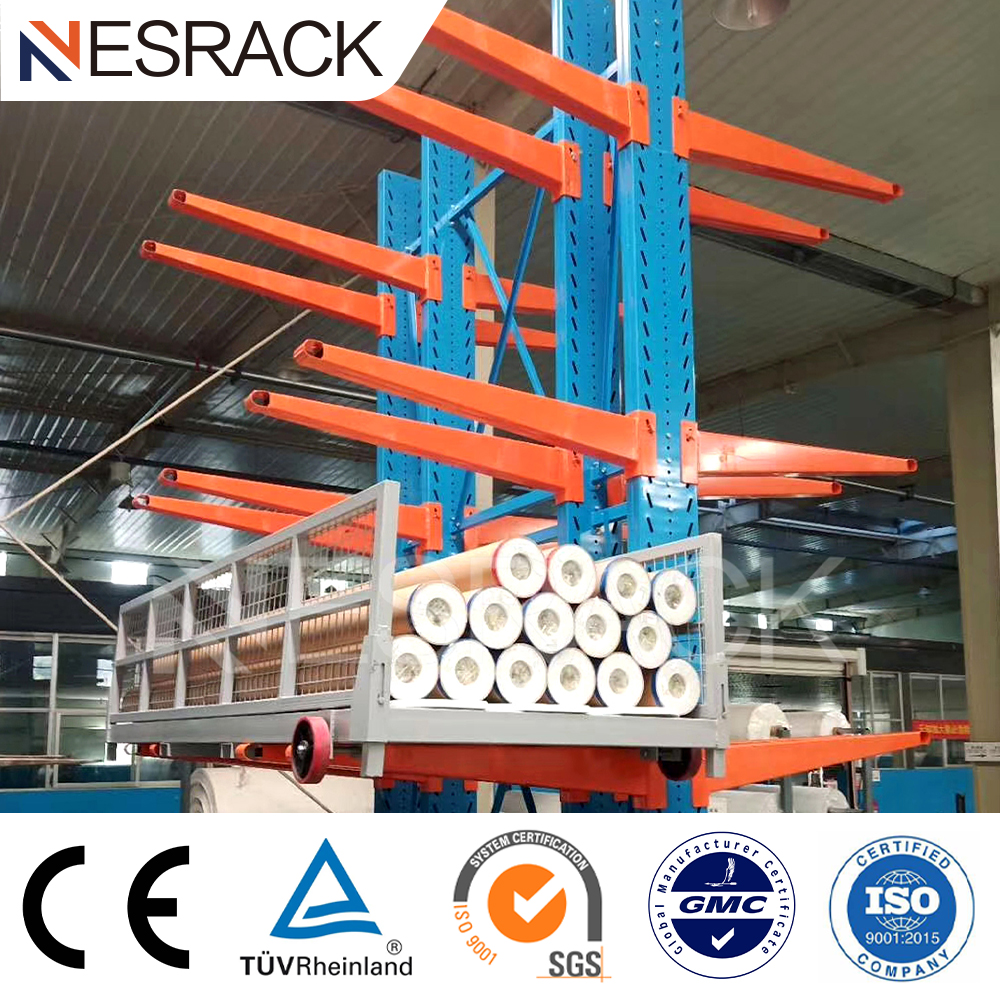

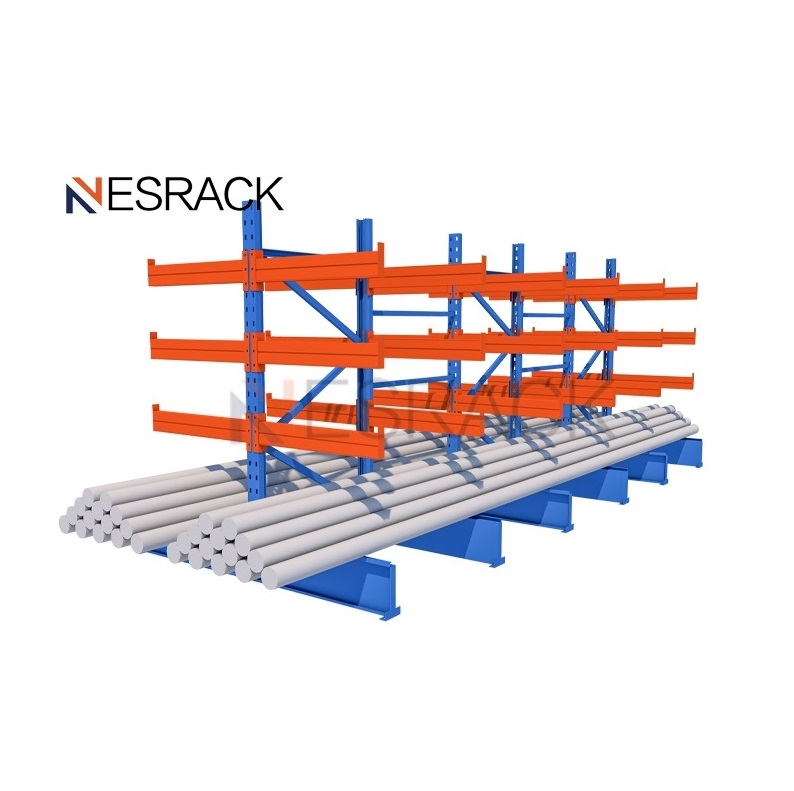

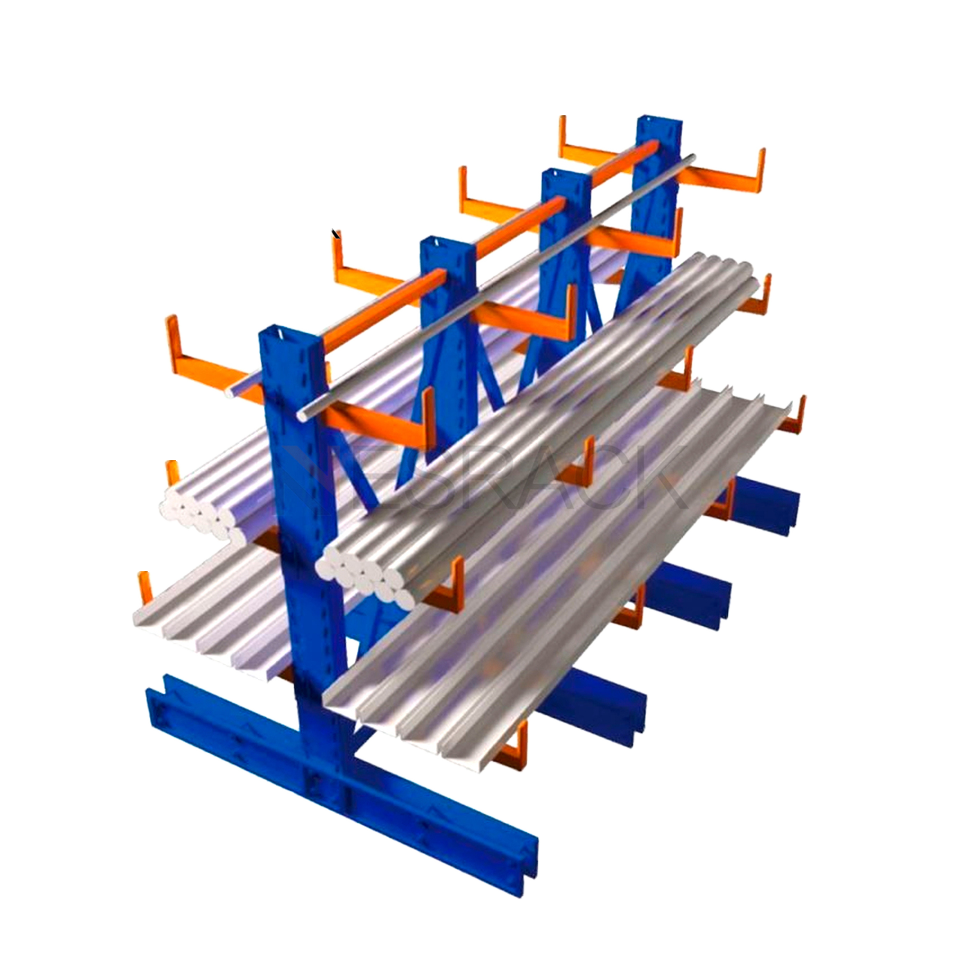

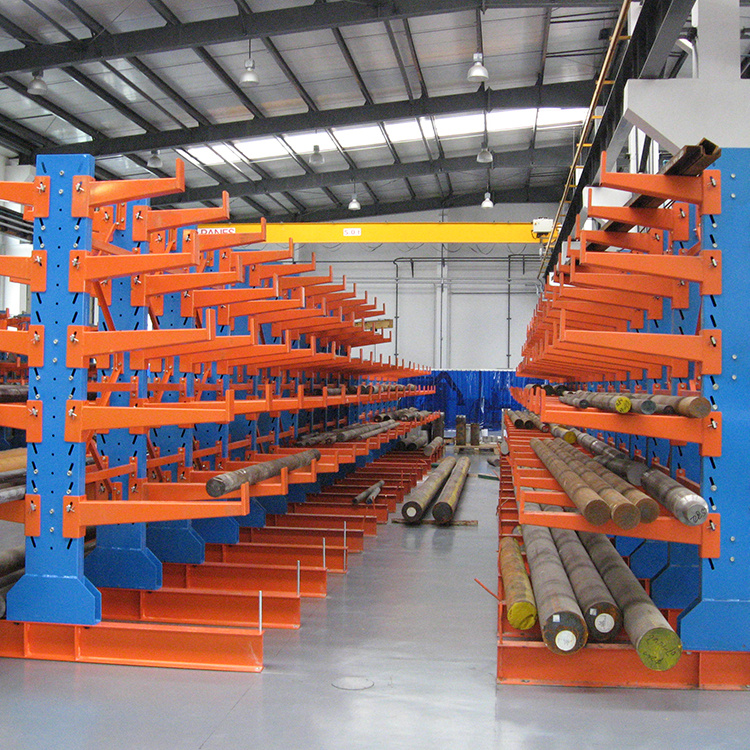

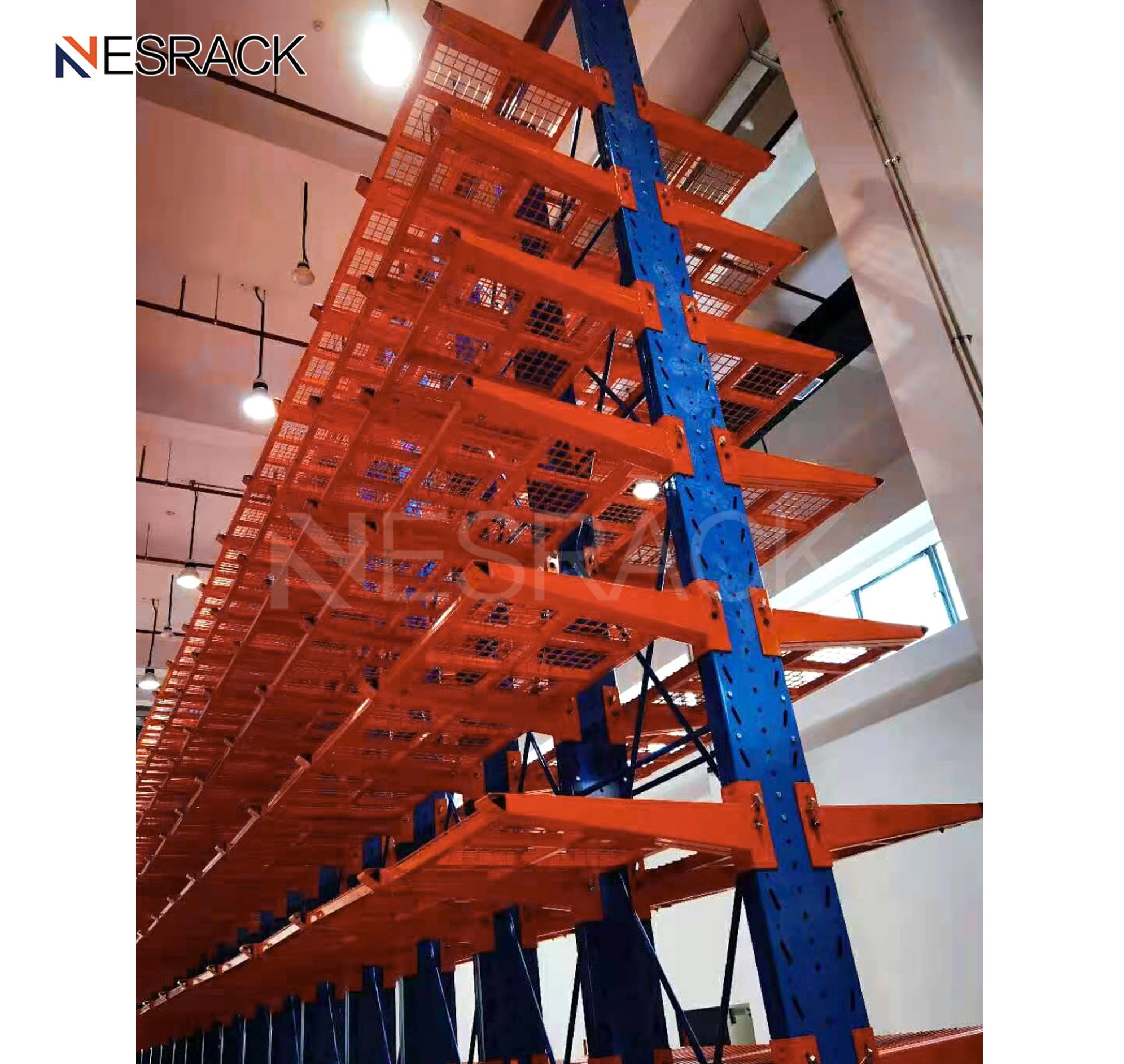

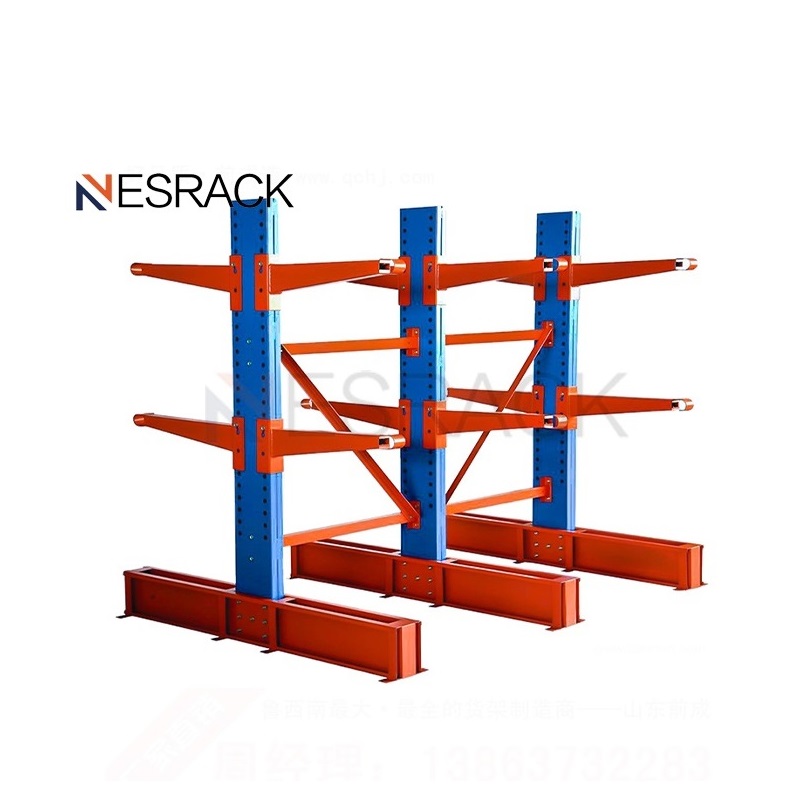

Cantilever Rack
Cantilevered shelves are suitable for storing long-term and irregular goods. The front cantilever has a light structure and strong load-carrying capacity, which can greatly improve the utilization and working efficiency of the warehouse when storing irregular or special length materials.

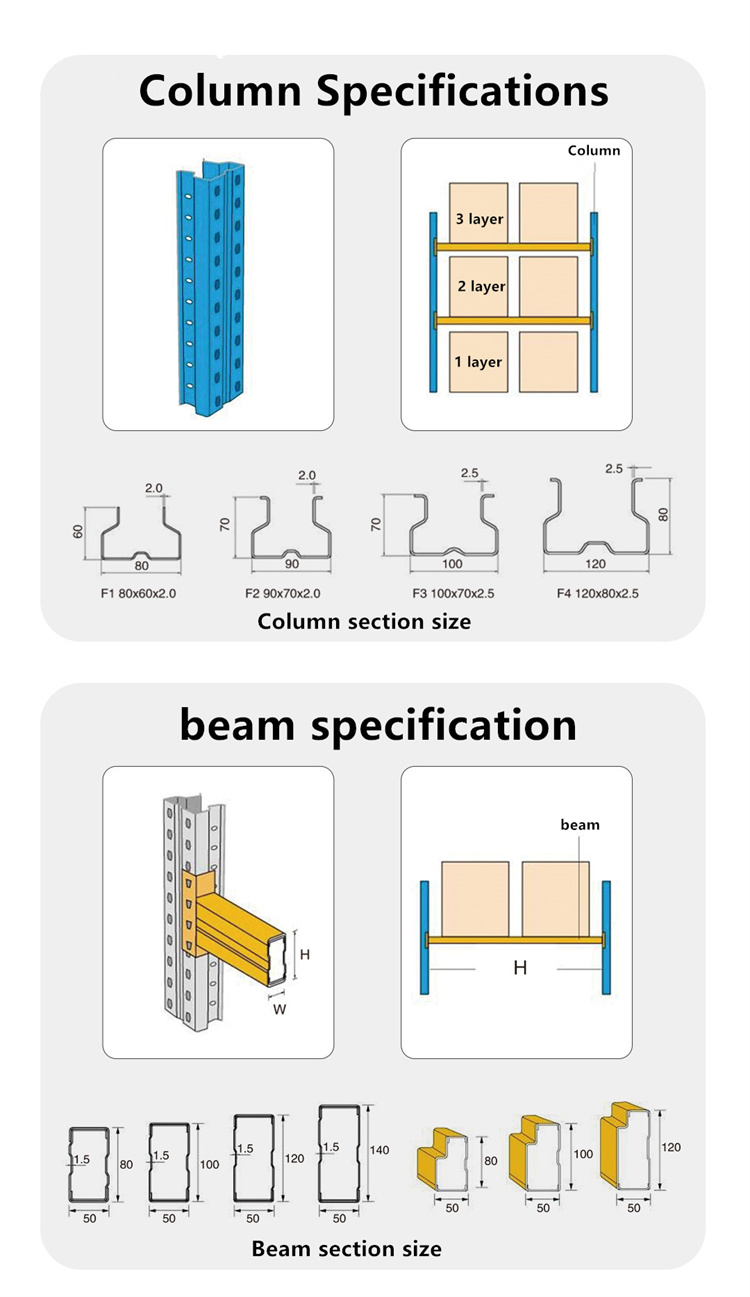

Column specification and bearing capacity
01
Easy installation and reasonable structure.
02
High-precision diamond-shaped hole design, plug-in structure, adjustable height up and down.
03
Fix the columns and beams to prevent the beams from falling due to improper operation.
04
Increase the shelf load and adapt to more types of pallets.
| Column height (mm) | 3 layers beam | 4 layers beam | 5 layers beam |
|---|---|---|---|
| 2000 | 3500 | 2500 | 2100 |
| 2500 | 3500 | 2500 | 2100 |
| 3000 | 4000 | 3600 | 2900 |
| 3500 | 3100 | 2400 | 2100 |
| 4000 | 3100 | 2400 | 2000 |
| 4500 | 3000 | 2400 | 2000 |
| 5000 | 3000 | 2300 | 2000 |
Main Components
Frame
The frame of European 50mm pallet rack is connected by two uprights, horizontal bracing, diagonal bracing, two base plates and screw.

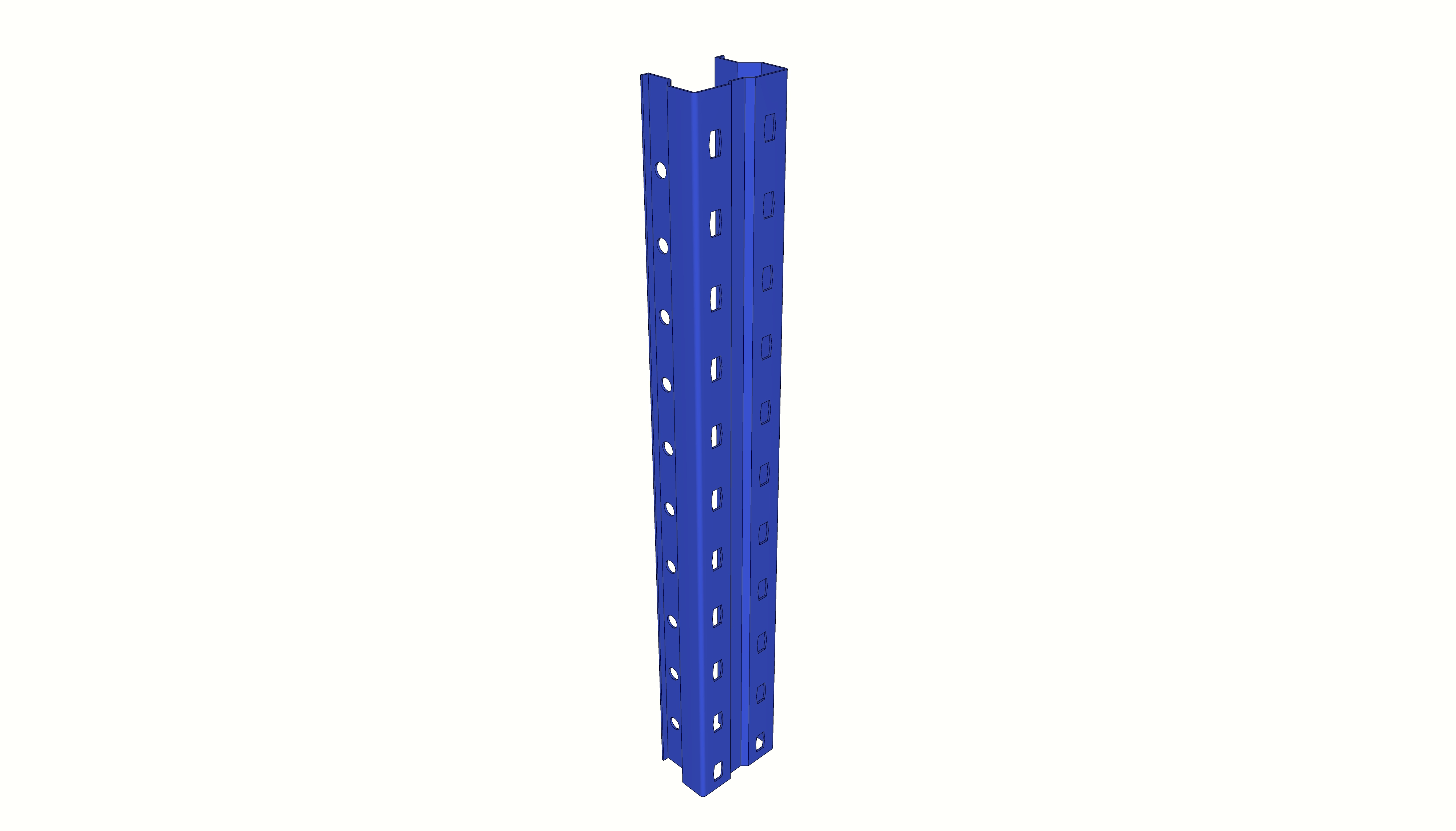

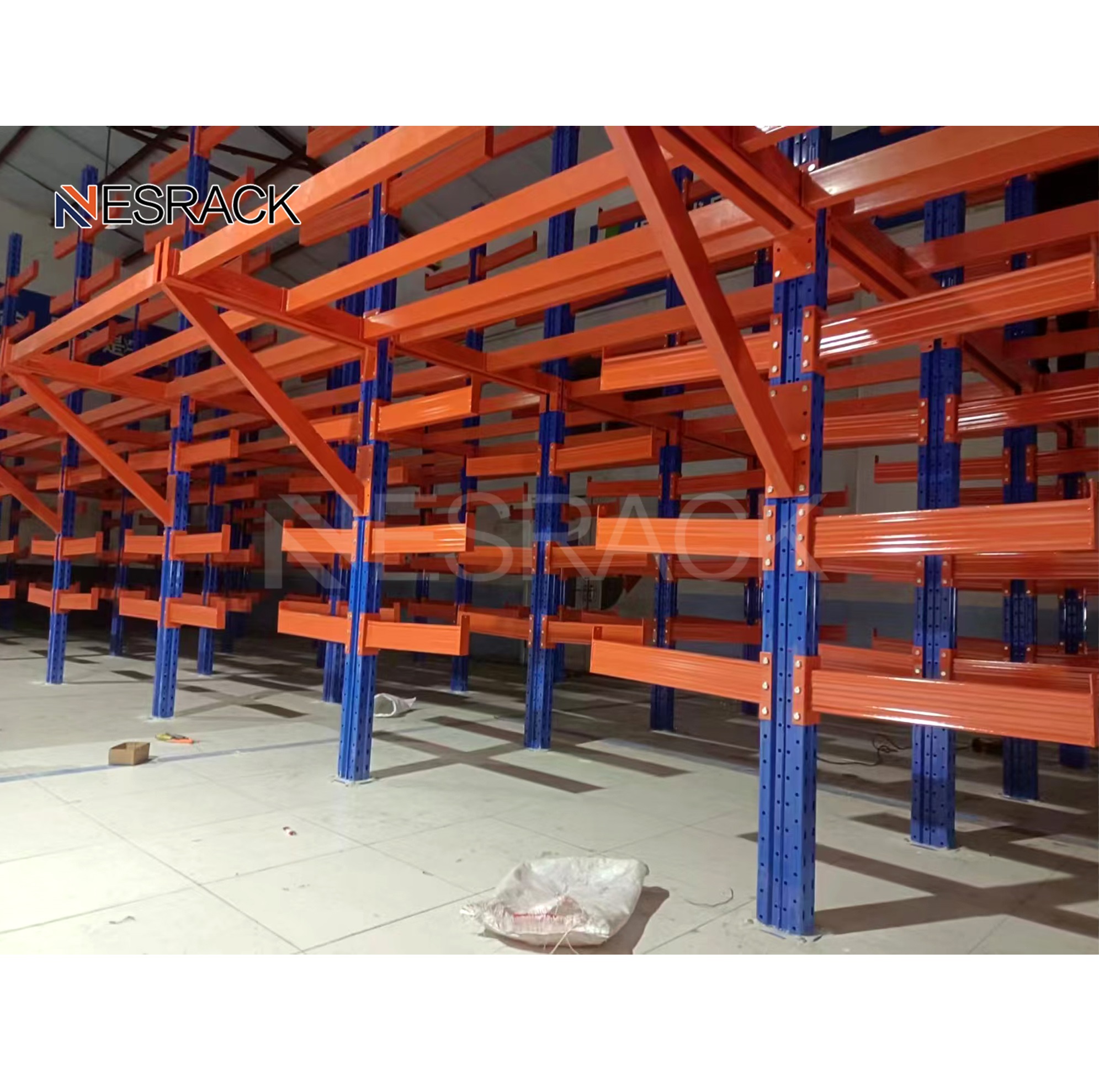

Upright
H-bracing and D-bracing
Base plates

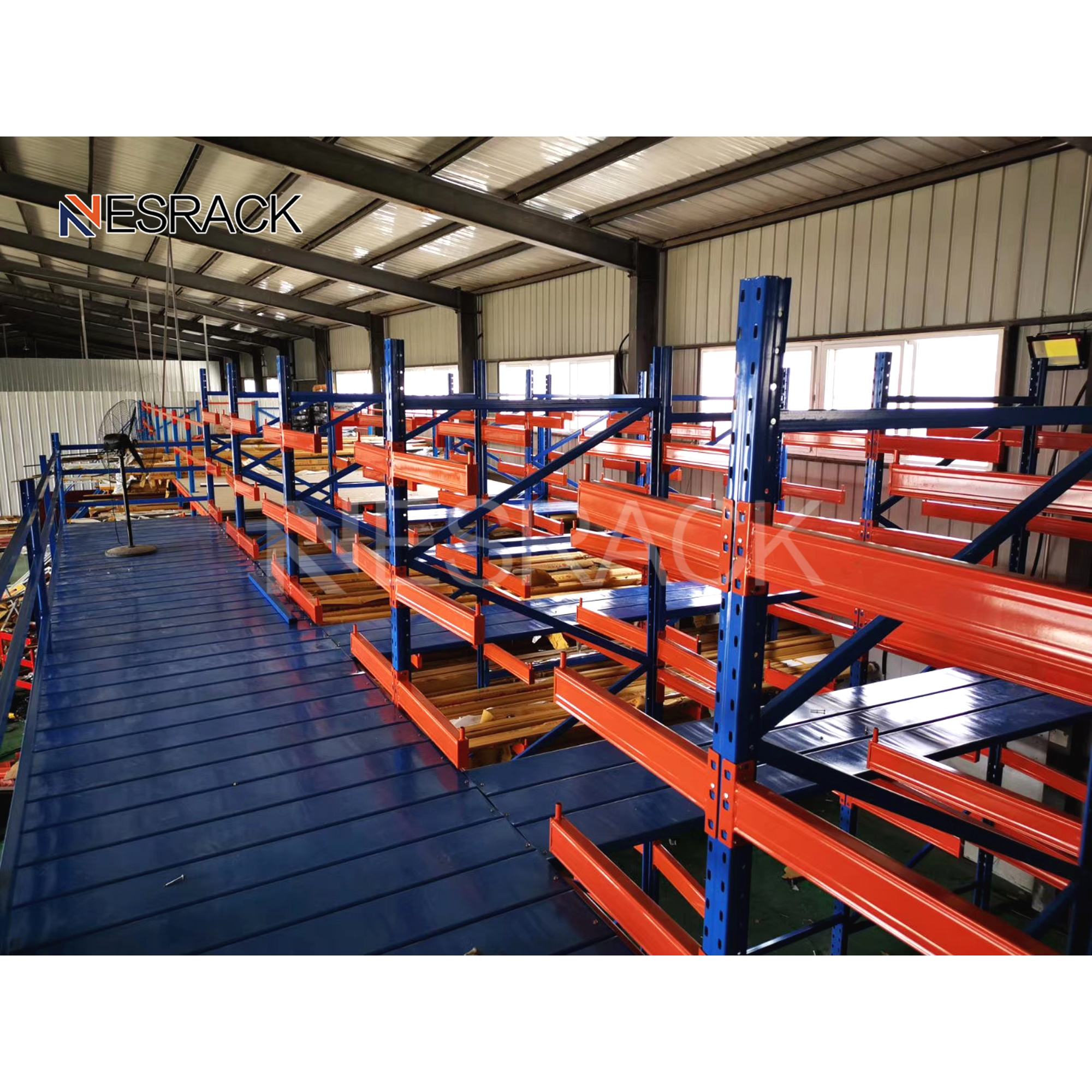

Beam
The longest beam can be 4.5mm, and the max loading capacity can be 4000kg/per level, other specifications please contact us for details.

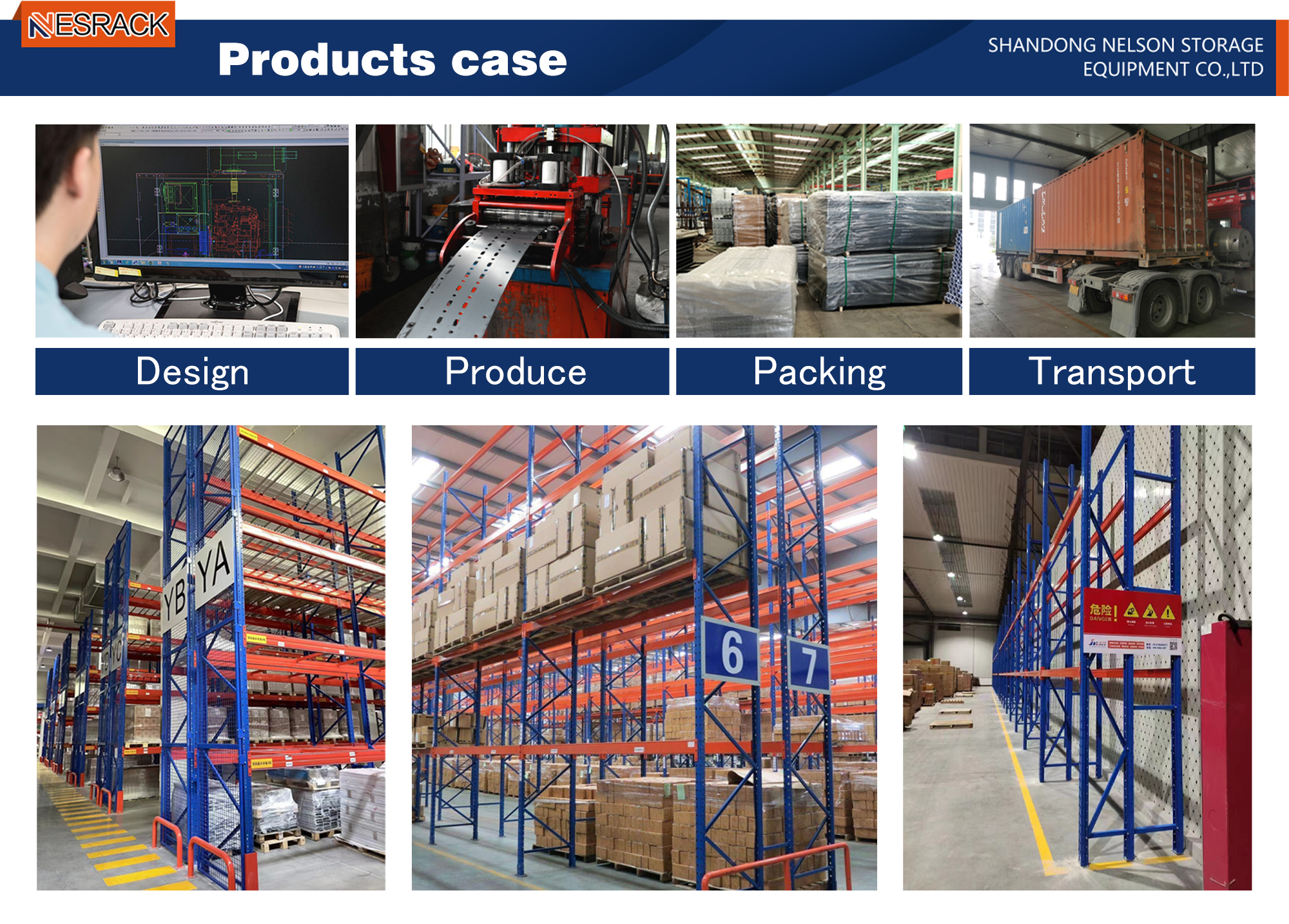

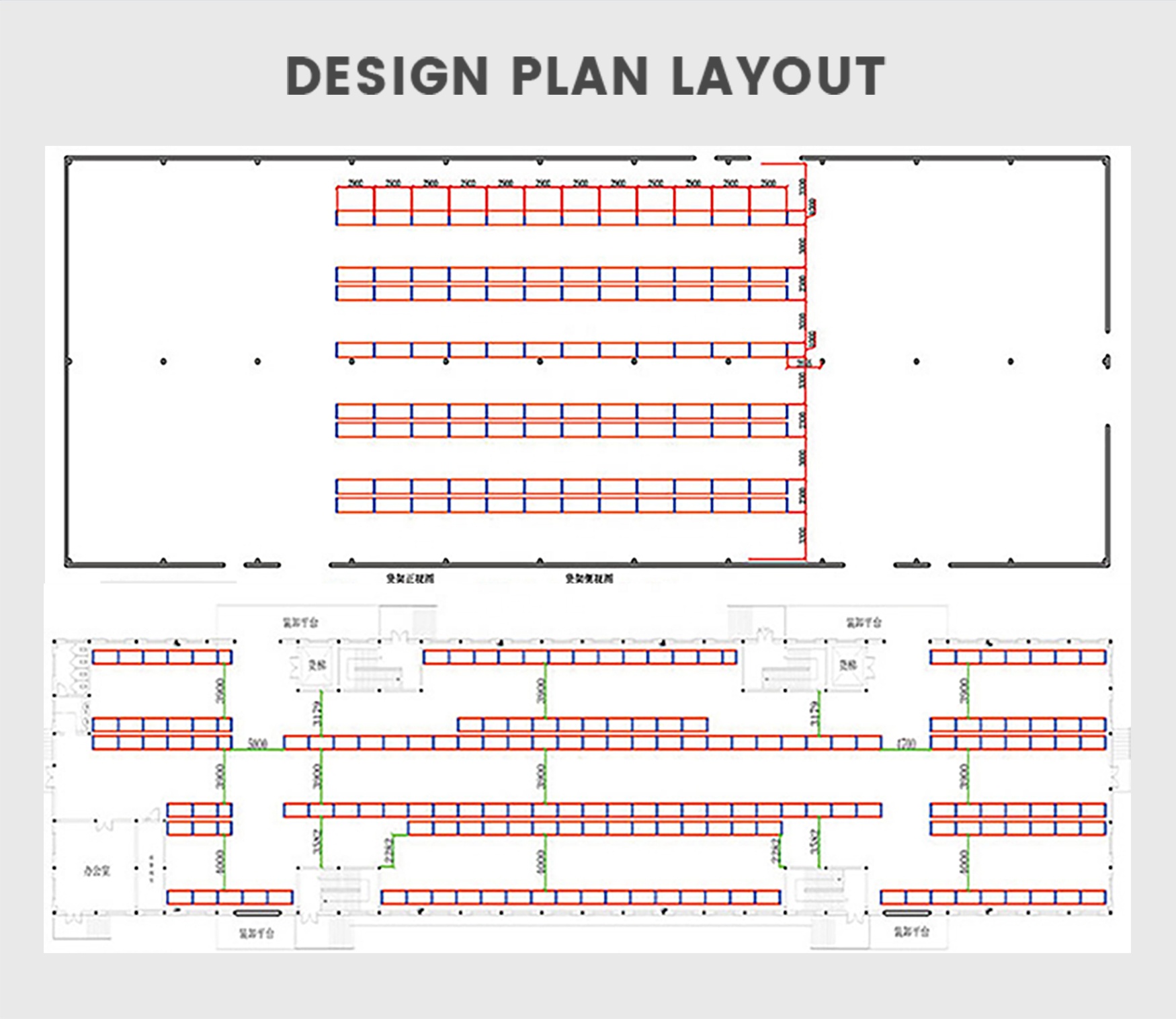

Success Cases
Exhibitions

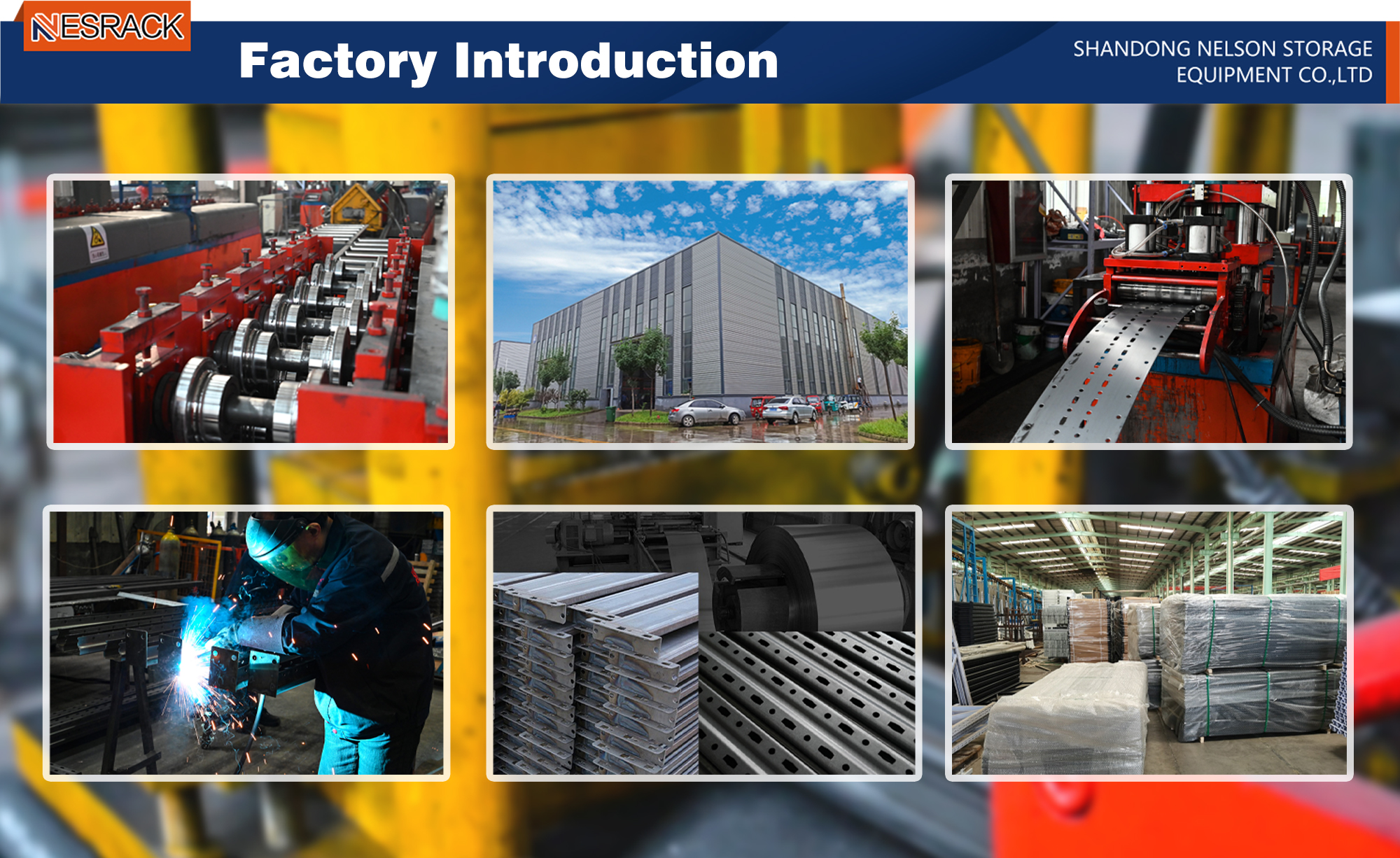

Company Profile
SHANDONG NELSON STORAGE EQUIPMENT CO., LTD has focused on top quality storage and logistics equipment for over 15 years in China. With 15 years of industry experience, we have become an excellent pacesetter in the warehouse racking industry. Today, NELSON has been one of the producers of quality pallet racking and other racking equipments, such as: drive-in rack, radio shuttle rack, cantilever rack, mezzanine, steel platform, medium duty shelving, light duty shelving. NELSON Racking is located in Chinese beautiful city Jinan. As a global supplier in the heavy duty, medium duty, light duty racking equipment and related accessories, NELSON Racking is to create added value for customers around the world.
Our Partners
Packing & Delivery
Standard Export Packaging
For international shipping, it depends on the product quantity and delivery address. For a specific estimate, please provide those details so that I can quote the most cost-effective option.
Frequently Asked Questions
Q: Why choose us?
A: Professional design team, adequate production capacity, got ISO and CE certificates, and comply with AS4084, RMI, and FEM standards.
Q: What is the material used for your products?
A: The material we choose is high grade Q235 and Q345 steel.

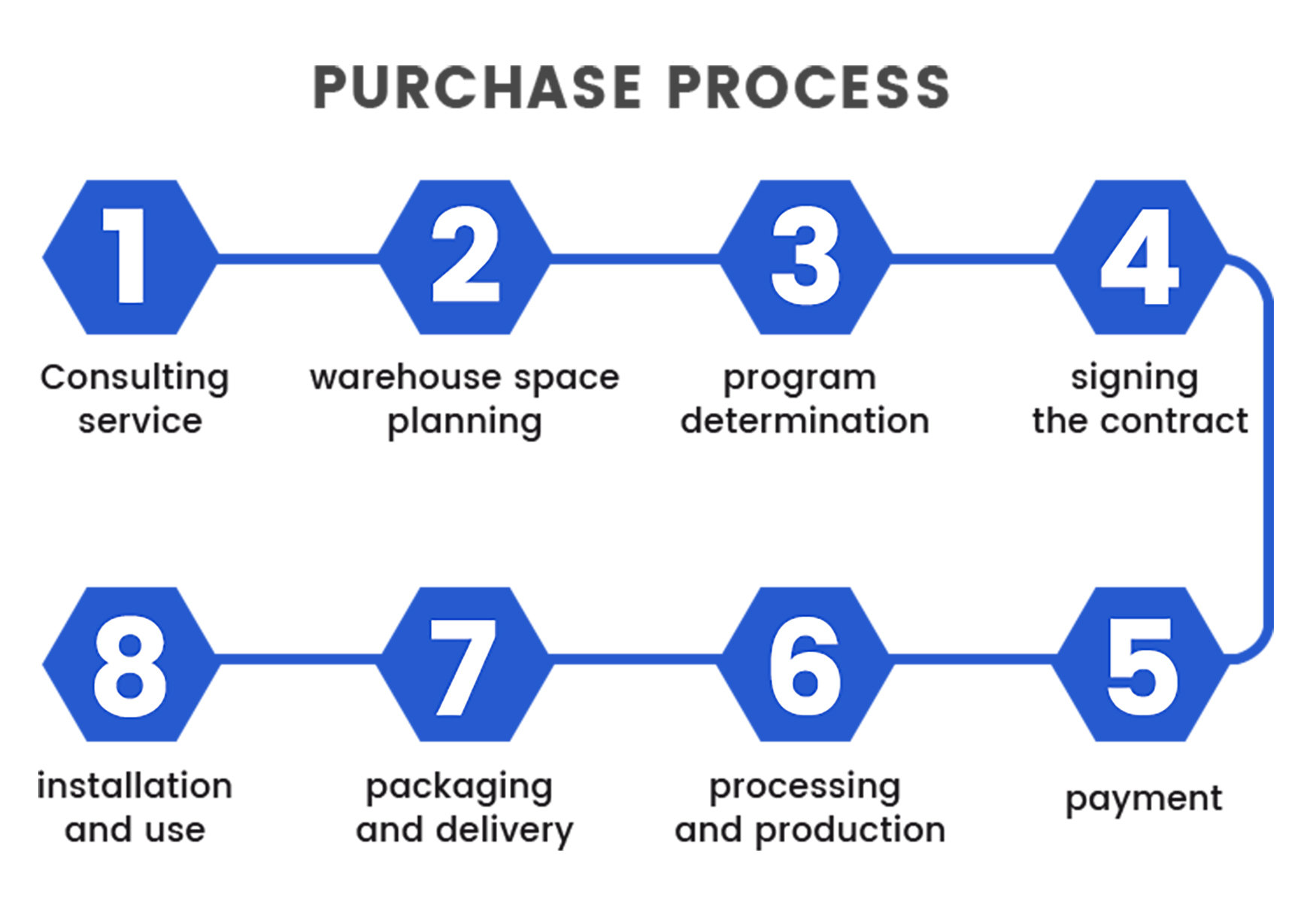

Q: How to purchase your product?
A: Design drawing → Confirm drawing → Quotation → PI → Confirm PI → Arrange 30% deposit → Manufacture → QC inspect → Pay balance → Shipping.
Q: What is the packaging of the products?
A: Standard export package. All parts are securely packed with steel belts and covered with protective film.
Q: What is the MOQ we can order?
A: Normally one 20ft container, which also depends on the specific size of your ordered products.
Q: What are your payment terms and delivery time?
A: We accept TT or L/C at sight. Delivery time is normally 3 to 4 weeks after receipt of the deposit.
