High-Density Drive-In Racking Systems in the UAE, GCC & Africa
As industrial rents and cold-chain operational expenditures rise across global logistics corridors, maximizing warehouse volumetric efficiency is critical. ILS Middle East designs, manufactures, and installs certified Heavy-Duty Drive-In Racking Systems engineered to eliminate standard access aisles, delivering up to 80% more pallet capacity within the same physical building footprint.

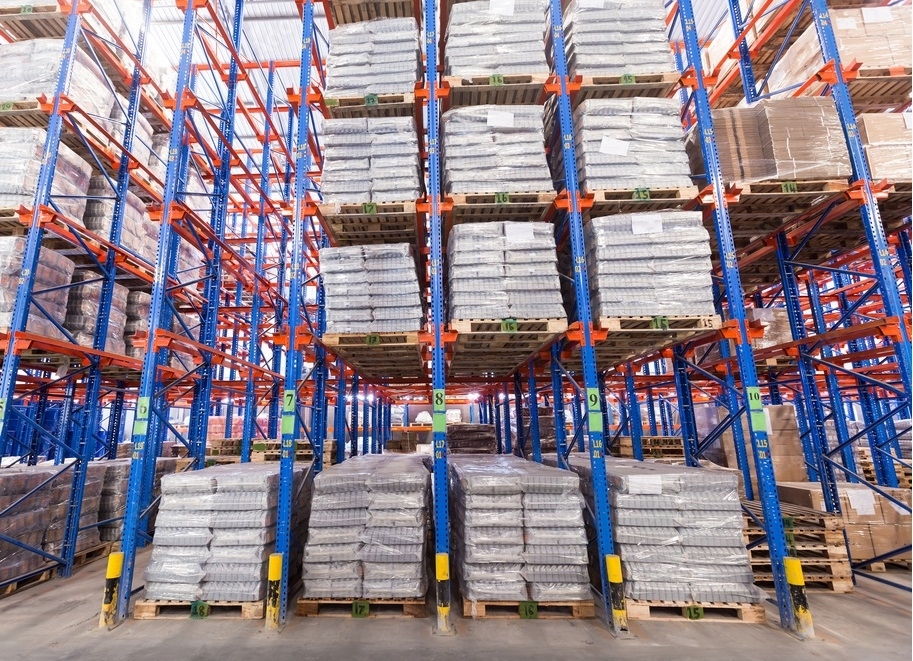

Unlike standard selective setups requiring an aisle for every row, Drive-In systems allow counterbalance and reach trucks to enter storage lanes directly. Pallets rest on precision-formed longitudinal cantilever support rails. Designed for Last-In, First-Out (LIFO) or Drive-Through First-In, First-Out (FIFO) inventory protocols, these structures are the gold standard for high-volume, low-SKU applications.
Technical Specifications & Structural Engineering
Every ILS Drive-In structure is calculated strictly around unit load weights, dynamic fork truck loadings, floor slab anchor capacity, and local seismic requirements in compliance with FEM 10.2.02, EN 15512, and SEMA design standards.
| Technical Parameter | Standard Specification / Capability |
|---|---|
| Structural Material | High-tensile certified structural steel (Q235B / Q355B / S355 cold-formed) |
| Loading Capacity | 500 kg to 2,000+ kg per pallet position (Uniformly Distributed Load) |
| Storage Depth | 2 to 10+ pallets deep per operational lane |
| Clear Height Range | Configurable up to 12+ meters under beam/sprinkler clearance |
| Finishing Treatment | High-durability thermoset electrostatic epoxy powder coating or hot-dip galvanization |
| Pallet Compatibility | Euro pallets (1200x800), ISO/GMA pallets (1200x1000), custom skid sizes |
| Operational Mode | Drive-In (LIFO) or Drive-Through (FIFO) configurations |
Key Advantages for Overseas Warehouse Procurement
Maximum Cubic Space Utilization
Recovers up to 80% of floor space by condensing multiple pallet lanes together, making it far superior to conventional rack formats for bulk stock storage.
Optimal for Cold Storage & Freezers
Substantially minimizes refrigerated air volume waste in blast freezers and cold rooms, cutting ongoing kilowatt refrigeration costs per pallet handled.
Heavy-Duty Impact Protection
Configured with heavy-gauge floor-mounted forklift guide rails, column wrap protectors, and reinforced entrance portals for long-term structural safety.
Modular Custom Engineering
Pallet rail levels adjust on 50mm or 75mm pitches, enabling warehouse operators to adapt lane depths and vertical clearances to evolving inventory profiles.
Target Industrial Applications
Our Drive-In pallet systems are specified across demanding industrial sectors across the Middle East, GCC, and East Africa:
- Cold Storage & Deep-Freeze Distribution: Dramatically lowering thermal cooling cost per stored pallet position.
- Food & Beverage Bottling & Processing: Storing homogeneous seasonal fast-moving consumer goods (FMCG).
- Pharmaceutical & Raw Material Warehousing: Batch-controlled non-perishable inventory management.
- Chemical & Industrial Packaging: Heavy pallet loads requiring dense block storage with mechanical damage avoidance.
Frequently Asked Questions
What is the key storage density benefit of a Drive-In Racking System?
Drive-in racking eliminates conventional forklift aisles, allowing pallets to be stored multiple positions deep and high. It typically increases warehouse cubic storage utilization by 60% to 80% compared to standard selective pallet racking.
What is the operational difference between Drive-In and Drive-Through racking?
Drive-In systems operate on a Last-In, First-Out (LIFO) principle with a single loading/unloading entry face. Drive-Through systems feature entry access at both ends, supporting First-In, First-Out (FIFO) stock management.
Why is Drive-In Racking extensively specified for cold storage and freezers?
Cold storage and temperature-controlled facilities carry high energy cooling costs per cubic meter. Drive-in systems compress pallet footprint into high-density cubes, lowering refrigeration operational costs per pallet position.
What structural standards do ILS Middle East Drive-In Racking adhere to?
Our engineering layouts, steel profile cold-forming, bracing, and column impact guards comply rigorously with FEM 10.2.02, EN 15512, and international SEMA design safety standards.
