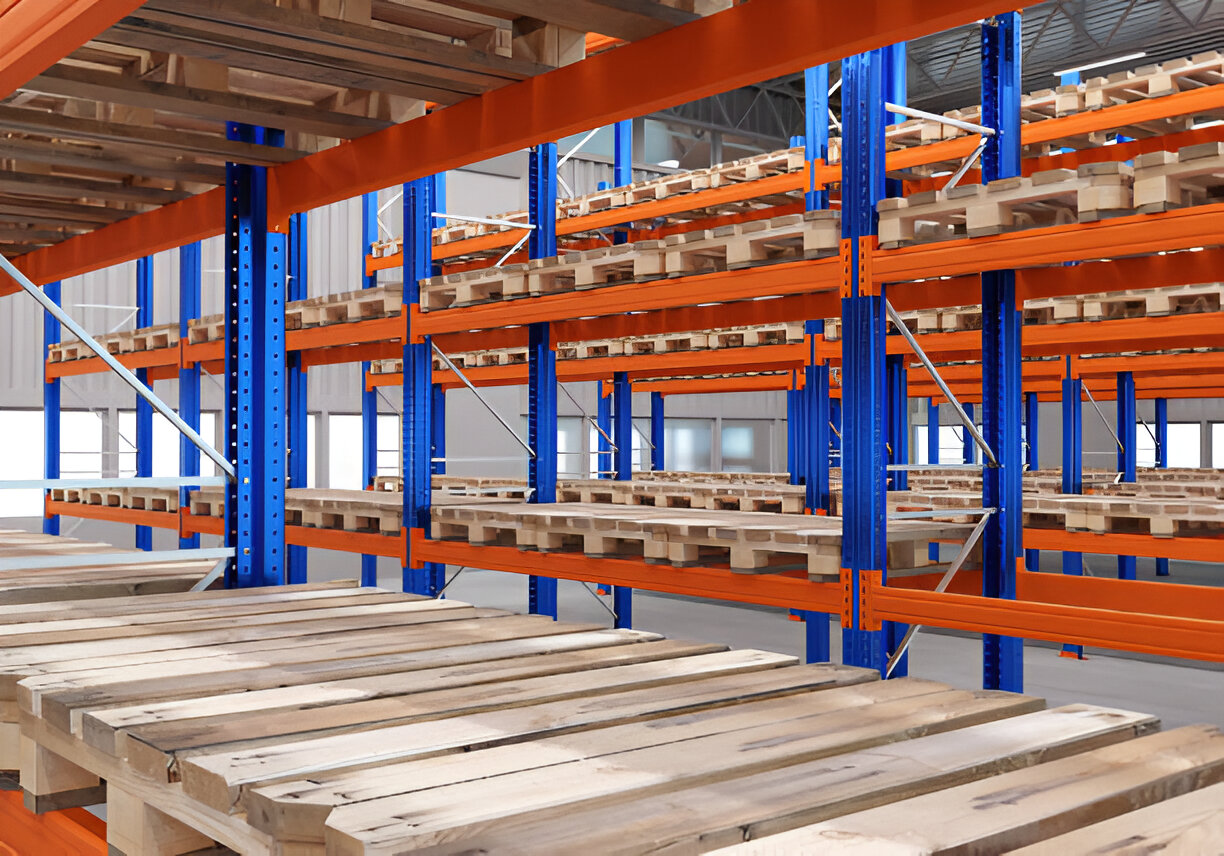

High-Density, Certified Pallet Racking Systems
ILS Middle East delivers robust, high-performance pallet racking systems engineered to meet international safety and structural standards, including FEM 10.2.02 and EN 15512. Specifically manufactured for heavy-duty industrial storage, our systems accommodate high-payload warehouse operations across the UAE, GCC, and Africa.
Selective pallet racking remains the universal benchmark for fast-moving inventory and 3PL operations. With 100% direct accessibility to every unit load, our systems allow warehouse operators to maximize cubic volume, maintain FIFO stock control, and optimize material handling equipment efficiency.
Key Technical Specifications
Every bay profile is calculated strictly based on your dead load, live load dynamics, and seismic conditions to prevent structural deflection or catastrophic failure.
| Parameter | Standard Specification | Heavy-Duty Option |
|---|---|---|
| Load Capacity | 1,000 kg – 2,500 kg per beam level | Up to 4,500 kg per beam level |
| Upright Height | Up to 12,000 mm single-section | Up to 30,000 mm high-bay profiles |
| Steel Grade | Q235B / S275 structural steel | Q355B / S355 high-tensile steel |
| Surface Finish | Epoxy polyester electrostatic powder coat | Hot-dip galvanized (corrosive/cold storage) |
| Pitch Adjustability | 50 mm or 75 mm beam pitch | Custom pitch configurations |
| Compliance | EN 15512, FEM, SEMA, RMI certified | Seismic zone compliant structural testing |
Engineered Structural Advantages
100% Pallet Accessibility
Instant selectivity to every SKU without repositioning loads, facilitating fast dispatch cycles and optimal stock tracking.
High-Tensile Cold-Formed Steel
Optimized omega-section uprights and box/step beams distribute uniform stress and withstand intense industrial handling.
Safety Accessories Included
Standard safety pins, heavy-duty floor baseplates, frame column protectors, and timber or mesh wire decking options.
Turnkey Installation & Relocation
Delivered by certified project managers with full alignment certification, slab anchors, and statutory load signage.
Application Across Industries
Whether you manage ambient third-party logistics (3PL), automotive spare parts, chemical distribution, or deep-freeze cold storage, ILS heavy-duty pallet racks are customized to your specific forklift turning radius (VNA, Reach Truck, or Counterbalance) and ceiling clearances.
