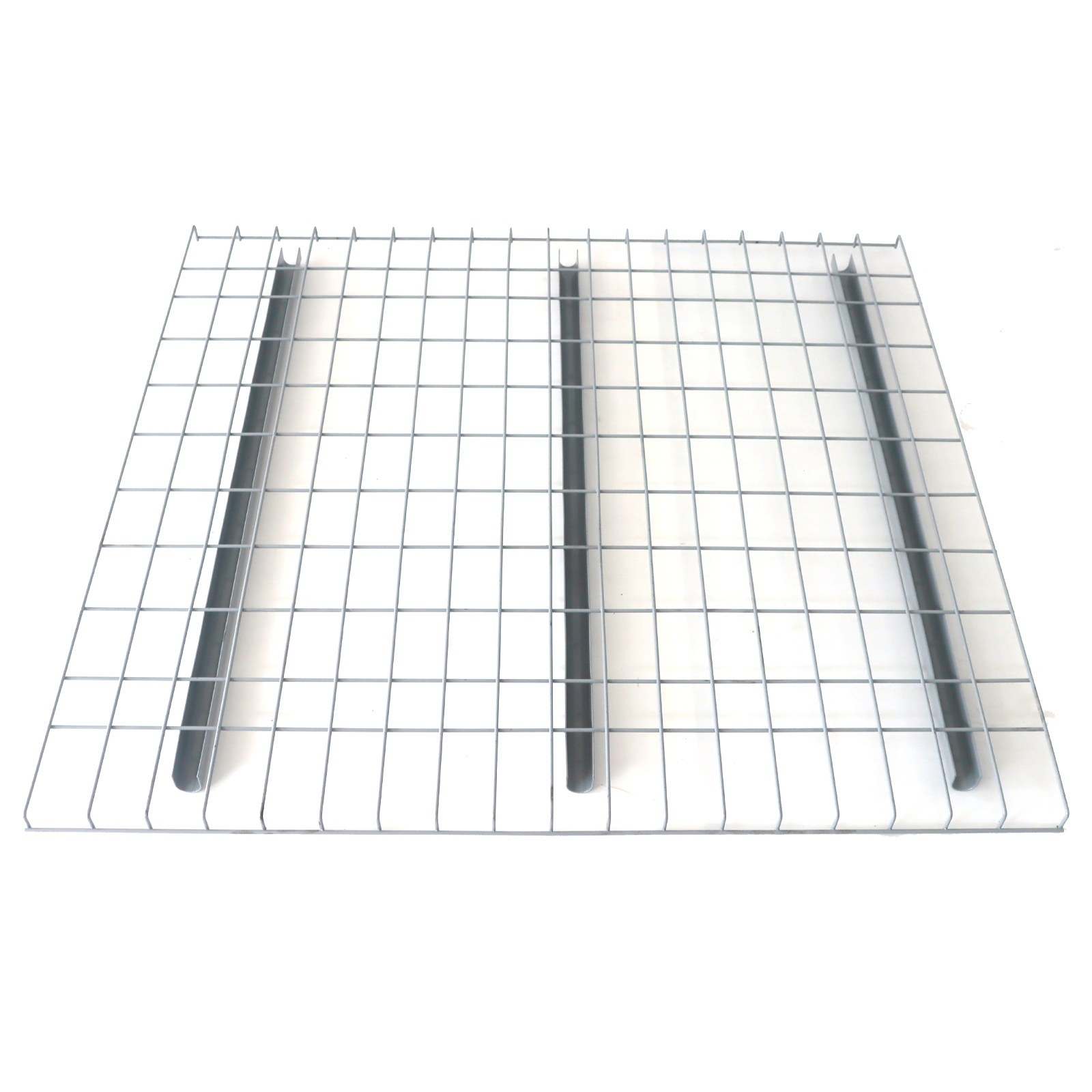

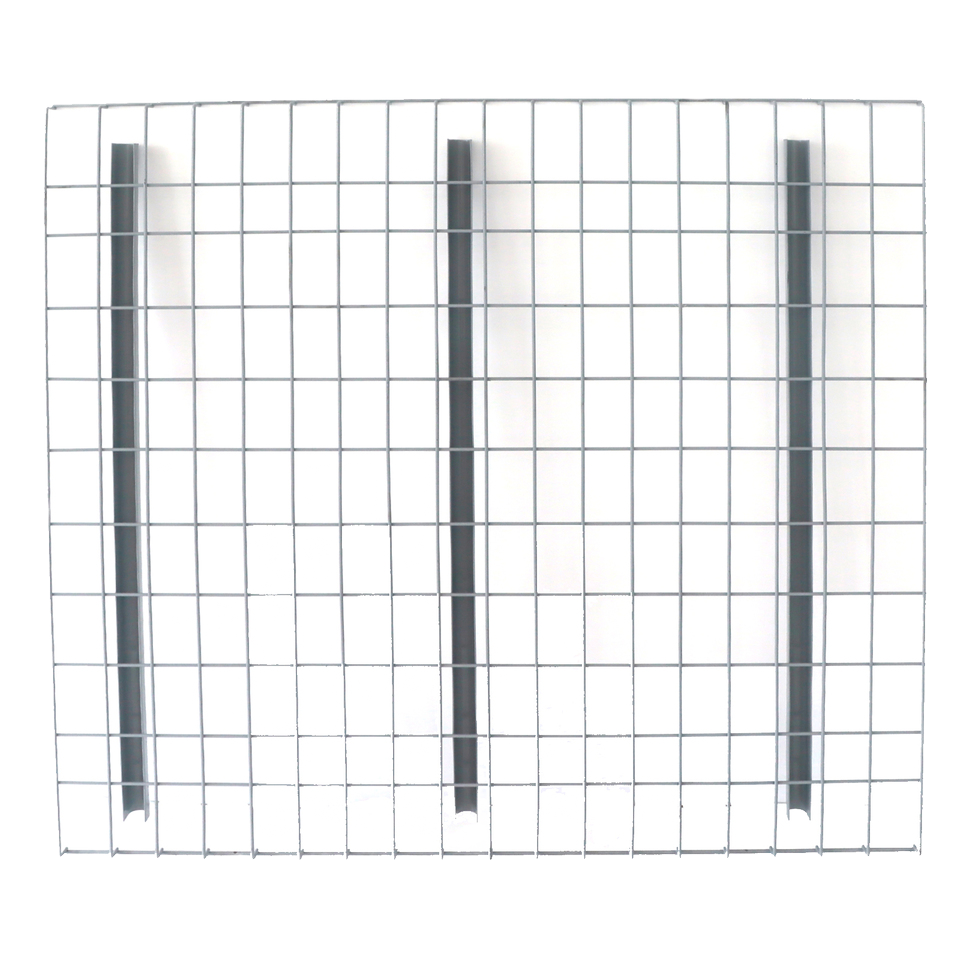

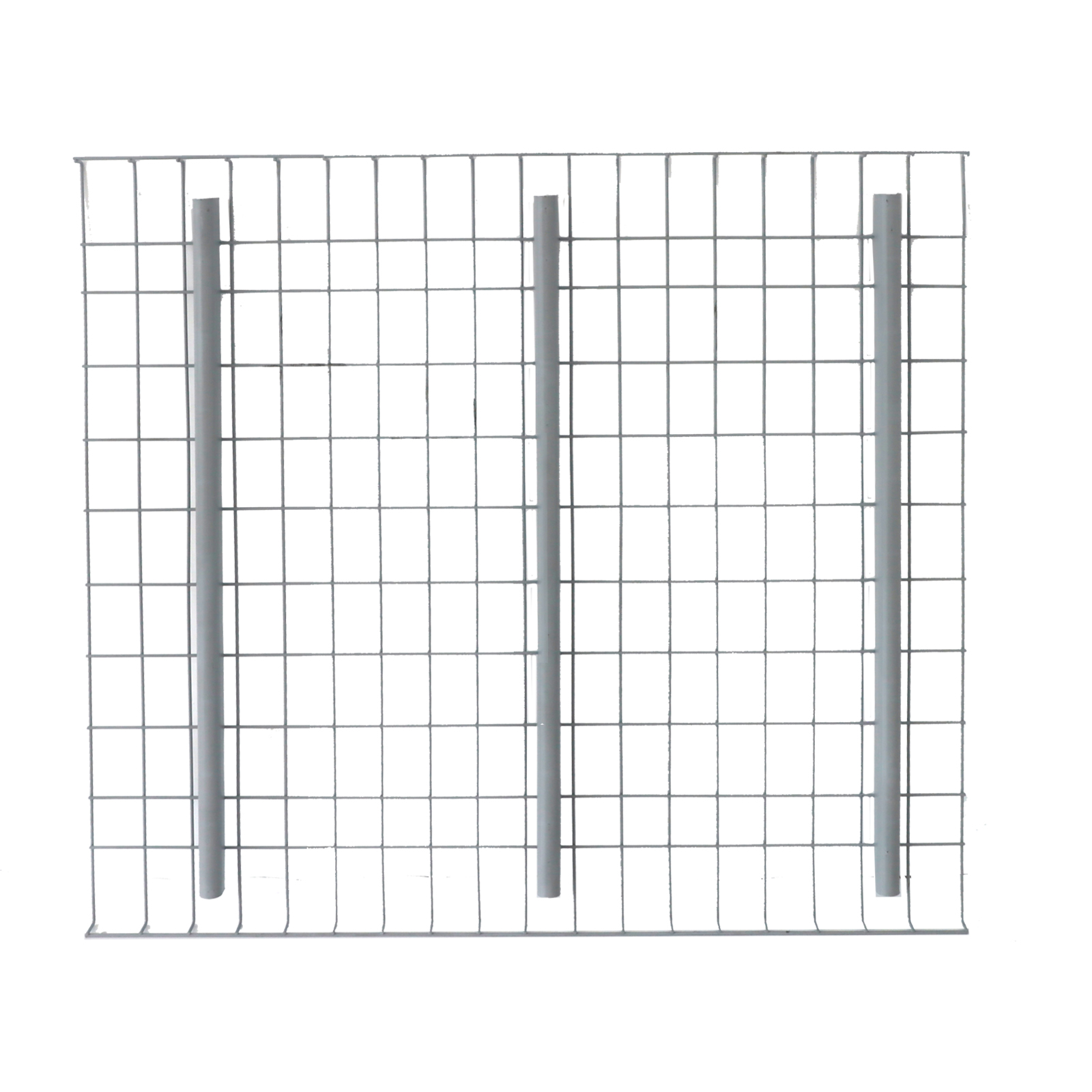

Heavy-Duty U Support Punch Deck Pallet Racking Corrosion-Resistant Steel Wire Mesh Selective Cargo Storage Stackable Durable OEM

Wire mesh decking provides superior warehouse safety by preventing smaller items from falling through racks, improves fire safety by enabling sprinkler water penetration, enhances overhead lighting visibility, and delivers high uniform load capacities.

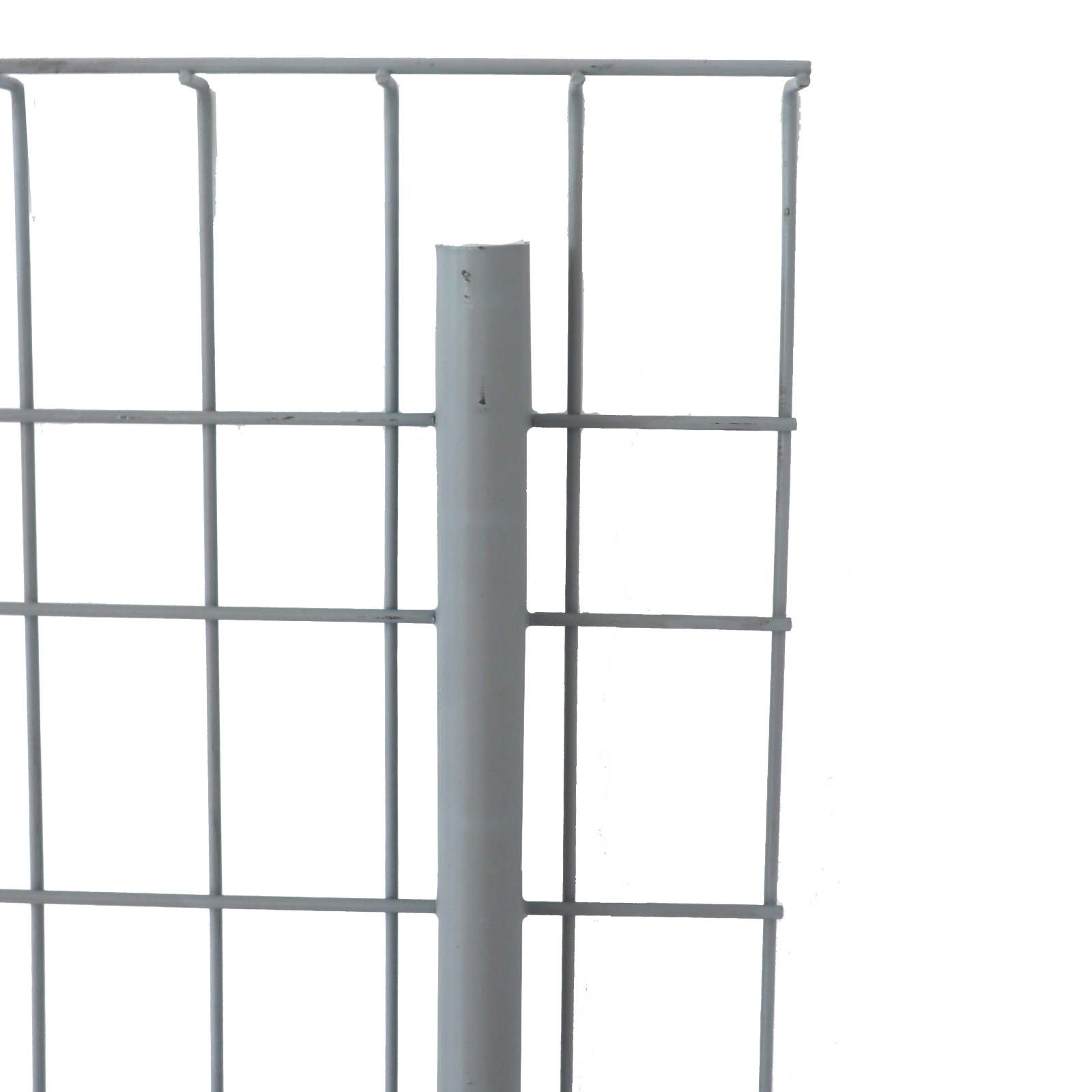

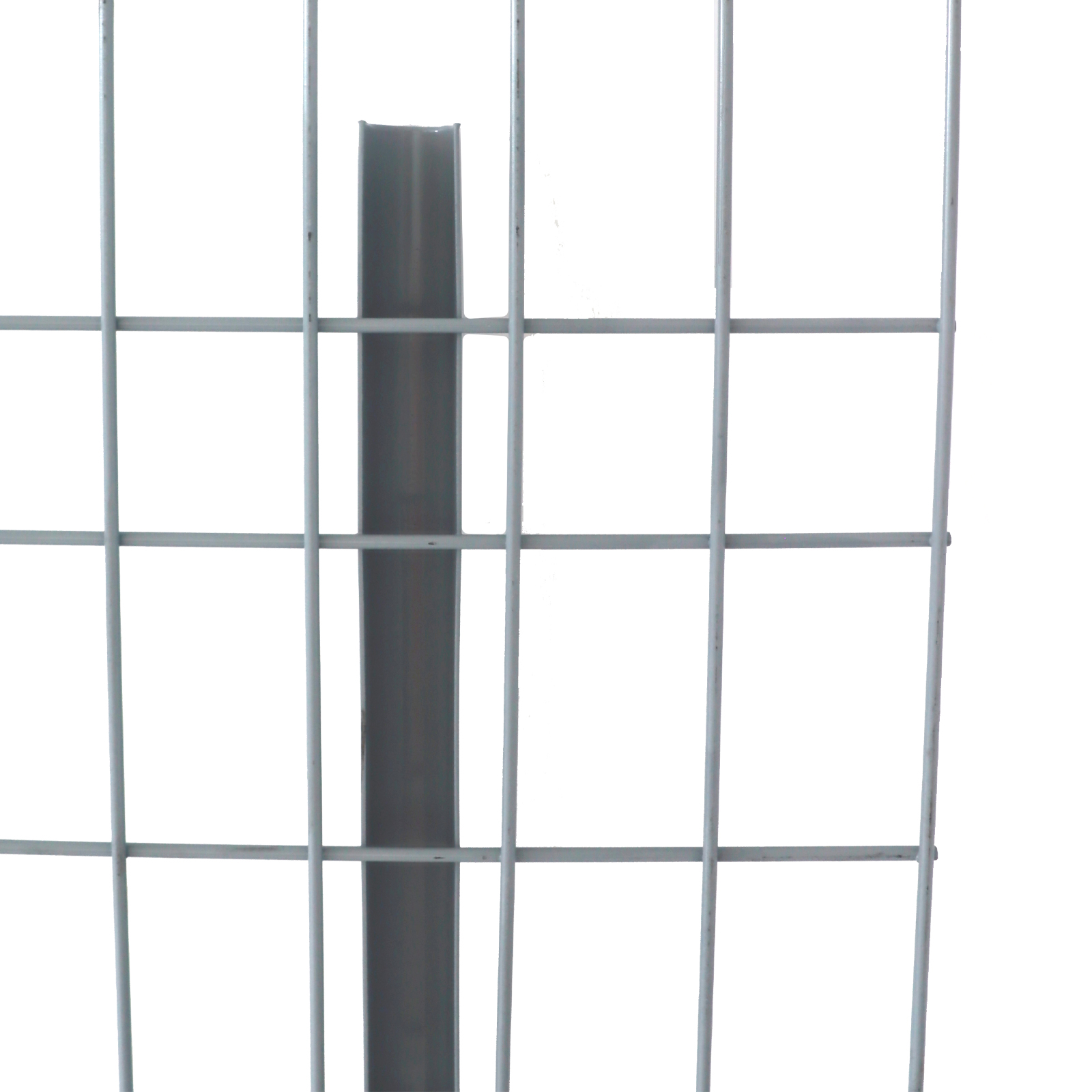

Standard U channels fit neatly into the step of standard step beams, giving a flush and stable surface. Flared channels feature wider, flattened ends designed to rest across both step beams and structural box beams, offering versatile universal compatibility.

Size selection depends on your pallet rack system. American sizes are specified in inches (such as 42" × 46" or 36" × 46") for standard teardrop racks, whereas Euro sizes follow metric millimeter dimensions (such as 1000 × 880 mm or 1100 × 880 mm) tailored to European standard racking.

Load capacity (e.g., 300kg, 800kg, or 1000kg) is evaluated as a Uniformly Distributed Load (UDL). It is engineered through precise steel wire gauges, grid spacing, and the number and thickness of heavy-duty support channels welded beneath the mesh.

Yes. Unlike bare rack beams which require full pallets, wire decking creates a continuous, rigid surface that safely supports individual cartons, drums, irregular crates, and split case items without the risk of tipping or falling.

No external hardware is needed. The waterfall edges hook over the front and rear beam faces, keeping the deck securely anchored in place during pallet loading and unloading.
