China Supplier Heavy Duty Steel Cantilever Racks for Long Material Tube/Pipe Storage with Double-Sided Design
Product Description
Products Highlights

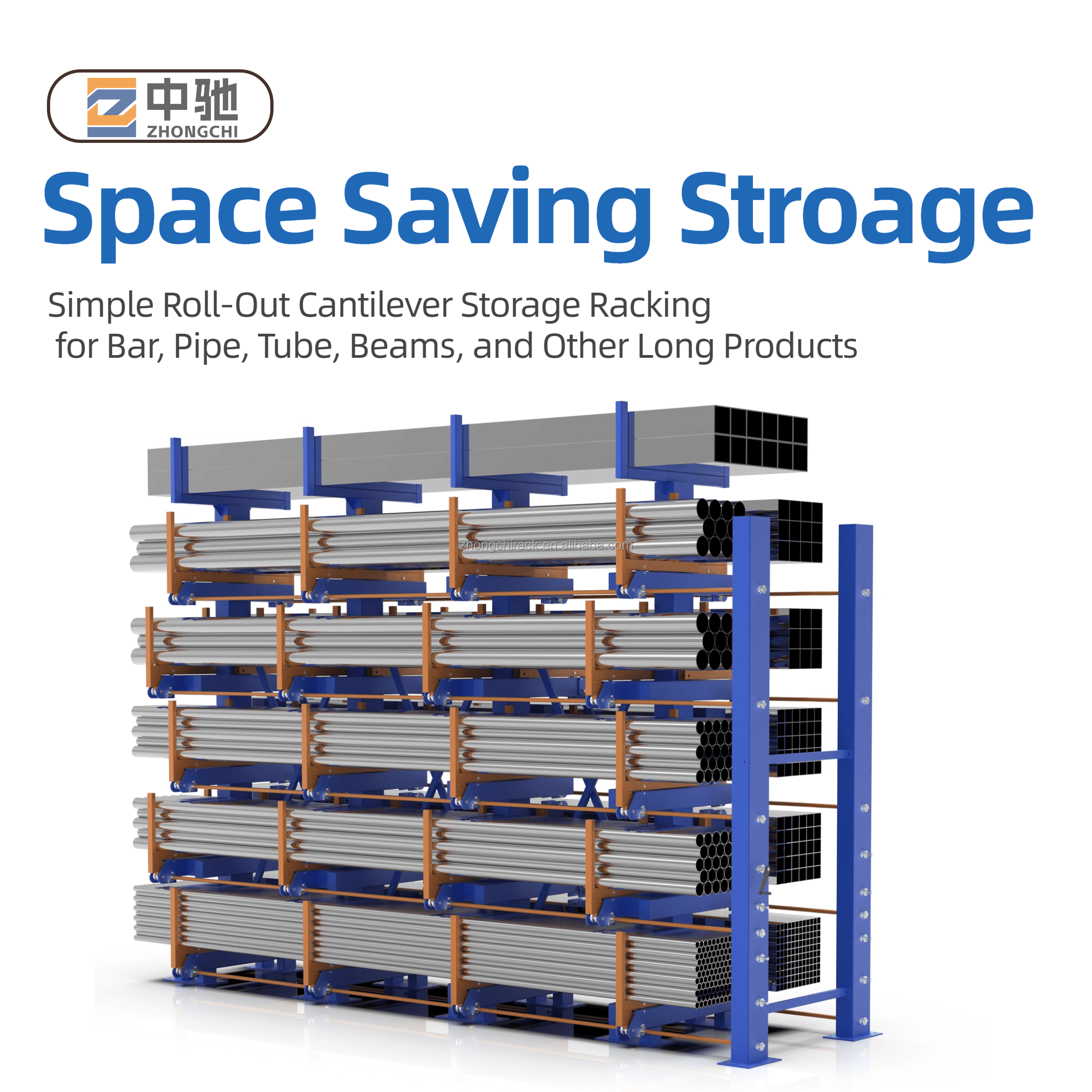

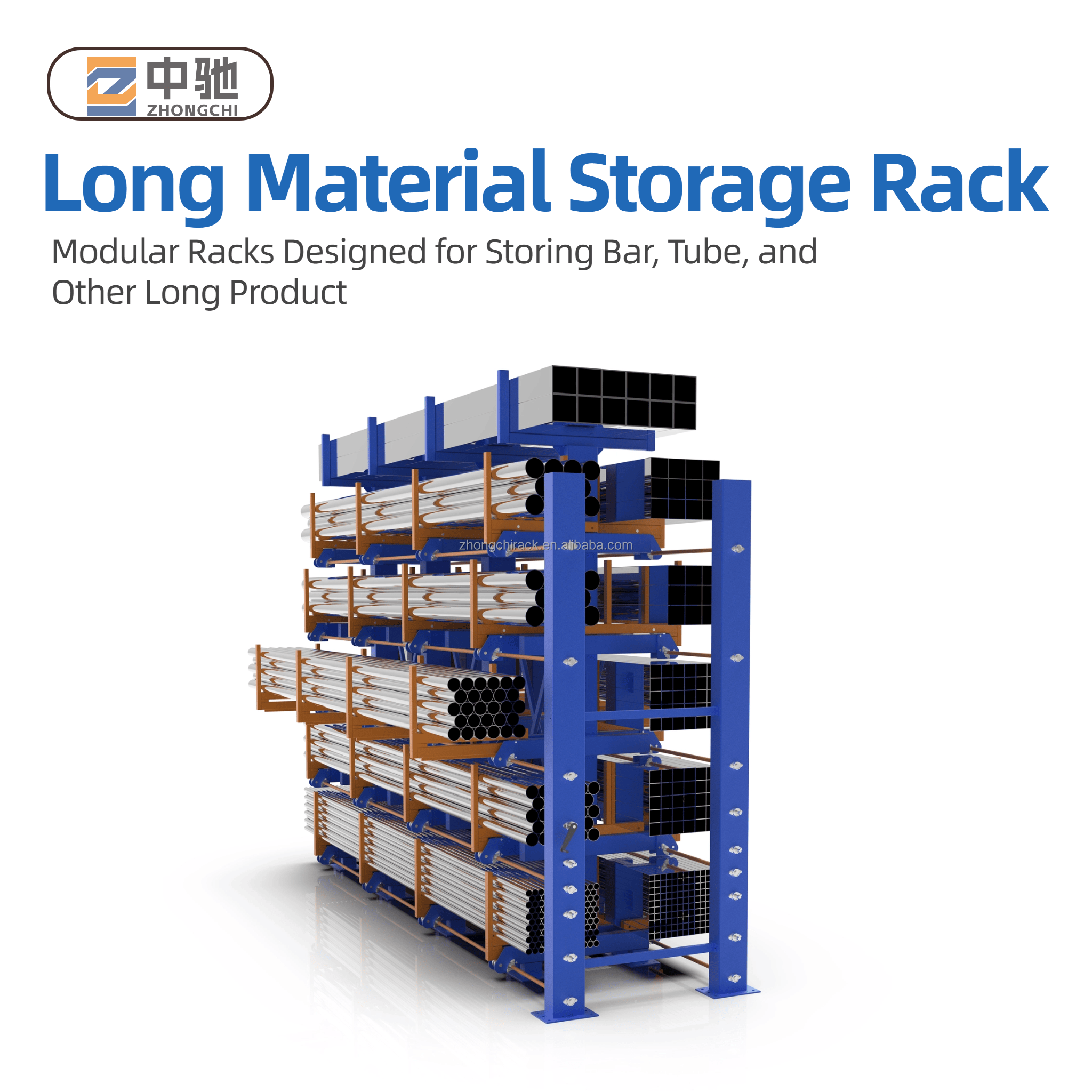

The cantilever telescopic pipe material rack is a storage device specifically designed for storing long materials such as pipes, profiles, bars, and wires. It adopts a cantilever telescopic structure, enabling layered and classified storage of materials as well as convenient access. This product is available in both manual and electric versions and is widely used in industries such as machinery manufacturing, metal processing, construction and building materials, warehousing and logistics. It offers advantages such as space saving, strong load-bearing capacity, easy operation, and high storage and retrieval efficiency.
Smooth Operation

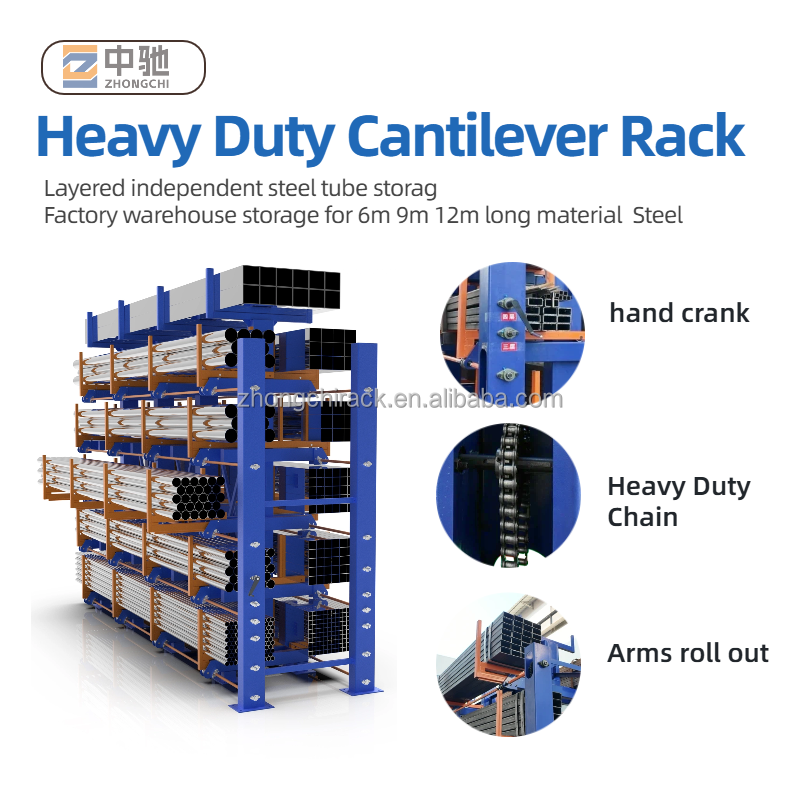

The hand-crank telescopic cantilever rack adopts gear and sprocket chain transmission. The reasonably designed transmission ratio ensures smooth extension and retraction of cantilevers without jamming, enabling a single operator to easily store and retrieve long profiles.
Safe & Stable
The movable arm bracket is equipped with double load-bearing bearings, featuring larger stress-bearing area to reduce deformation under load. It delivers lower running resistance; the cantilever will not sag or deflect under full load, greatly improving warehouse operation stability.
Durable & Long-lasting
The retractable cantilever rack boasts a scientifically designed overall structure verified by finite element analysis. The interlocking fixed arm structure offers strong anti-fatigue and anti-impact performance, resisting deformation and damage under long-term heavy loads for extended service life.
Low Maintenance Cost
Adopting fully bolted assembly structure, the rack can be disassembled, assembled and transported flexibly, cutting costs for initial installation and repeated relocation & reuse. Spare parts can be replaced individually for convenient later maintenance, lowering the total life-cycle investment.
Specifications
| Item | Manual Type |
| Maximum load capacity of one arm | 0.5T/1.0T/2.0T/3.0T |
| Cantilever extension length | 1.0m-3.0m or Customized |
| number of layers | 2-6 layers or Customized |
| Adapt to the size of the pipe material | Length3m/6m/9m/12m or customized |
| column height | 2.0m-6.0m or customized |
| operation method | hand-cranked or Customized |

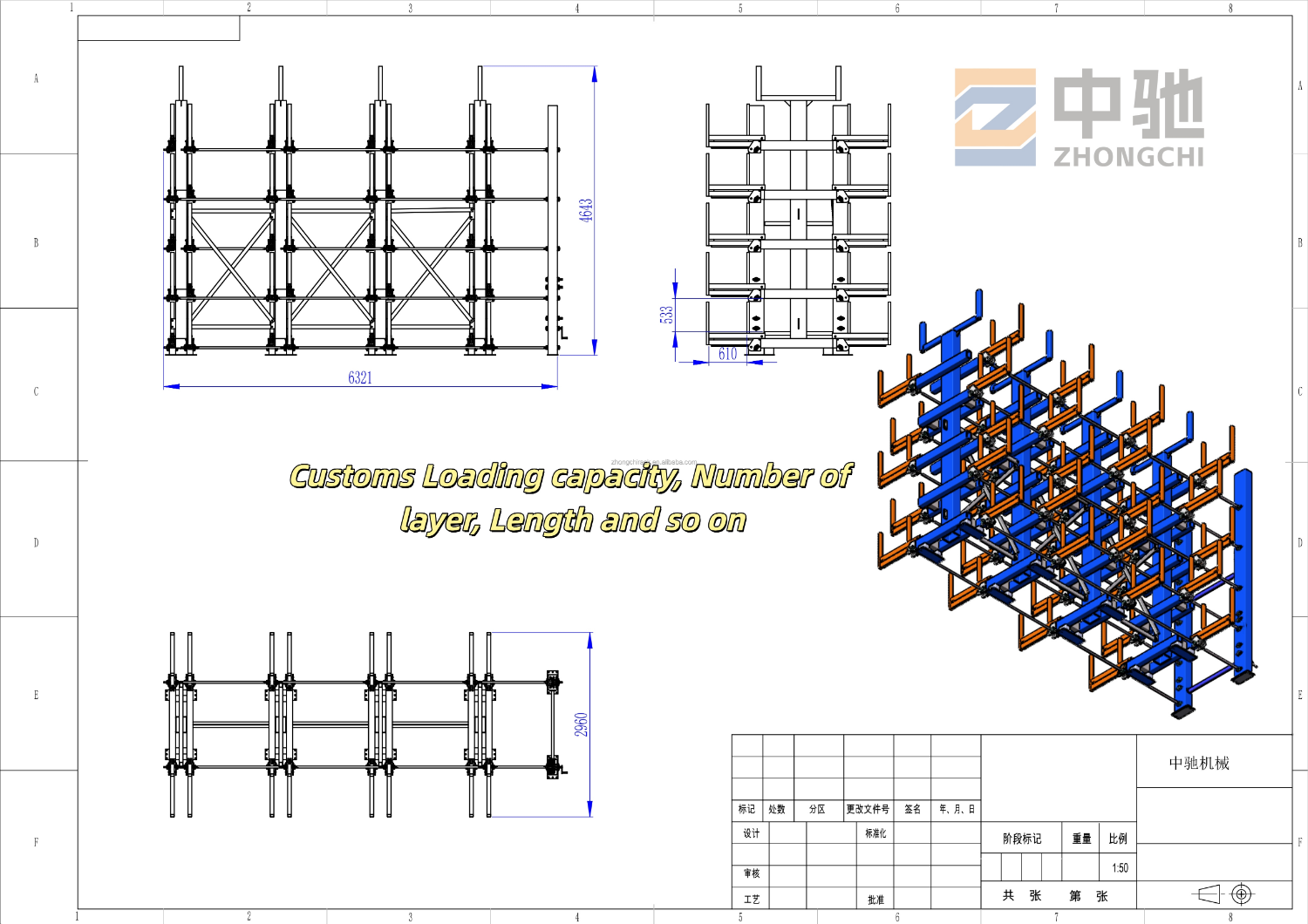

Zhongchi Machinery customized based on your request, Such as the loading capacity, number of layers, power, color and so on.

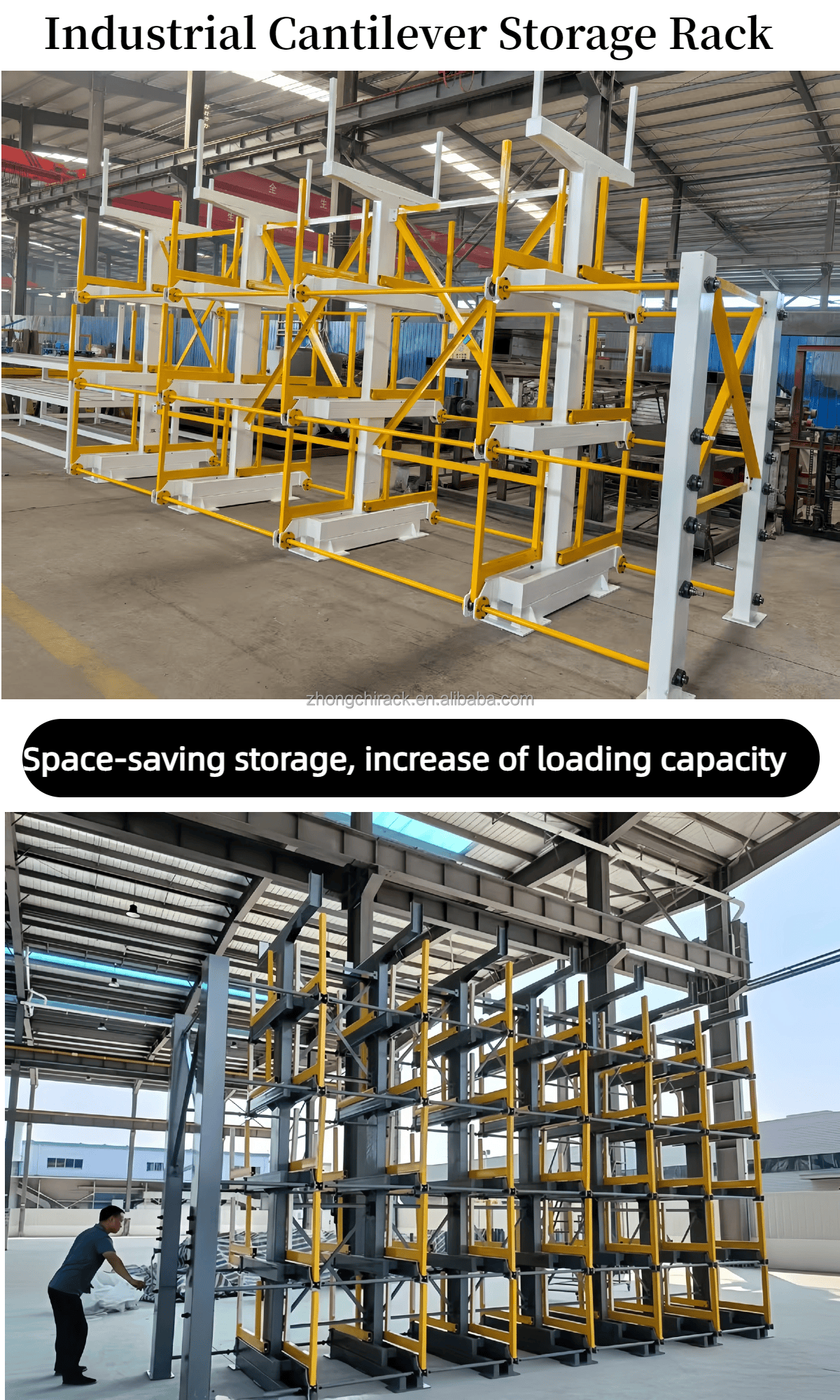

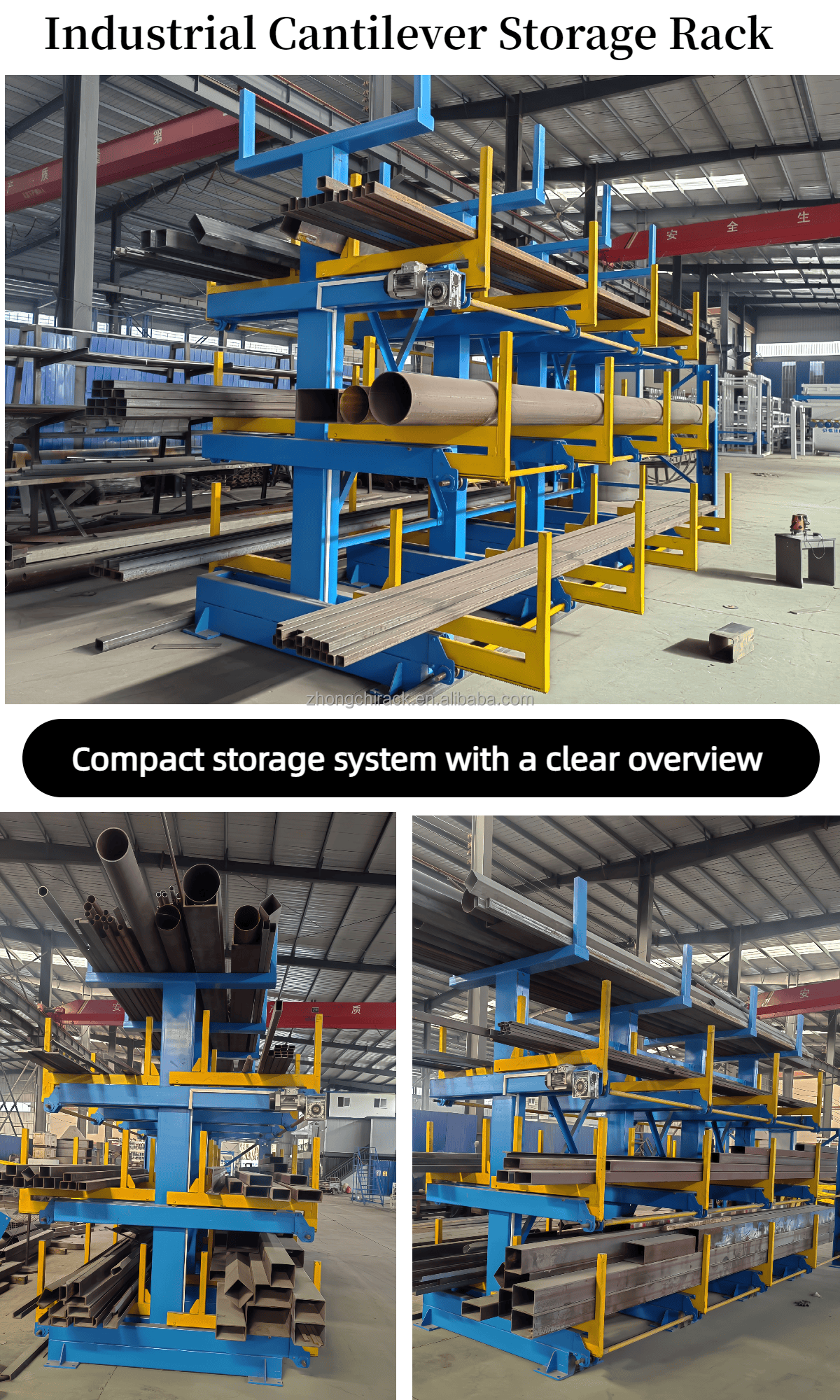

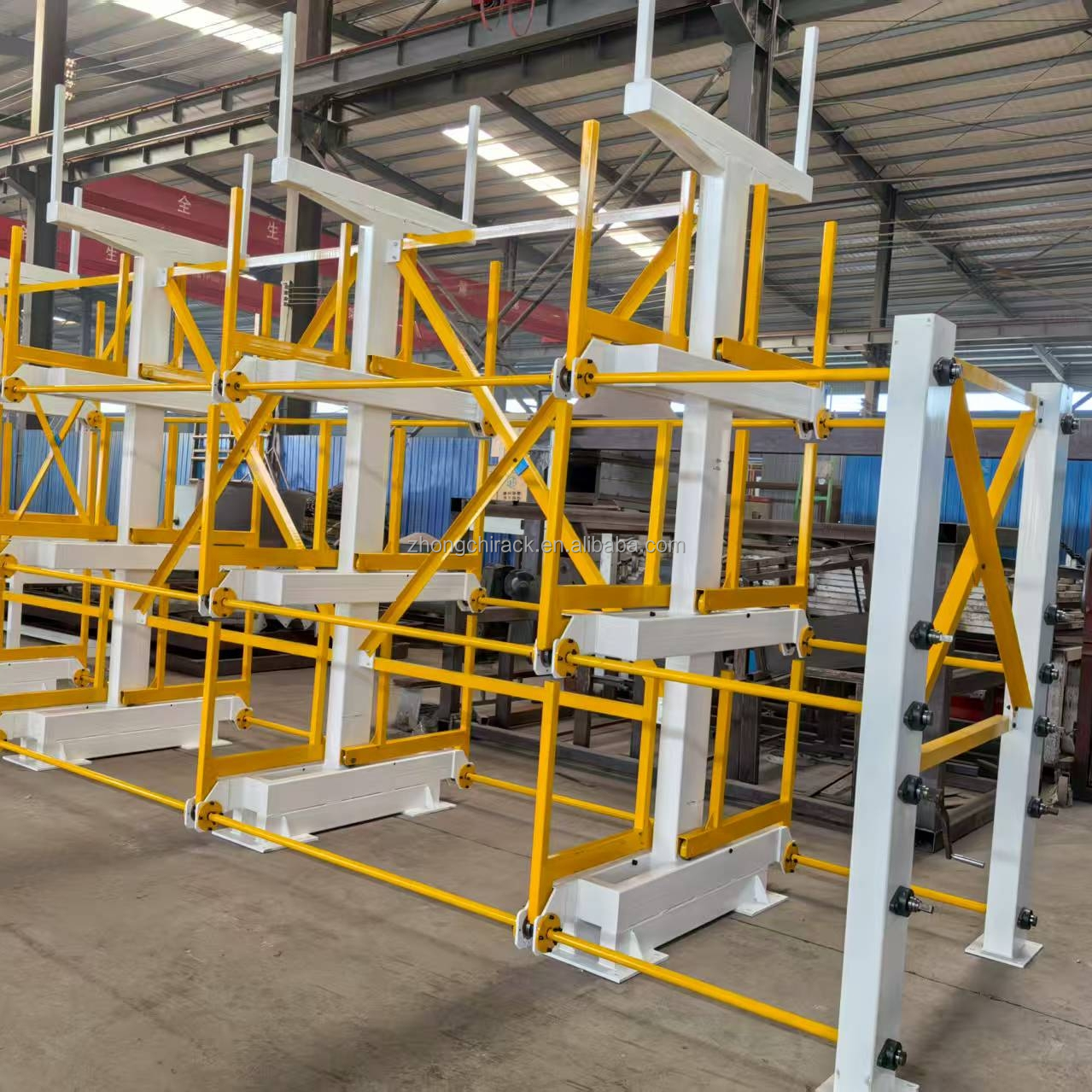

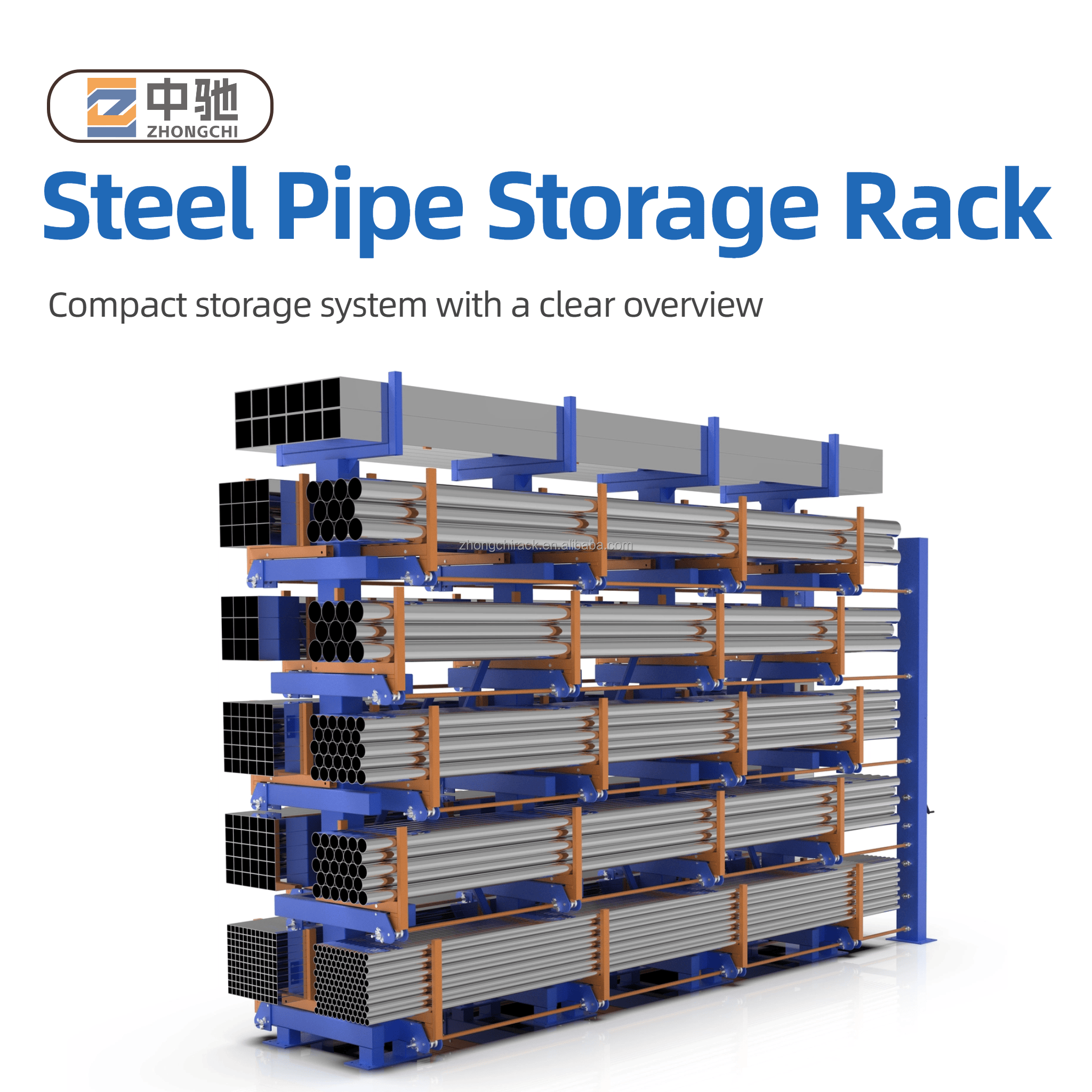

Product shows
Related Products
About Company Information
Shandong Zhongchi Machinery Co., Ltd. is a modern intelligent manufacturing enterprise integrating R&D, production, sales, and service. Located in Jinan, Shandong Province, China.
Our main products includes:
- Intelligent warehouse unit
- Heavy-duty sheet metal rack
- cantilever racks
- Drawer-type racks
- Loading and unloading equipment
- Sheet metal processing and auxiliary equipment
Those products can be matched with laser cutting machines, shearing machines and other metal processing equipment.

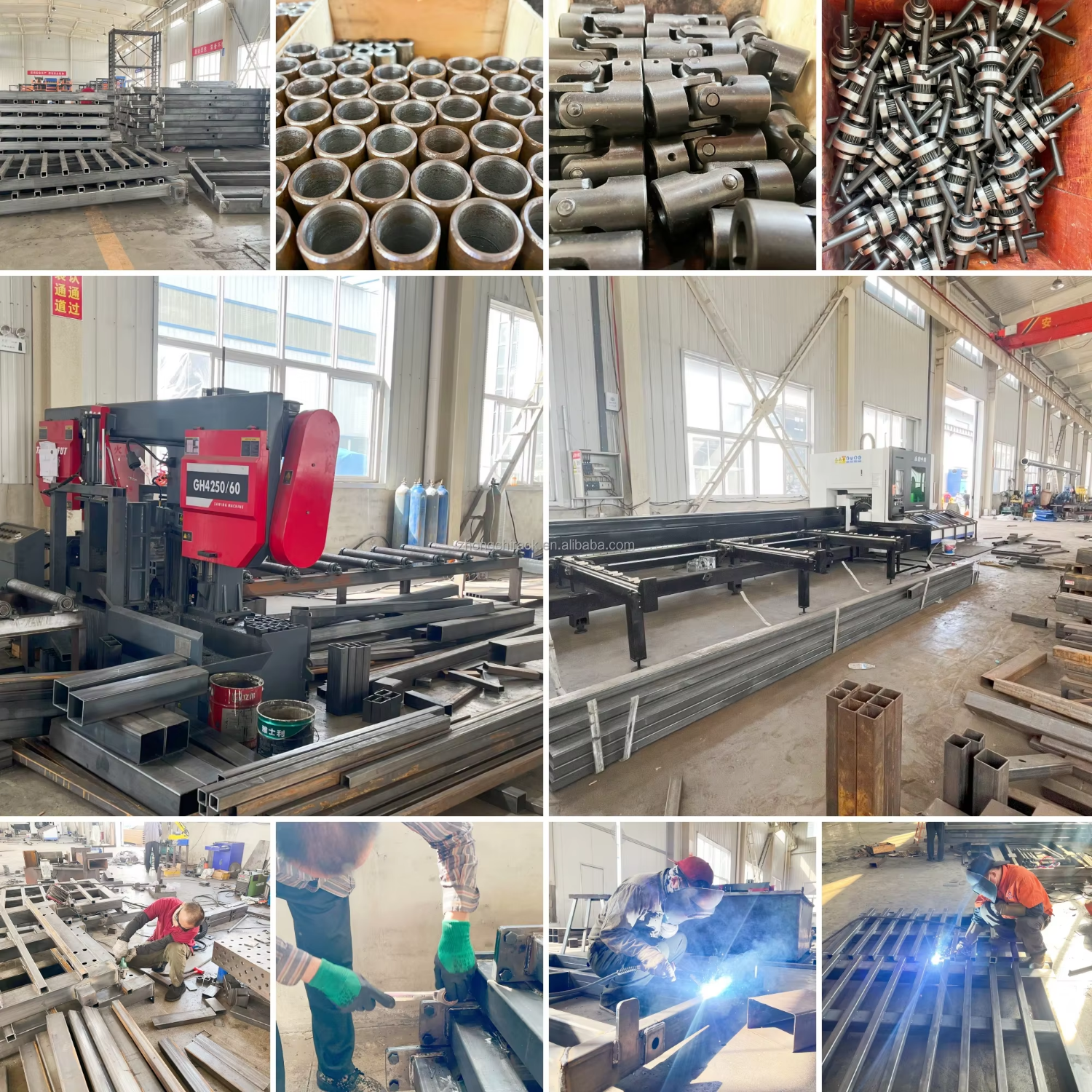

Zhongchi Machinery is equipped with standardized production workshops, advanced processing machinery, and a dedicated technical R&D team. We provide customized intelligent warehousing and metal processing solutions tailored to specific customer requirements. From initial design and manufacturing to installation, commissioning, and after-sales support, we offer a complete one-stop service.
Thanks to our reliable product quality, strict production management, and excellent after-sales service, our solutions are widely used in industries such as machinery manufacturing, mold processing, electronics and electrical appliances, and warehousing and logistics.
Committed to the philosophy of "survive on quality, grow through innovation," Zhongchi Machinery strives to deliver efficient, intelligent, safe, and durable industrial automation equipment to our customers. Our goal is to become a leading supplier of intelligent manufacturing equipment in China and beyond.
Packing specifications
Frequently Asked Questions
Q1
How to place an order?
You may send us your technical parameters and leave your contact information. Our sales team will contact you promptly and provide a formal quotation.
Q2
How to select suitable racks?
Please provide your material size, load capacity, required quantity and special requirements. We will customize the professional storage solution for you.
Q3
How do you guarantee product quality?
We have a professional engineering team and strict QC system under ISO9001 certification. All products are CE certified and undergo full load testing before delivery to ensure safety and stability.
Q4
Where is your factory located?
Our factory is located in Guowang Industrial Park, Jiyang District, Jinan, Shandong, China. We are a direct manufacturer with no middlemen. Factory video inspection and on-site visits are welcome.
Q5
What are your payment terms?
Standard payment term: 30% TT deposit in advance, 70% TT balance before shipment.
Q6
Do you provide on-site installation and commissioning?
Yes, we can arrange professional engineers for on-site installation and commissioning until successful operation. Our projects have been successfully launched in the Netherlands, Saudi Arabia, Vietnam, South Korea and many other countries.
