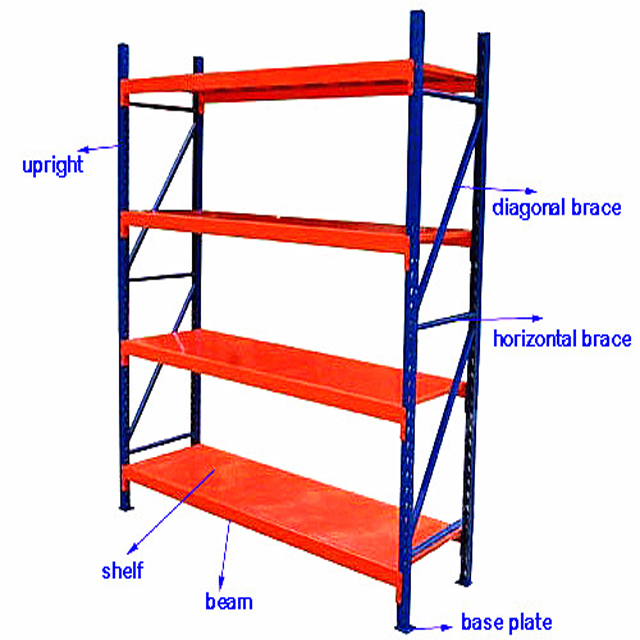

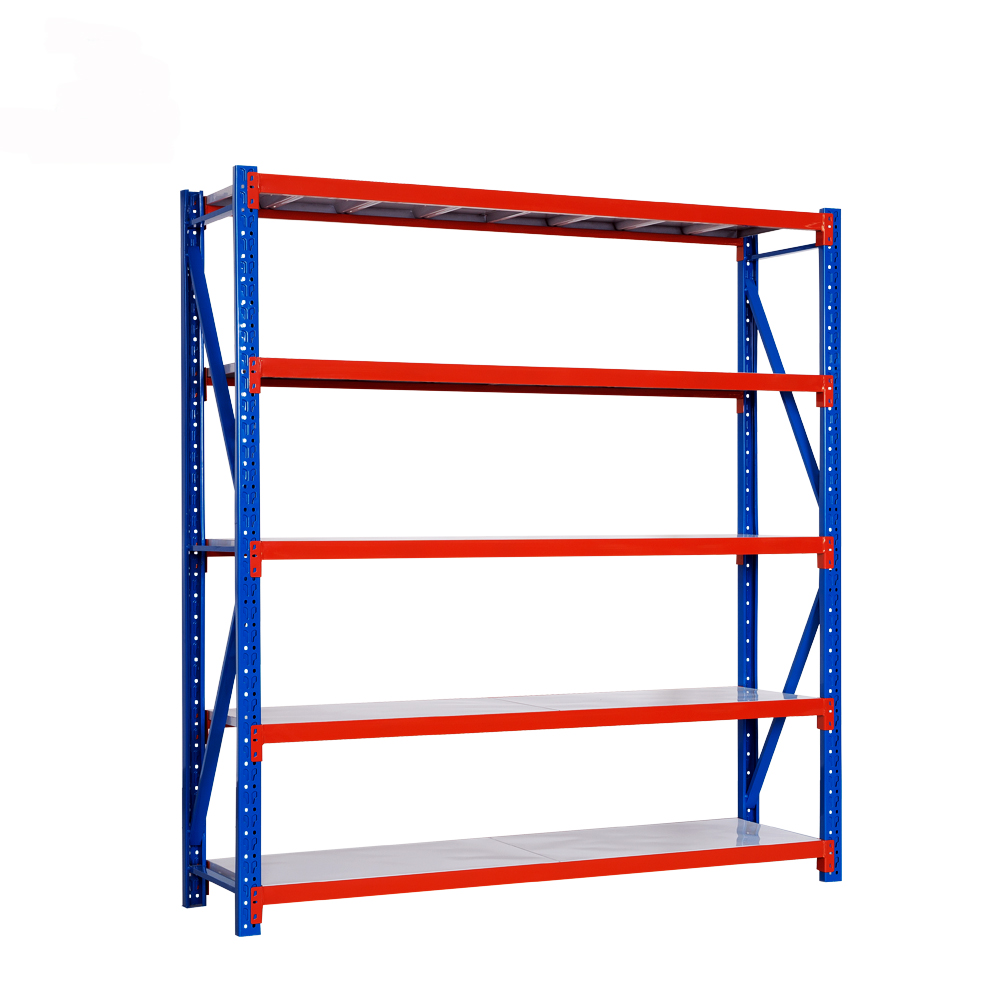

Dongguan Manufacturer Factory 500kg Loading Capacity Medium Duty Warehouse Rack For Sale
Product Description
| Type | Size L*W*H (mm) | Layer | Loading Capacity(kg/layer) |
|---|---|---|---|
| XM-2021 | 2000*600*2000 | 4 | 200kg, 300kg, 500kg |
| XM-2025 | 2000*500*2000 | 4 | 200kg, 300kg, 500kg |
| XM-2027 | 2000*600*2500 | 4 | 200kg, 300kg, 500kg |
| XM-2031 | 1500*500*2000 | 4 | 200kg, 300kg, 500kg |
| XM-2040 | 1200*500*2000 | 4 | 200kg, 300kg, 500kg |
Remark:

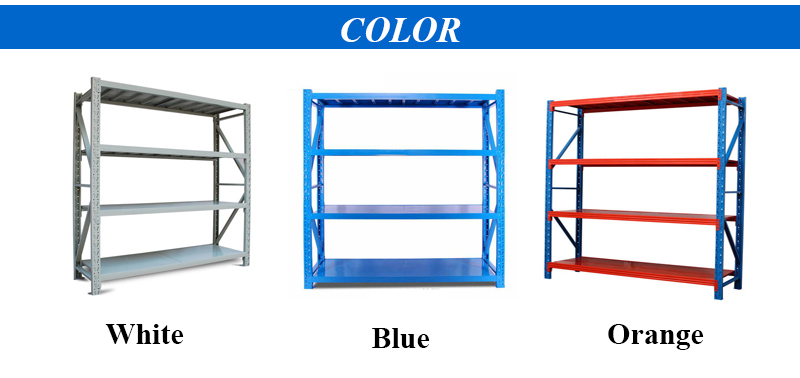

Color: blue, white and orange red;
20GP can be loaded about 75 set main racks; 40 HQ can be loaded about 195 set main rack.

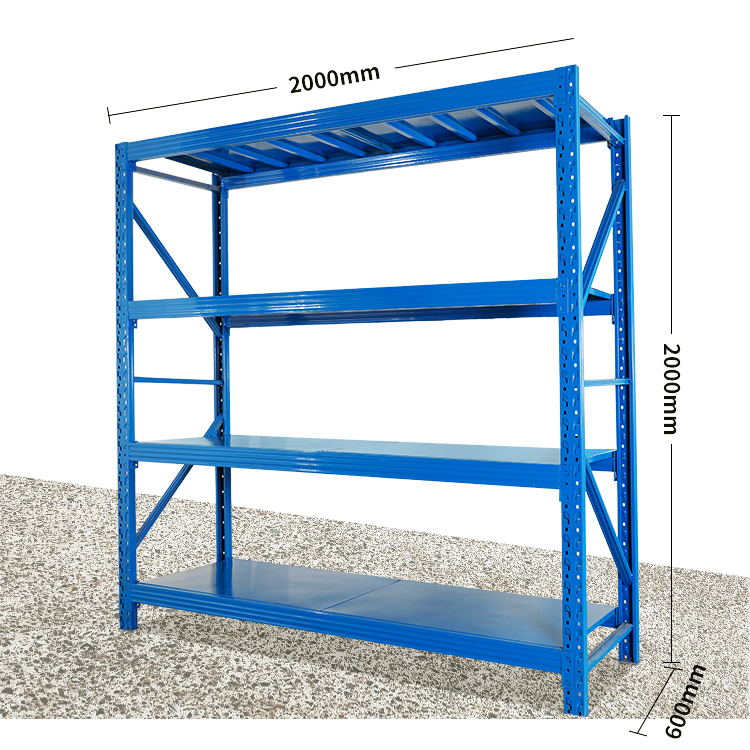

- Oversize: L2000(Outside length)*D600*H2000 - Layers: 4 layers, Weight capacity: 200kg/layer

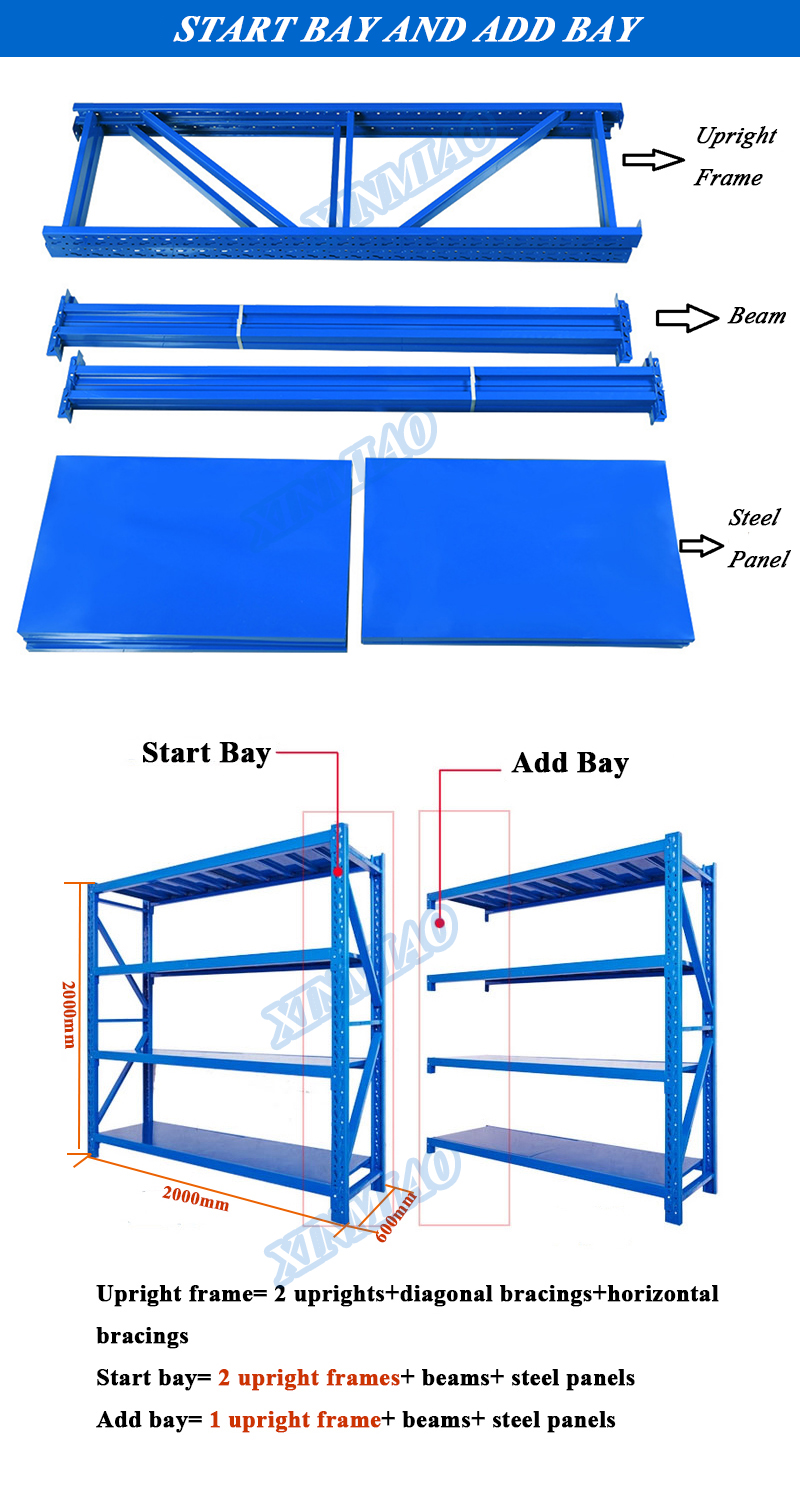

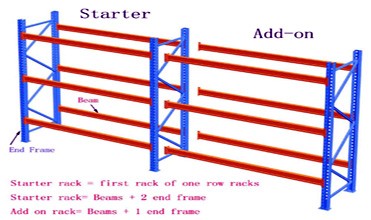

| Structure Section | Component | Dimension (mm) | Qty | Unit |
|---|---|---|---|---|
| Start-bay (1 Set) | Upright Frame | H2000*D600*75*35*0.6 | 2 | pcs |
| Beam | L1830*60*40*0.6 | 8 | pcs | |
| Steel Board | L915*D560*0.3 | 8 | pcs | |
| Add-bay (1 set) | Upright Frame | H2000*D600*75*35*0.6 | 1 | pcs |
| Beam | L1830*60*40*0.6 | 8 | pcs | |
| Steel Board | L915*D560*0.3 | 8 | pcs |
Remark:
Packaging term: upright is air bubble, beam and steel board is carton;
Color: Bule, gray and orange red.
Q
1. Are you a factory or trading company?
A
We are a factory.
Q
2. Where is your factory located? How can I visit there?
A
Our factory is located in Chang'an City, Guangdong Province, China, near Shenzhen. You can fly to Shenzhen & Guangzhou airport directly. All our clients, from home or abroad, are warmly welcome to visit us!
Q
3. What is he material of your products?
A
The material is Q235 Cold rolled steel. We can also choose material as customers’ requirement.
Q
4. How can I get some samples?
A
We are honored to offer you samples.
Q
5. How does your factory do regarding quality control?
A
"Quality is priority. Jusonwoodpeople always attach great importance to quality controlling from the very beginning to the very end. Our factory has ISO9001 2001, SGS authentication.
