Structural Safety & Automation Whitepaper

Top Trusted Sheet Metal Racks Suppliers & Exporter

Engineered Industrial Steel Storage Systems: Heavy-Duty Plate Cassettes, Roll-Out Drawers, Automated Stacker Cranes, and Cold-Rolled Coil Storage Infrastructure Compliant with FEM, EN 15512, and ANSI MH16.1.

5,000kg
Per Drawer Safe Load
80%
Floor Area Saved
100%
FIFO & Direct Crane Access
EN 15512√
Certified Structural Rigidity
Strategic Industrial Storage Engineering

Mitigating Material Deflection, Slab Point Loads, and Operational Bottlenecks

In modern heavy metal fabrication, laser cutting centers, automotive stamping plants, and coil processing facilities, traditional horizontal floor stacking creates catastrophic inefficiencies. Loose sheet metal packs induce hazardous material slippage, surface scratch degradation, extreme floor slab stress concentrations, and costly crane wait times. As premier global manufacturers and certified exporters, our load-engineered sheet metal racking portfolios transition facilities from chaotic footprint sprawl to structured, vertically maximized storage ecosystems capable of supporting up to 5 metric tons per cassette level with ergonomic single-operator retrieval.

Export-Grade System Architecture

Engineered Sheet Metal, Coil, and Heavy Fabrication Storage Systems

Browse our factory-direct, FEA-validated storage equipment engineered specifically for sheet plates, slit master coils, structural profiles, and dynamic production turnover.

Dynamic Turnover Foldable Stacking Turnover Rack Fabric Metal Steel Pallet Movable Foldable Stacking Shelf

Foldable Stacking Turnover Rack Fabric Metal Steel Pallet Movable Foldable Stacking Shelf for Warehouse

High-tensile modular steel post pallet featuring interstackable cup-feet, 4-way forklift entry, and rapid teardown capability for raw fabric and light sheet offcut transit.

View Engineering Specs

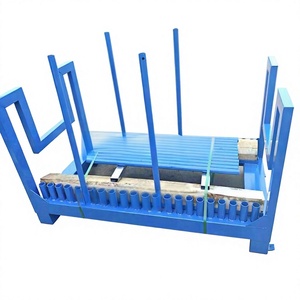

Heavy Coil Storage Cold-rolled Steel Coil Rack Factory Storage Solution Strong Load-Bearing Capacity

Cold-rolled Steel Coil Rack-Factory Storage Solution Strong Load-Bearing Capacity Multifunctional Design Turnover Raw-Material

Heavy-section saddle cradles with oil-resistant polyurethane cushioning designed to isolate cylindrical cold-rolled steel coils, preventing flat-spotting and hoop stress deformation.

View Engineering Specs
Robotic Laser ASRS Intelligent Steel Vertical Sheet Storage Rack Automated Plate Warehouse With Robot Automatic Loading Function

Intelligent Steel Vertical Sheet Storage Rack Automated Plate Warehouse With Robot Automatic Loading Function Heavy Duty

Fully integrated automated vertical storage tower equipped with vacuum suction crane robotics and Cartesian gantry systems for uninterrupted fiber laser cutter plate feeding.

View Engineering Specs
Adjustable Longspan OEM ODM Custom Adjustable Multi Tier Layer Longspan Warehouse Storage Metal Steel Shelf Rack

OEM ODM Custom Adjustable Multi Tier Layer Longspan Warehouse Storage Metal Steel Shelf Rack Medium Light Duty Shelving Racking

Cold-formed step beams and boxed steel shelf panels with 50mm pitch adjustability, providing versatile staging for stamping dies, press brake tooling, and cut blanks.

View Engineering Specs
8-Layer Heavy Tower Intelligent Automated Warehouse System Steel Sheet Metal Storage Rack 8-Layer Heavy Duty

Intelligent Automated Warehouse System Steel Sheet Metal Storage Rack 8-Layer Heavy Duty Corrosion Protection High Load Capacity

High-bay multi-cassette vertical tower featuring dual-mast electro-hydraulic elevation, pin-locking anti-fall mechanisms, and thermosetting zinc-phosphate powder barrier finishing.

View Engineering Specs
High-Density Mobile Storage Shelving Units Warehouse Racks Commercial Movable Shelving Units

Storage Shelving Units Warehouse Racks Commercial Movable Shelving Units

Precision floor-rail-mounted mobile bases eliminating idle aisles. Mechanical-assist handwheels or electric motors enable massive cubic capacity expansion in compact maintenance hubs.

View Engineering Specs

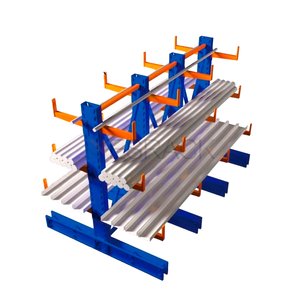

Structural Cantilever Heavy-Duty 6 Meter High Warehouse Cantilevered Stacking Racks and Shelves Raw Material Storage Rack

Heavy-Duty 6 Meter High Warehouse Cantilevered Stacking Racks and Shelves Raw Material Storage Rack

Engineered H-beam columns and tapered cantilever arms providing clear frontal accessibility for oversized raw steel plates, thick plate bundles, extrusions, and heavy bar stock.

View Engineering Specs
Specialized Fixtures Industrial bar Furniture Wine Glass Storage Racks Wall-mounted bar Display Racks LED Warm Light Iron Wine Racks

Industrial bar Furniture Wine Glass Storage Racks Wall-mounted bar Display Racks LED Warm Light Iron Wine Racks

Precision laser-cut architectural steel display fixture with integrated LED thermal management, demonstrating superior thin-gauge sheet metal fabrication and decorative powder coating.

View Engineering Specs
Enterprise Rigor & Global Reliability

Engineering Integrity Behind Every Structural Bay

Catastrophic racking failures in sheet metal storage stem from under-specified moment-resisting upright connections, underestimated dead-load deflection, and erratic seismic slab interactions. Our enterprise advantages eliminate operational risks before steel is cut.

01 / CALCULATION

Finite Element Analysis (FEA)

Every upright, beam, and cassette drawer undergoes computerized dynamic stress modeling under maximum loading conditions to ensure deflection remains strictly below the structural threshold of L/200.

02 / COMPLIANCE

FEM & EN 15512 Conformity

Designs are certified in rigorous compliance with European FEM 10.2.02 codes and ANSI/RMI MH16.1 specifications, providing verified safety factors, anchor shear allowances, and rated load signage on all bays.

03 / FABRICATION

Certified Q355B Alloy Steel

Constructed exclusively from certified prime structural steel (Q235B and Q355B hot-rolled profiles). Components are precision laser-cut and welded using robotic multi-axis submerged arc systems.

04 / LIFECYCLE

Turnkey Global Execution

From initial laser scanner site surveys and customized CAD slab analysis to international containerized export, on-site certified assembly, load testing, and lifecycle structural audit certifications.

Technical Benchmark: Traditional Floor Stacking vs. Engineered Vertical Cassette Racks

Comparative analysis based on a standard 3,000 × 1,500 mm (10 × 5 ft) heavy steel sheet stock holding 50 metric tons.

Operational Metric Traditional Floor Pallet Stacks Standard Cantilever Racks Roll-Out Sheet Metal Tower (Our Solution)
Footprint Utilization Poor (Sprawls horizontally; 120+ m²) Moderate (Single deep vertical; 65 m²) Superior (True vertical high-density; 24 m²)
Access Ergonomics Blocked (LIFO only; restacking needed) Side-loader or long forklift required 100% Direct FIFO (Crank/Pneumatic roll-out)
Retrieval Time per Pack 25 – 45 Minutes (Double handling) 12 – 18 Minutes Under 3 Minutes (Single operator with crane)
Surface Scrap / Scratch Rate High (Metal-to-metal dragging damage) Moderate (Contact with steel fork arms) Near Zero (Polymer/rubber isolated cassettes)
Forklift Aisle Clearances 5.0 – 6.5 Meters wide aisleways 4.5 – 5.5 Meters clearance Zero Aisle Needed (Under overhead gantry)
Slab Point Load Safety Uncontrolled concentrated floor stresses High point load at base shoe Engineered spreader base plate distribution
Industry Roadmap & Innovation

Technological & Architectural Development Trends in Sheet Metal Logistics

The storage of flat steel sheet, heavy armor plate, stainless alloys, and coiled strip is undergoing a massive structural transformation driven by lights-out manufacturing and Industry 4.0 automation.

Automation & Robotics

Direct Laser Integration & Gantry Feeding

The modern smart factory demands the total elimination of manual forklift transit between sheet storage and CNC laser cutting beds. Contemporary automated sheet metal warehouses feature multi-tier ASRS towers directly linked to 2D Cartesian vacuum gantry depalletizers. The storage system autonomously queries production ERP schedules, extracts the precise material alloy and thickness cassette, presents the raw sheet directly to the laser cutting table, and seamlessly collects and sorts remnant skeleton grids without human contact.

Structural Metallurgy

Cold-Formed High-Yield Q355 Profiles

To balance seismic ductility with dead-weight optimization, structural rack architecture is rapidly transitioning away from excessive hot-rolled structural channels toward micro-alloyed, cold-formed high-strength steels. Utilizing variable cross-section cold-roll profiling with continuous stiffening ribs, our upright designs offer up to 35% higher torsional rigidity while decreasing dead load on warehouse floor slabs, meeting the strictest seismic criteria in high-acceleration geographic zones.

Sensors & Predictive Maintenance

Dynamic Telemetry & Deflection Sensors

Next-generation sheet metal racks incorporate embedded industrial IoT sensors along critical load-bearing beams and pivot hinge bearings. Integrated fiber-optic strain gauges and piezoelectric load cells monitor instantaneous drawer dynamic loads during crane hook deployment. The system triggers predictive maintenance alerts if deflection exceeds allowable European standards or if fork-truck collision impact exceeds calibration thresholds, eliminating hidden structural fatigue.

Strategic Sourcing Analysis

Future Procurement Trends for Sheet Metal Racks (2025–2030)

Global supply chain directors and structural engineering procurement leads are shifting their evaluation frameworks from simple purchase price per ton toward sophisticated lifecycle metrics.

Total Cost of Ownership (TCO) Dominance

Capital expenditure calculations are now heavily weighed against square-meter warehouse leasing costs. By compacting a 600 m² horizontal floor stack into an 85 m² automated sheet tower, procurement teams unlock payback periods under 14 months purely in real estate savings and reduced forklift fleet leasing requirements.

Demand for Fully Modular CKD Shipping

International maritime freight rates incentivize high packing densities. Modern procurement guidelines enforce Completely Knocked Down (CKD) modular fabrication: precision bolted cross-bracing and slotted cassettes that pack tightly into standard 40-foot High-Cube shipping containers, drastically lowering ocean freight duties and carbon overhead.

Zero-Scratch Quality Compliance

With aerospace and high-spec architectural sectors demanding pristine finishes on mirror-finish stainless steel, aluminum 6061-T6, and pre-galvanized sheet, procurement audits mandate non-marring cassette surfaces, polyurethane isolation strips, and positive clamping to eradicate in-transit vibration abrasion.

Engineering Knowledge Base

Frequently Asked Structural & Procurement Questions

Find authoritative technical guidance compiled by our structural design engineers, covering load calculation formulas, concrete slab prerequisites, and safety compliance.

Need custom seismic calculations? Our engineering team can supply PE-stamped structural calculations and finite element stress verification reports tailored to your local building codes.
What concrete floor slab specifications are required for heavy sheet metal racks?
For vertical cassette racks and heavy roll-out sheet metal towers bearing between 3,000 kg and 5,000 kg per level, the concrete slab must generally be at least 180 mm to 250 mm thick with reinforced C25/30 or C30/37 grade concrete. Floor flatness should meet DIN 18202 Table 3 Group 4 standards to prevent mast misalignment. Baseplates with heavy-duty wedge anchors (such as Hilti HST3 or equivalent) are calculated to distribute point loads safely across the subgrade.
How does a roll-out cassette rack prevent deflection of thin sheet bundles?
Thin gauge sheets (0.5 mm to 2.0 mm) lack natural bending stiffness and sag severely when lifted with standard forklift forks. Our roll-out cassettes provide full-perimeter continuous tubular support with intermediate welded grid reinforcements. When extended 100% via mechanical crank or electric drive, the entire sheet bundle remains uniformly planar, permitting vacuum lifters or magnetic lifter spreaders to engage without dangerous sag or permanent plastic deformation.
What are the maximum allowable deflection limits under full payload?
In accordance with European Standard EN 15512 and FEM 10.2.02 codes for industrial steel racking, horizontal structural load-bearing beams are engineered so that maximum vertical elastic deflection does not exceed L/200 (where L is the clear span distance between upright columns). For sensitive automated crane interfaces, we engineer systems to an even more stringent L/300 tolerance to maintain precision robotic vacuum cup seal alignment.
Can existing sheet metal racks be relocated and certified in a new facility?
Yes. As full-service structural racking specialists, we provide complete engineering relocation protocols. This encompasses laser non-destructive testing (NDT) to inspect structural straightness, component tagging, certified disassembly, secure transit, re-anchoring to new slab specifications, and final load testing with updated as-built engineering documentation and load warning plaques.
What corrosion protection and surface coatings are standard for export?
All structural steel sections undergo multi-stage shot blasting to Sa 2.5 cleanliness, followed by automated iron/zinc phosphate immersion to eliminate surface mill scale. We then apply an electrostatically baked polyester powder coating at 80–120 microns, offering outstanding scratch resistance and endurance against humidity in C3 and C4 industrial atmospheres. Hot-dip galvanization is also available for severe marine or outdoor raw material yards.

Plan Your High-Density Sheet Storage Facility

Connect directly with our structural engineering team. Submit your warehouse floor plan, maximum sheet sheet dimensions, unit pack weights, and handling preferences for a complimentary 3D CAD layout, capacity optimization study, and firm export quotation.
