High-Performance Mobile Pallet Racking Systems
Explore eight core structural configurations engineered for heavy-duty industrial warehouses, automated supply lines, and high-cube cold storage environments.

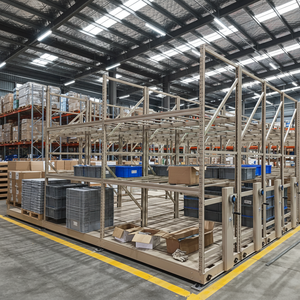

Heavy Duty Pallet Rack Mobile Steel Shelf Racks Warehouse
- Up to 24,000 kg movable chassis capacity
- Motorized bogies with soft-start drive control
- Dual optical anti-collision photobeam sensors

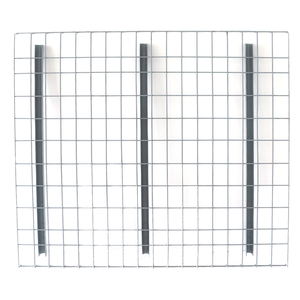

Heavy-Duty U Support Punch Deck Pallet Racking Corrosion-Resistant Wire Mesh
- Heavy-gauge galvanized zinc wire decking
- U-channel reinforces non-standard pallets
- Certified fire sprinkler water penetration

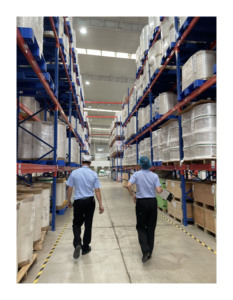

Heavy Duty Mobile Shelving Pallet Rack Selective Boltless System
- Modular boltless beam-to-frame locking tabs
- Integrated aisle lighting synchronization
- Cold storage operational rating down to -30°C

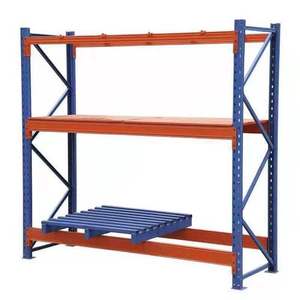

Adjustable Pallet Rack Warehouse Storage Heavy Duty Shelving System
- 50mm and 75mm pitch level adjustability
- High-yield structural Q235B & Q355B steel
- Thermo-epoxy high humidity powder coating

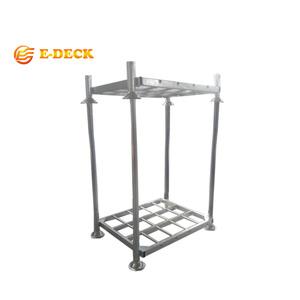

Heavy-Duty Warehouse 2000lb Capacity Single Pallet Mobile Rack
- Compact motorized base for intermediate stock
- In-aisle manual release safety trip wire
- Surface-mounted or flush rail embedment
Warehouse Equipment Heavy Duty Pallet Rack Storage Racking
- Engineered to EN 15512 and FEM 10.2.07 codes
- Integrated column guards & guide rail anchors
- Centralized PLC panel with SCADA integration
Foldable Stacking Turnover Rack Fabric Metal Movable Stacking Shelf
- Collapsible 4-post stacking frame architecture
- Flexible post-pallet mobile turnover storage
- Customizable cradle deck for roll products & tires
Heavy Duty Mobile Steel Pallet Racking System Rolling Storage Unit
- Continuous multi-bay powered rolling carriage
- Frequency inverted drive motors prevent SKU tip
- Radio remote & forklift console activation
Motorized Mobile Racking (MOVO) Mechanics & Slab Dynamics
Why modern logistics engineers prioritize electrically driven high-density mobile racking over conventional static aisles.
Motorized mobile pallet racking—often designated in intralogistics engineering as MOVO or Powered Mobile Racking (PMR)—represents the gold standard for high-density pallet buffering where floor real estate costs dictate extreme volumetric efficiency. Unlike static selective racking that demands a permanent dedicated access aisle for every two pallet runs (consuming over 55% of warehouse footprint in circulation space alone), a motorized mobile system mounts structural upright frames onto electronically synchronized, heavy-duty wheeled carriages that glide effortlessly across flush-embedded floor guide tracks.
When an operator requests access via forklift radio frequency terminal, WMS API, or onboard push-button console, only the requested aisle opens smoothly with variable frequency drive (VFD) ramps. By collapsing redundant dead-space aisles into a single, dynamically allocated working aisle, industrial facilities routinely liberate 80% to 100% additional storage capacity within an identical building envelope, or slash new warehouse construction footprint by up to 45%.
From a civil and structural engineering standpoint, specifying mobile racking demands strict adherence to dynamic point-load parameters and floor slab flatness tolerances. Per DIN 18202 (Class 3 or Class 4) and EN 15620, slab deflection must be strictly controlled to prevent carriage binding, excessive wheel flange friction, or drive motor amperage spikes. Guide rails, whether dual-flanged or flat-running with center rollers, are typically anchored using non-shrink epoxy grout beds with sub-millimeter leveling adjustments before casting final floor topping slabs.
Top 10 Mobile Pallet Racking Manufacturers & Suppliers
A rigorous engineering benchmark of the global leaders delivering heavy-duty mobile racking bases, precision carriages, and integrated automated control software.
ILS Middle East / ILOK Storage
Renowned for turnkey load-engineered pallet racking systems designed to FEM 10.2.07 and EN 15512 standards. Features specialized high-temperature thermoset epoxy powder coatings specifically formulated for humid, coastal, and harsh climate operations across UAE, Saudi Arabia, Qatar, and Africa. Delivers full lifecycle project execution from precision slab survey to certified installation and relocation.
SSI Schaefer
The pioneer behind the widely adopted MOVO heavy-duty mobile racking system. SSI Schaefer combines modular base chassis with sophisticated PLC control units, multi-tiered safety optical tripwires, and intelligent aisle lighting interfaces. Exceptionally dominant in mega-scale refrigerated cold stores and automated frozen distribution centers across Europe and North America.
Dexion / Gonvarri
Dexion’s heavy-duty mobile pallet racking configurations are engineered for extreme durability, utilizing custom steel box beam constructions and multi-wheel bogies that ensure smooth travel over extended distances. Their systems feature intelligent night-park positions to optimize cold-air recirculation throughout frozen goods blocks.
Mecalux
Markets the Movirack series, which simplifies high-density pallet storage by utilizing distributed electromechanical drive motors synchronized across high-speed bus communication lines. Mecalux’s software seamlessly couples with their proprietary Easy WMS, enabling automated aisle opening triggered directly by incoming reach truck telemetry.
Stow Group
Stow Mobile engineering focuses on standardized structural framing, providing high load capacities (up to 800 metric tons per mobile train) combined with Stow Atlas pallet shuttle compatibility. Their systems feature low-profile guide tracks that minimize forklift tire degradation and simplify civil casting requirements during brownfield warehouse retrofits.
Jungheinrich AG
Delivers total intralogistics alignment where mobile pallet racking carriages are electronically tied to Jungheinrich auto-guided reach trucks and automated navigation beacons. Offers exceptional functional safety architectures including optical continuous light grids, floor scanners, and automated safety restart protocols for busy logistics hubs.
BITO-Lagertechnik Bittmann
Specializes in versatile mobile carriage solutions serving both heavy industrial pallet loads and high-density archive/parts storage. Bito's mobile bases are celebrated for rigid torsion-resistant beam fabrication and precision wheel axle assemblies, ensuring zero wheel-slip and exceptionally quiet acoustic decibel output during transit.
AR Racking (Grupo Arania)
Known for world-class structural steel rolling mills and advanced seismic modeling. AR Racking’s mobile base systems (AR Mobile) incorporate finite-element stress analysis to withstand earth tremors without racking displacement, making them the preferred structural choice for seismic risk zones across South America, Southern Europe, and Asia.
Frazier Industrial
The definitive North American manufacturer of 100% hot-rolled structural steel channel racking. Frazier adapts its ultra-rugged structural uprights to motorized mobile chassis, engineered to absorb heavy impact collisions from aggressive forklift maneuvers in heavy manufacturing, cold store food distribution, and chemical facilities.
Daifuku Co., Ltd.
A global material handling superpower offering high-tier motorized mobile rack systems integrated with stacker cranes, AS/RS subsystems, and plant-floor robotics. Daifuku systems are distinguished by unyielding mechatronic quality, fail-safe optical safety interlocks, and full IoT condition-monitoring telemetry.
Engineering Evaluation: Top Mobile Racking Manufacturers
Direct comparison of structural payloads, safety architectures, control logic, and operating temperature profiles.
| Manufacturer | Structural Standard | Max Carriage Load | Safety Interlocking | Cold Store Rating | Key Regional Strength |
|---|---|---|---|---|---|
| ILS Middle East / ILOK | FEM 10.2.07 / EN 15512 | Up to 800 Metric Tons | Photoelectric & Floor Laser Scanners | Down to -30°C (Hot-Climate Anti-Rust) | UAE, Saudi Arabia, GCC & Africa |
| SSI Schaefer | DIN / EN / FEM | Up to 1,000 Metric Tons | Optical Barrier & Proximity Scanners | Down to -35°C (MOVO Series) | DACH, Western Europe, North America |
| Dexion / Gonvarri | EN 15095 / EN 15512 | Up to 800 Metric Tons | Safety Trip Wire & Infrared Light Curtains | Down to -30°C (Night-Park Mode) | Northern & Central Europe, Australia |
| Mecalux | FEM / R-Mark | Up to 600 Metric Tons | Aisle Laser Barriers & Emergency Stops | Down to -25°C | Southern Europe, Latin America, USA |
| Stow Group | EN 15512 / ISO 9001 | Up to 800 Metric Tons | Dual-Safety Optoelectronic Curtain | Down to -30°C (Atlas Shuttle Compatible) | Pan-European Logistics Corridors |
| Frazier Industrial | R-Mark / AISC (USA) | Custom Heavy Structural | Mechanical Bumpers & Sensor Array | Down to -40°C (Heavy Channel Steel) | USA, Canada, Mexico |
Why Enterprise Buyers Trust Our Turnkey Racking Capabilities
Racking structural integrity depends on precise engineering, certified components, and installation compliance. Our full-lifecycle approach removes catastrophic warehouse risk.
Calculated, Not Estimated
Every upright section, base carriage, and beam gauge is dimensioned using rigorous structural calculations per FEM 10.2.07 and EN 15512. We calculate actual dead weights, seismic dynamic loads, and floor slab reactions rather than relying on generic catalog charts.
Precision CAD & Flue Modeling
Our intralogistics engineers produce millimeter-accurate CAD layouts optimizing forklift turning radii, transverse flue spaces, and NFPA / civil defense sprinkler apertures, maximizing capacity while ensuring uncompromised safe reach-truck ergonomics.
Harsh Climate Powder Coating
Engineered to resist the severe heat, humidity, and salt-laden air of the GCC and African coastal regions. Our multi-stage pretreatment and electrostatic thermo-epoxy powder application guarantees superior corrosion, peel, and chip resistance across decades of operation.
Certified Handover & Relocation
Direct installation by certified in-house crews equipped with precision laser levels and calibrated torque wrenches. Projects conclude with official load capacity rating plaques, as-built documentation, operator safety training, and available warehouse relocation services.
Future Procurement & Technology Trends in Mobile Racking
Anticipate the market transformations driving capital expenditure decisions for automated, high-density warehousing through 2030.
AGV / AMR Native Interlocking
Procurement is rapidly shifting toward autonomous operations where Mobile Pallet Racking systems communicate directly with Autonomous Mobile Robots (AMRs) and Automated Guided Reach Trucks (AGVs). Through ultra-reliable industrial wireless protocols (Wi-Fi 6 and private 5G), the mobile carriage opens the requested aisle autonomously as the automated vehicle approaches, eliminating operator wait time and maximizing battery operating cycles.
Cold-Chain Thermal Energy Optimization
Rising power tariffs in cold storage logistics make mobile racking an imperative. Because chilled or frozen air represents up to 60% of operating overhead, mobile racking cuts cooled air cubic meters by nearly half per pallet stored. Upcoming designs feature automated "night-purge" parking profiles, spreading mobile carriages evenly across the slab during off-peak hours to optimize uniform air circulation and thermal conservation.
IIoT Condition Monitoring & Strain Gauges
Modern mobile carriages are evolving into smart, connected devices. Integrated with vibration sensors, current-draw monitors, and optical wheel-deflection encoders, the mobile chassis communicates real-time diagnostic telemetry to cloud-based predictive maintenance dashboards. Facility managers are alerted to slab settlement, rail obstruction, or motor gearbox fatigue weeks before an unpredicted operational stoppage occurs.
Green Steel & Modular Circularity
Corporate ESG directives are reshaping structural steel tenders. Buyers increasingly demand Environmental Product Declarations (EPDs) certifying that structural rack uprights and cold-formed carriage channels originate from low-carbon electric arc furnaces (EAF). Furthermore, modular chassis systems with boltless, repositionable frames allow complete dismantling, relocation, and adaptive repurposing as corporate logistics real estate evolves.
Frequently Asked Questions on Mobile Pallet Racking
Essential guidance from storage structural engineers to assist procurement heads, warehouse managers, and project directors in evaluating capital investments.
How does mobile pallet racking compare to standard selective and drive-in racking?
What specific floor slab tolerances are mandatory for mobile pallet racking?
What safety mechanisms prevent personnel injury during mobile carriage travel?
How does the system operate during power outages or electrical brownouts?
Can an existing mobile pallet racking installation be relocated or extended?
What is the typical Return on Investment (ROI) timeline for mobile racking?
Request a Tailored Layout & Capacity Simulation
Submit your warehouse floor dimensions, clear ceiling heights, and pallet load specs. Our senior storage systems engineers will deliver an optimized CAD layout, dynamic load study, and budgetary proposal within 48 hours.
