Heavy-Duty Workshop Cabinets & Industrial Storage Solutions
Engineered for mission-critical manufacturing facilities, aerospace maintenance hangers, automotive assembly bays, and logistics centers. Each unit is precision laser-cut and finished with industrial electrostatic powder coating.
Parcel Delivery Locker Digital Storage Box Steel Automated Locker Metal Electronic Cabinet Face Recognition Smart Lockers
Equipped with AI facial verification, contactless scanning, and IoT network telemetry. Provides strict accountability for tooling checkout and secure parcel distribution.
- Security Protocol: Biometric / RFID
- Material Gauge: 1.2mm SPCC Steel
- Access Speed: < 0.8 Seconds
Adjustable Heavy Duty Steel Cantilever Bracket Stable Pipe Rack for Industrial Storage New for Manufacturing Plant Restaurant
Column-and-arm architecture engineered without front obstruction, tailored for bars, heavy steel tubes, extruded profiles, and raw manufacturing inventory.
- Arm Capacity: Up to 1,500kg / arm
- Pitch Adjustment: 100mm Increments
- Finish: Epoxy Polyester Powder
Durable Anti-Rust Heavy Duty Steel Electric Sheet Metal Rack Drawer Type Storage System Automated Retrieval Warehouse Shelving
Motorized 100% pull-out drawer system designed for laser cutting workshops storing dense plate steel. Saves 70% floor space with overhead crane compatibility.
- Drawer Rating: 3,000kg / level
- Drive Mechanism: Electric Pushbutton
- Extension: 100% Full Access
Electronic Commercial 5 Layer Steel Storage Shelving Racks Heavy Duty Warehouse Shelves Boltless Rivet Rack Easy Assemble
Interlocking rivet beam setup with zero nuts or bolts needed. Ideal for tool accessories, hardware bin storage, and workshop maintenance supplies.
- Shelf Uniform Load: 350kg / shelf
- Upright Thickness: 1.5mm Cold Steel
- Assembly Time: 10 Mins / Bay
Wall-mounted Nordic Region Heart-shaped Wine Rack Multi-tier Storage Shelf for bar and Home Dining Room Display
Architectural precision welding utilizing cold-drawn steel wire and tube. Dual-purpose application spanning commercial display and hospitality retail fittings.
- Mounting: Heavy-Duty Wall Anchor
- Surface Coating: Anti-Oxidation Matte
- Weld Type: TIG / Robotic Shielded
High Quality 500kg Steel Storage Racks 5-Layer Adjustable Pallet Racking Heavy Duty Warehouse Shelf System Factory Hot Sale
Standardized Euro & ISO pallet-compatible selective racking. Certified beam safety clips prevent accidental dislodgement during rapid reach-truck loading cycles.
- Bay Capacity: 4,000kg Gross
- Compliance: FEM / EN 15512
- Beam Section: Box-Step Dual Beam

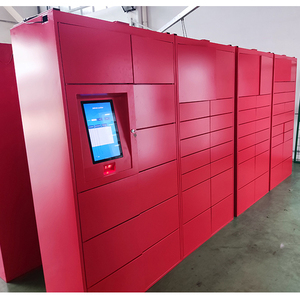

Outdoor Intelligent Parcel Delivery Lockers , Steel Luggage Secure Electronic Parcel Lockers
Galvanized zinc-plated steel housing with sunshade canopy and rain-gutter channel design. Built for harsh outdoor plant entrances and shared industrial compounds.
- Protection Class: IP65 Rain/Dust Proof
- Lock Type: Electric Solenoid 12V
- Display: Sunlight Readable LCD
Agricultural Water Pipe Storage Rack Garden Heavy Duty Hand Crank Hose Reel Spraying Pipe Winding Steel Frame 100m Long Life
Rugged tubular steel chassis equipped with high-torque crank bearing and brass swivel connector. Organizes industrial fluid, air, or high-pressure wash hoses safely.
- Winding Capacity: 100m (3/4" Hose)
- Frame: Seamless Steel Tube
- Corrosion Proof: Hot-Dip Primer + Powder
Selecting an Industrial Workshop Tool Cabinet Exporter: Structural Integrity, Load Ratings & Metallurgy
In modern manufacturing ecosystems, aerospace maintenance, repair, and operations (MRO), and advanced automotive facilities, tool storage equipment is no longer considered passive metal furniture. It is a critical component of lean manufacturing (5S methodologies), foreign object damage (FOD) mitigation, technician ergonomics, and automated inventory reconciliation. Sourcing industrial-grade workshop tool cabinets from international manufacturers and global exporters requires deep mechanical evaluation beyond cosmetic powder coating and catalog marketing claims.
Key Engineering Insight: Static vs. Dynamic Deflection Thresholds
A professional workshop cabinet rated for 1,000 kg static capacity can experience disastrous drawer catastrophic failure if the dynamic slide rating under cyclical fatigue is not engineered with at least a 1.5 safety factor. Industrial procurement teams must demand 50,000-cycle ball-bearing slide certifications under full load capacity per drawer.
The metallurgical benchmark for high-performance tool cabinets begins with SPCC cold-rolled carbon steel sheet. Premium exporters utilize CNC fiber laser cutting systems and robotic press brakes to guarantee sheet-metal bending tolerances within ±0.15 mm. Crucially, the internal frame must feature double-wall steel construction with continuous seam or spot welding rather than pop-riveted perimeter frames. This torsion-resistant box design ensures that even when loaded with high-density steel dies, torque wrenches, and pneumatic impact drivers, the outer cabinet shell maintains square geometry, preventing drawer binding or interlock failure.
| Evaluation Parameter | Commercial Grade (Retail) | Industrial Tier-1 Exporter Spec | Verification Standard |
|---|---|---|---|
| Steel Sheet Gauge | 0.6 mm – 0.8 mm Commercial Sheet | 1.2 mm Body / 2.0 mm Frame SPCC | ISO 9001 / Mill Cert |
| Drawer Slide Capacity | 25 kg – 35 kg Single Extension | 80 kg – 200 kg Full-Extension Heavy Duty | DIN 68858 Tested |
| Safety Interlock | Single Cam Cylinder Lock only | 1-Drawer-At-A-Time Anti-Tilt Mechanism | OSHA 1910 Compliant |
| Pre-Treatment & Coating | Single-wash rapid dip < 40μm | Iron Phosphatizing + 80-120μm Powder | ASTM B117 (1,000 hrs) |
| Caster Wheel Assemblies | Rubber tread with plastic hub | Polyurethane on Cast Iron core (1,200kg) | EN 12532 Tested |
Another critical performance vector is the central anti-tilt interlock linkage. In multi-drawer mobile tool trolleys and stationary high-density modular cabinets, opening multiple heavily loaded drawers simultaneously drastically shifts the center of gravity beyond the chassis tipping plane. Certified exporters integrate mechanical interlocking lever bars that lock every remaining drawer the moment one drawer is extended by 25 mm. This fundamental safety architecture prevents catastrophic tip-overs that cause severe shop-floor injuries and costly tool breakage.
Global Procurement & Technological Trends in Industrial Tool Storage
How automation, connected IoT telemetry, strict ESD safety protocols, and eco-sustainable supply chains are transforming heavy-duty workshop tool cabinetry procurement worldwide.
1. IoT-Enabled RFID Tool Tracking
Next-generation aerospace and defense maintenance operations are migrating to smart tool cabinets equipped with ultra-high frequency (UHF) RFID antennas. Every calibrated tool, torque socket, and gauge is logged automatically upon drawer closure, preventing accidental Foreign Object Damage (FOD) in jet turbines and automotive power units.
2. Static-Dissipative (ESD) Workstations
With electric vehicle (EV) battery manufacturing and aerospace microelectronics taking center stage, workshop tool cabinets now require conductive dissipative epoxy finishes (surface resistivity between 10^6 and 10^9 ohms/sq) with grounding terminals to eliminate micro-arcing damage to sensitive PCB sub-assemblies.
3. Lean 5S High-Density Modular Customization
Procurement directors are specifying OEM cabinet makers offering pre-engineered CNC two-tone EVA closed-cell foam inlays and adjustable aluminum drawer partition matrices. Clear visual management ensures immediate identification of missing tooling within 3 seconds, boosting overall shop-floor equipment effectiveness.
4. Automated Sheet & Die Storage Integration
Standalone small toolboxes are giving way to unified heavy-material retrieval workstations. Combining vertical motorized sheet metal drawer towers with adjacent CNC punch tool cabinets allows facilities to double usable cubic storage without expanding square footage footprints.
5. Circular Steel & Zero-VOC Powder Coatings
Global supply chain compliance mandates low-carbon footprint manufacturing. Modern exporters utilize closed-loop electrostatic powder coating booths with over 98% powder reclamation, zero VOC emissions, and certified recycled-content steel without sacrificing structural tensile strength.
6. Extreme Climatic & Maritime Durability
For workshop cabinets shipped to coastal hubs, mines, and tropical operations, multi-stage pre-treatments incorporating nano-ceramic conversion coatings before polyester electrostatic curing have become an indispensable procurement requirement to prevent under-film corrosion creeping.
Engineering Discipline, Load-Tested Manufacturing & Global Delivery
Drawing on decades of industrial storage fabrication, load-engineered designs conforming to FEM/EN principles, and turnkey export execution across the GCC, Africa, Europe, and the Americas.
Calculated Capacities
Every upright, shelf beam, and slide rail is verified through FEA stress modeling and physical destructive testing. Safe working loads (SWL) are clearly embossed on all factory equipment.
FEM & EN 15512 Standards
Fabrication processes conform rigorously to European and international structural steel storage norms, ensuring flawless compliance during site safety audits and ISO certifications.
Hot-Climate Powder Coating
Automated thermoset polyester powder lines ensure complete encapsulation with 80-120 micron dry film thickness, resisting humidity, salt air, chemical grease, and high operating ambient temperatures.
CAD Turnkey Engineering
From initial shop floor layout drawings to 3D BIM integration and custom drawer partitioning, our engineering team supplies full manufacturing CAD layouts within 24 to 48 hours.
Technical Sourcing & Manufacturing Answers
Critical engineering considerations, material certifications, and export shipping practices for workshop tool cabinet buyers.
