Engineered Reel & Heavy Industrial Racking Systems
Custom-fabricated solutions covering electrical cable drums, industrial wire spools, steel coils, and structural multi-tier warehouse systems designed for seamless integration.

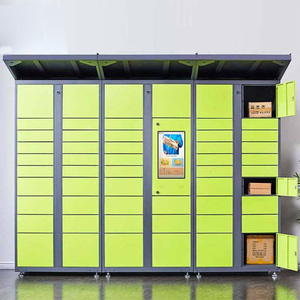

Smart Automated Electronic Storage & Secure Locker System
Industrial-grade steel smart cabinet with biometrics and optical sensor control, integrated into distribution facilities for tooling and critical parts inventory.

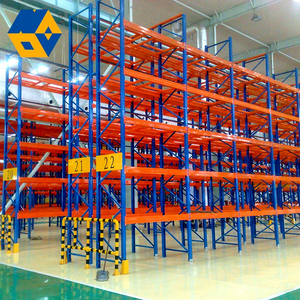

Heavy Duty Adjustable Selective Pallet Racking Automation System
Engineered for dense reel and pallet staging with 50mm/75mm beam pitch adjustments, tested for high dynamic capacity under heavy duty logistics environments.

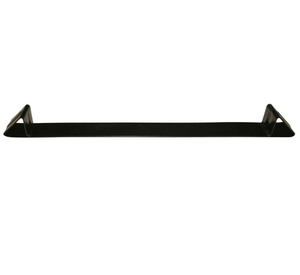

33-Inch Heavy-Duty Flatbed Steel Coil & Reel Transport Cradle
Engineered transit cradle fabricated from cold-formed channel steel to stabilize spools and cylindrical coils during freight handling and intermodal flatbed hauling.
Boltless Multi-Tier Metal Shelving with Adjustable Spindle Arms
Modular dual-purpose storage framing accommodating small to mid-size wire spools, extrusions, and continuous roll goods with rapid tool-free assembly.
Double-Stacking High-Density Industrial Fabric & Cable Reel Rack
Reinforced box-beam construction engineered for roll core support, offering 100% immediate FIFO selectivity and anti-dislodgement safety locks on every level.

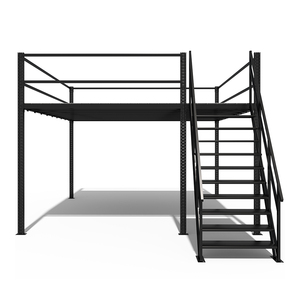

Rack-Supported Heavy-Duty Industrial Mezzanine Floor System
Doubles usable cubic storage space by mounting reel racks directly on lower levels with catwalks and staging platforms engineered up to 1,500 kg/sqm.

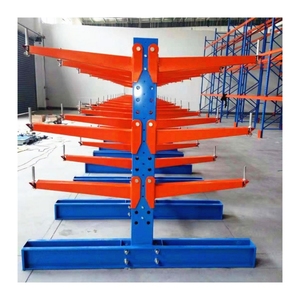

Heavy-Duty Cantilever Coil & Axle-Mounted Drum Rack
Column-and-arm architecture with zero frontal upright obstruction, custom fitted with curved axle cradles for easy overhead crane loading of oversized cable reels.

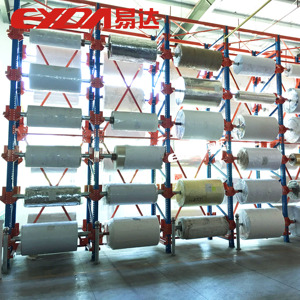

Multi-Tier Anti-Corrosion Heavy Steel Coil & Reel Cantilever
Electrostatic thermoset epoxy powder coated framing with tapered column arms designed to neutralize bending deflection under heavy concentrated coil loads.
Engineered Precision: The Benchmark of China's Premier Spool Racking Exporter
Cable spool racks demand rigorous structural calculations due to point loading, dynamic unwinding vibration, and high rotational torque. Here is why global Tier-1 EPC contractors and logistics operators rely on our manufacturing infrastructure.
Structural FEA Load Modeling
Every bay profile undergoes finite element analysis (FEA) to simulate concentrated axle point loads and dynamic unspooling fatigue. Upright steel gauges are custom-engineered from 1.8mm up to 3.5mm thick Q355B structural steel.
FEM & EN 15512 Compliance
Designed strictly to European FEM 10.2.02 and EN 15512 standards, as well as American RMI (Rack Manufacturers Institute) provisions. We ensure beam deflection ratios under full operating loads remain strictly within the conservative 1/200 limit.
Severe Climate Powder Coating
Treated through an automated 7-stage phosphating and degreasing line before electrostatic polyester thermoset powder application (60–80µm). Resists corrosion, high ambient humidity, salt spray, and extreme desert temperatures.
Turnkey Export Packaging
Components are precision strapped, corner-protected with heavy-gauge corrugated profiles, and moisture-sealed in heat-shrink poly wrap. Bundled to maximize 40ft HQ container cube efficiency while preventing ocean freight transit abrasion.
Structural Dynamics & Load Architecture in Cable Spool Racking
Standard warehouse pallet racks are designed for uniformly distributed static loads (UDL). In contrast, cable spool racking subjects the frame to concentrated live point loads, torsional axle rotation, and pulling tensions during manual or motorized dispensing.
Standard Pallet Racking vs. Engineered Industrial Cable Spool Racks
| Structural Parameter | Standard Pallet Racks (UDL) | Engineered Cable Spool Racks | Safety & Compliance Implication |
|---|---|---|---|
| Load Distribution Pattern | Uniformly Distributed Load across twin beams | Concentrated two-point loads via heavy axle shafts | Requires thickened axle saddles and gusseted beam connectors to avert web buckling. |
| Dynamic Unwinding Force | Negligible (Static holding only) | Substantial radial friction & pulling shear tension | Axle retention lockpins prevent the spindle shaft from lifting out during pay-off operations. |
| Deflection Limits (FEM / RMI) | Span / 200 maximum allowable deflection | Span / 300 to Span / 400 for free spool spinning | Excessive sag pinches the spool flange against the side uprights, stopping rotation. |
| Upright Column Gauge | 1.5mm – 2.0mm standard cold-formed steel | 2.0mm – 3.25mm Q355B high-tensile structural steel | Absorbs localized impact energy during forklift axle loading and unseating cycles. |
| Spindle Axle Materials | Not Applicable | Solid cold-drawn carbon steel or thick wall seamless pipe (Sch 80+) | Prevents permanent spindle bow when carrying heavy copper spools up to 4,000 kg each. |
Axle Spindle Sizing & Flange Clearance Formula
When designing custom spool bays, structural engineers must ensure proper radial clearance. Spool flange diameter ($D_f$) dictates the minimum vertical beam pitch ($H_p$). The engineering rule of thumb applies:
Furthermore, side clearance between the outer edge of the reel flange and the vertical column must maintain at least 75mm to prevent hazardous binding during high-speed cable payout.
Seismic & Overturning Stability Anchoring
Because cable spools place high center-of-gravity masses across vertical heights, spool rack frames experience significant overturning moments. Our engineering standards integrate:
- Dual heavy-duty M12/M16 chemical or wedge anchors per baseplate.
- Overhead top-tie bracing beams connecting back-to-back bays.
- Reinforced heavy column wrap protectors guarding aisles against forklift strike impacts.
Future Procurement Trends in Industrial Cable & Reel Storage (2025–2030)
Global mega-trends in power grid modernisation, offshore wind development, EV infrastructure, and hyperscale data centers are redefining spool rack procurement specifications.
AGV/AMR Autonomous Reel Retrieval Interfaces
Procurement specifications are shifting toward automated high-bay spool warehousing. Modern cable spool racks now incorporate precision laser-guided docking saddles, allowing automated guided vehicles (AGVs) to autonomously insert and extract 2,500kg reels without manual forklift intervention, boosting pick speeds by 300%.
Integrated IoT Load & Inventory Length Sensing
Future-proof installations feature integrated piezoresistive load cells beneath the axle cradle. By communicating via wireless industrial mesh networks directly to the warehouse management system (WMS), facility managers track real-time remaining cable length based on spool weight delta, reducing waste in cut-to-length orders.
Ultra-Low Embodied Carbon Steel & C5-M Finishes
Multinational EPCs demand environmental product declarations (EPD) alongside ISO 14064 verification. Procurement trends heavily favor suppliers utilizing electric arc furnace (EAF) steel and duplex marine coatings (hot-dip galvanization + epoxy powder) to withstand offshore wind staging environments for over 25 years.
How Global Buyers Procure Custom Spool Racks from China
A structured, risk-free engineering and supply framework ensuring dimensional precision, load certification, and smooth sea freight delivery.
Spool Matrix Audit
Submit drum weights, flange diameters, core widths, axle hole diameters, and total bay capacity requirements.
FEA & CAD Layout
Our structural engineers deliver 2D/3D CAD layouts, aisle turning radius models, and calculated safety factors within 48 hours.
Prototype & Proof Test
Pre-production physical static load testing at 1.5x safe working load (SWL) verified with calibrated strain gauge telemetry.
Precision Roll-Forming
Continuous CNC roll-forming, laser spindle hole slotting, robotic welding, and automated thermoset powder bake finishing.
Export & Site Support
Pre-sorted sea container loading, full bill of materials tagging, stamped load notices, and live remote installation QA.
Frequently Asked Questions by Industrial Sourcing Managers
Clear, uncompromised answers covering structural safety, manufacturing tolerances, container logistics, and site operations.
Ready to Engineer Your High-Density Cable Storage System?
Connect directly with our structural engineering and export division. Receive an accurate CAD layout, load capacity calculation, and FOB/CIF wholesale quote tailored to your project schedule.
